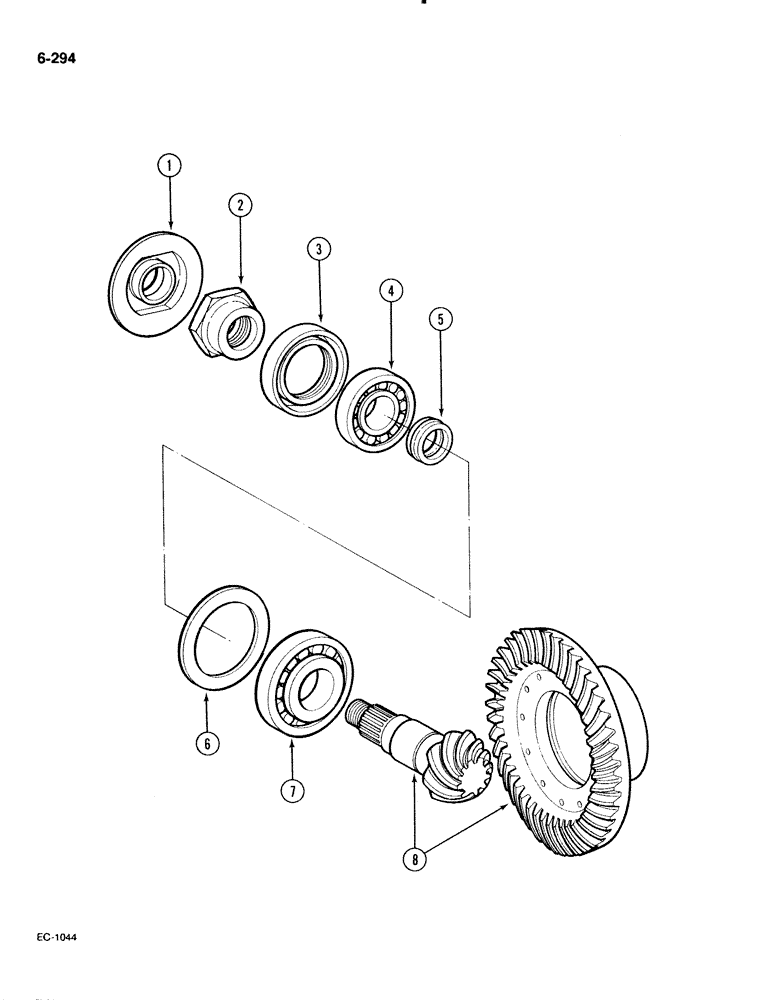

Запчасти Case IH 885 (6-294) - DRIVE ASSEMBLY, 4 WHEEL DRIVE, APL-330 FRONT AXLE (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

DRIVE - APL-330 front axle, Includes: Ref. 1 - 8

1шт.

1

81398C1

PLATE, LOCKING

PLATE - lock

1шт.

2

81397C1

NUT

1шт.

3

81396C1

SEAL

SEAL - shaft

1шт.

4

530740R91

BEARING ASSY,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - roller

1шт.

5

81380C1

RING

- 11.0 mm

1шт.

5

81381C1

RING

- 11.1 mm

1шт.

5

81382C1

RING

- 11.2 mm

1шт.

5

81383C1

RING

- 11.3 mm

1шт.

5

81384C1

RING

- 11.4 mm

1шт.

5

81385C1

RING

- 11.5 mm

1шт.

5

81386C1

RING

- 11.6 mm

1шт.

5

81387C1

RING

- 11.7 mm

1шт.

5

81388C1

RING

- 11.8 mm

1шт.

5

81389C1

RING

- 11.9 mm

1шт.

5

81390C1

RING

- 12.0 mm

1шт.

5

81391C1

RING

- 12.1 mm

1шт.

5

81392C1

RING

- 12.2 mm

1шт.

5

81393C1

RING

- 12.3 mm

1шт.

5

81394C1

RING

- 12.4 mm

1шт.

6

81367C1

SHIM

DISK - 0.90 mm

1шт.

6

81368C1

WASHER

DISK - 0.95 mm

1шт.

6

81369C1

SHIM

DISK - 1.00 mm

1шт.

6

81370C1

SHIM

DISK - 1.05 mm

1шт.

6

81371C1

SHIM

DISK - 1.10 mm

1шт.

6

81372C1

SHIM

DISK - 1.15 mm

1шт.

6

81373C1

SHIM

DISK - 1.20 mm

1шт.

6

81374C1

SHIM

DISK - 1.25 mm

1шт.

6

81375C1

SHIM

DISK - 1.30 mm

1шт.

6

81376C1

SHIM

DISK - 1.35 mm

1шт.

6

81377C1

SHIM

DISK - 1.40 mm

1шт.

6

81378C1

SHIM

DISK - 1.45 mm

1шт.

6

81366C1

WASHER

DISK - 1.50 mm

1шт.

7

503097C91

BEARING ASSY,1.4067" ID x 2.8448" OD x 1"

BEARING - roller

1шт.

503097C91 use 131312C1 cup and 503098C91 bearing.

1шт.

8

81365C1

GEAR SET

SET - bevel gear and shaft

1шт.
