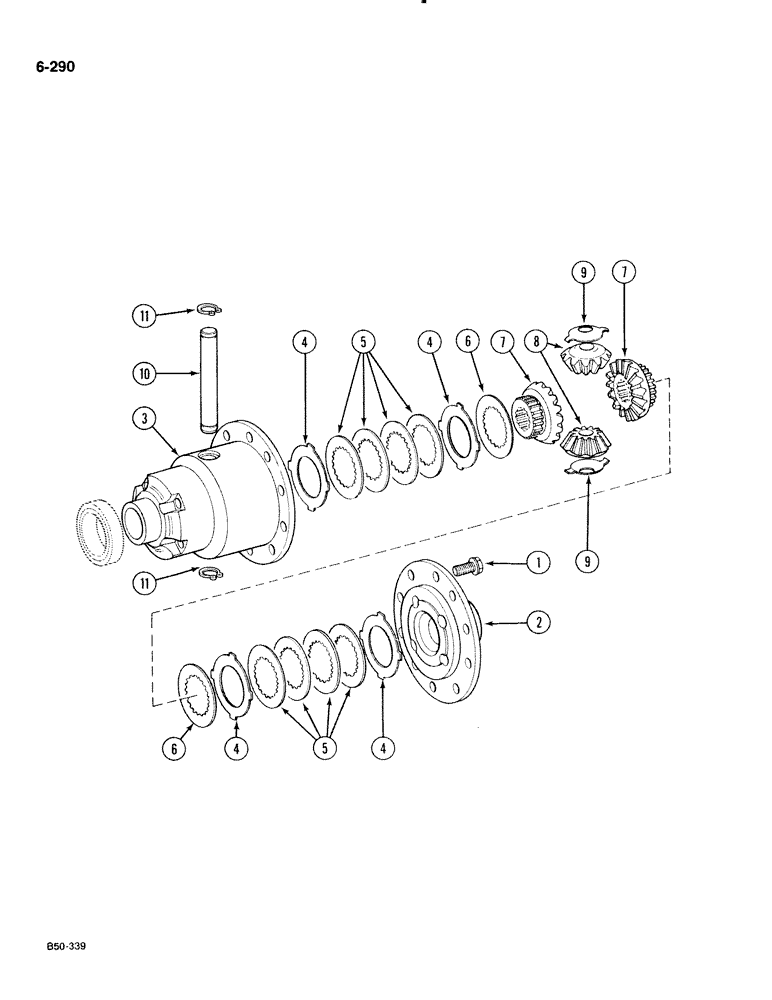

Запчасти Case IH 885 (6-290) - DIFFERENTIAL, 4 WHEEL DRIVE (06) - POWER TRAIN

1

3230285R1

BOLT

BOLT - hex lock, M10 x 22 mm

10шт.

2

3230282R1

HOUSING

CASE - differential (2 halves), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

4

3223459R1

SHIM

PLATE - driven

10шт.

5

3223460R1

DRIVE PLATE

PLATE - drive

8шт.

6

3223463R1

FIN

PLATE - thrust, 2.8 mm

2шт.

6

3223462R1

PLATE, THRUST

PLATE - thrust, 2.9 mm

2шт.

6

3223461R1

WASHER

PLATE - thrust, 3.0 mm

2шт.

7

3230283R1

GEAR

- differential side

2шт.

8

3230284R1

GEAR

- pinion, differential

2шт.

9

3147204R1

WASHER, THRUST

WASHER - thrust

2шт.

10

3216569R1

LARGE PIN

SHAFT - differential

1шт.

11

3139039R1

RING, SNAP

RING - snap

2шт.
