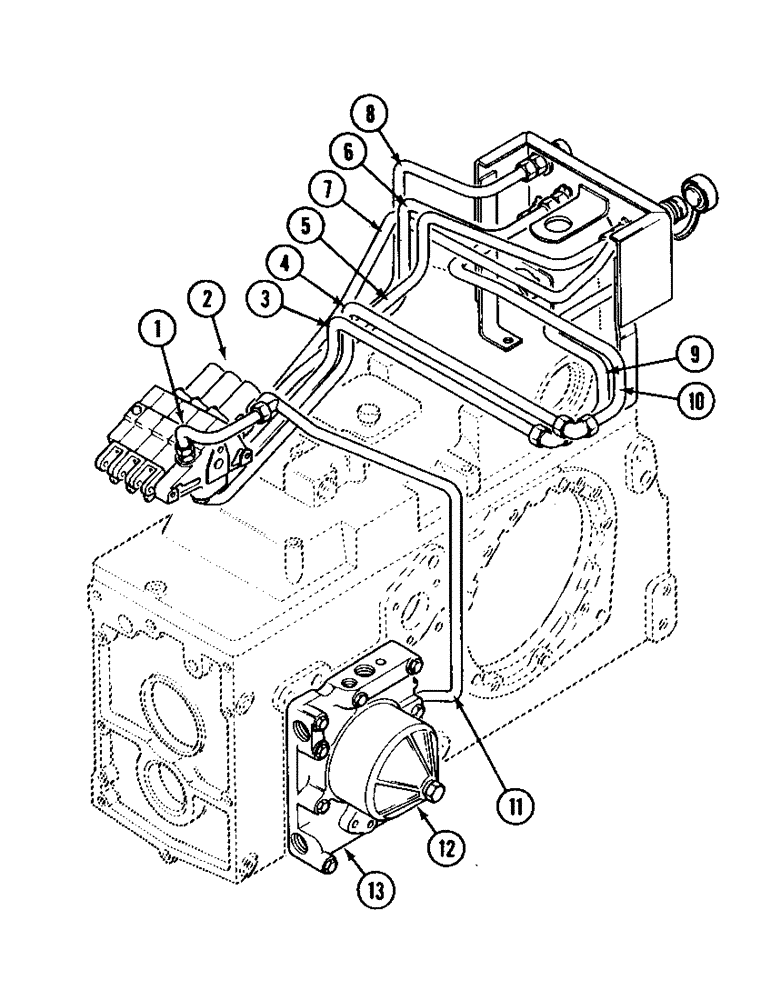

Запчасти Case IH 885 (1-018) - PICTORIAL INDEX, AUXILIARY VALVES AND PIPING, WITH CAB (00) - PICTORIAL INDEX

1

TUBE - auxiliary valve return, Page 8-393

1шт.

2

VALVE - double acting, Pages 8-393, 403, 405

1шт.

3

TUBE - 1st bank, rear port to coupling, Page 8-403

1шт.

4

TUBE - 1st bank, front port to coupling, Page 8-403

1шт.

5

TUBE - 2nd bank, rear port to coupling, Page 8-403

1шт.

6

TUBE - 2nd bank, front port to coupling, Page 8-403

1шт.

7

TUBE - 3rd bank, rear port to coupling, Page 8-403

1шт.

8

TUBE - 3rd bank, front port to coupling, Page 8-403

1шт.

9

TUBE - coupling to 1st bank rear port, Page 8-403

1шт.

10

TUBE - multiple control valve by-pass, Page 8-369

1шт.

12

FILTER - oil, hydraulic, Page 8-361

1шт.

13

VALVE - multiple control, Pages 8-367, 371

1шт.
