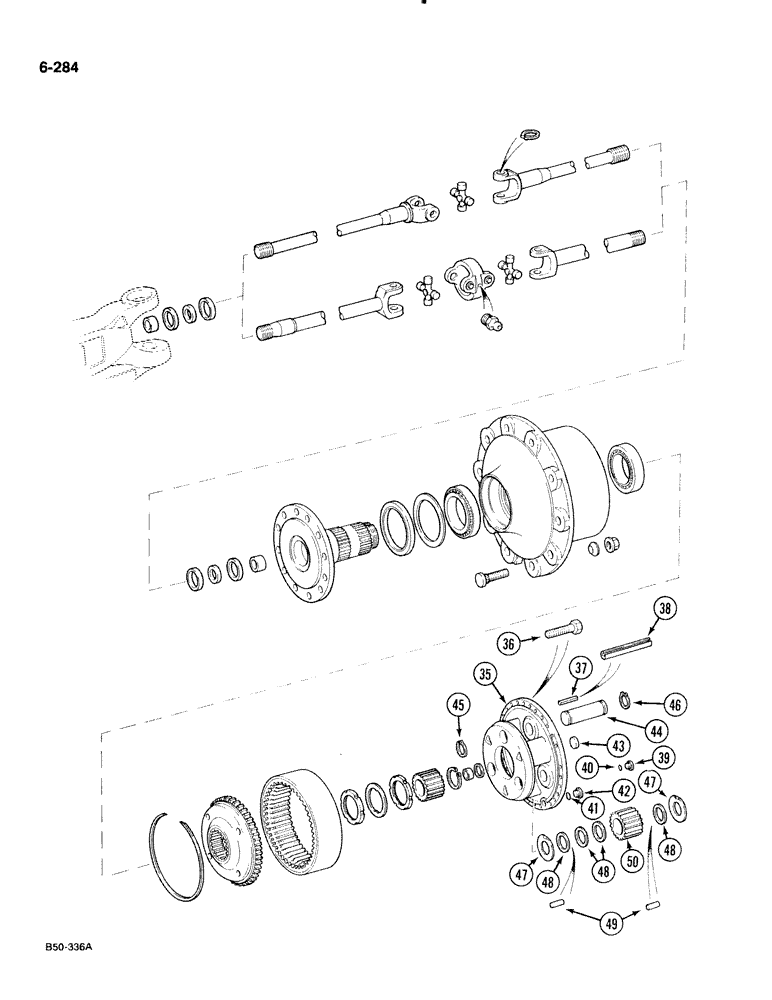

Запчасти Case IH 885 (6-284) - WHEEL HUB AND DRIVE, FRONT, 4 WHEEL DRIVE PRIOR TO P.I.N. 18001 (CONTD) (06) - POWER TRAIN

35

3230259R1

PINION CARRIER

CARRIER - planetary

2шт.

36

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M8 x 30 mm, class 8.8

54шт.

37

932840R1

LOCK PIN,M8 x 26, Slotted

PIN - slotted spring, 8 x 26 mm

8шт.

38

932742R1

LOCK PIN,M5 x 26, Slotted

PIN - slotted spring, 5 x 26 mm

8шт.

39

934651R1

PLUG,Hex Soc, M18 x 1.5

2шт.

40

933222R1

SEALING WASHER,M18 x 22 x 1.5

2шт.

41

933709R1

PACKING RING

RING - sealing, 24 x 29 mm

2шт.

42

933718R1

PLUG,Hex, M24 x 1.5

2шт.

43

933565R1

PLUG,M14, Conical

- cup

2шт.

44

3230260R1

SHAFT

- planet gear

6шт.

45

717072R1

SNAP RING,M22, Ext

RING - retaining, external, 24 x 1.2 mm

6шт.

46

933255R1

CIRCLIP,Ext, M20.2

RING - retaining, external, 22 mm

6шт.

47

3146668R1

THRUST WASHER

WASHER - thrust

12шт.

48

3146667R1

WASHER

- special

12шт.

49

3230262R1

NEEDLE BEARING

BEARING - needle

32шт.

50

3230261R1

GEAR

- planet, 26 teeth

6шт.
