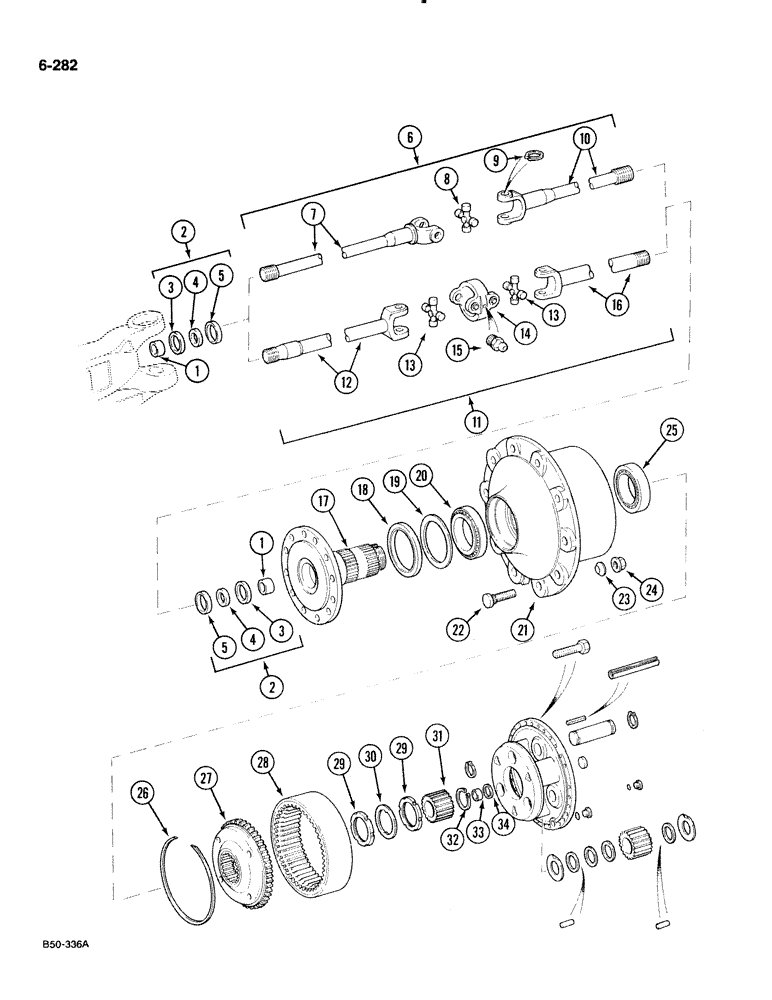

Запчасти Case IH 885 (6-282) - WHEEL HUB AND DRIVE, FRONT, 4 WHEEL DRIVE PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

1

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

Replaces: 3126585R1

4шт.

2

3405555R1

SEAL

- oil, complete, Includes: Ref. 3 thru 5

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

5

NSS

NOT SOLD SEPARAT

HOLDER - oil seal

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - single U-joint (Front axle 1500229C92), Includes: Ref. 7 thru 10

2шт.

7

1502267C1

SHAFT

- right

1шт.

7

1502265C1

DRIVE SHAFT

SHAFT - left

1шт.

8

3230277R1

SPIDER ASSY.

SPIDER - complete, including bearings

1шт.

9

3223197R1

RING, SNAP

RING - retaining, 27 x 1.3 mm

4шт.

10

3216599R91

SHAFT

- hub

1шт.

11

82241C91

SHAFT

- drive, right, double U-joint (Front axle 82240C91), Includes: Ref. 12 thru 16

1шт.

11

82242C91

SHAFT

- drive, left, double U-joint (Front axle 82240C91), Includes: Ref. 12 thru 16

1шт.

12

89654C1

FORK

- long drive shaft, right

1шт.

12

89656C1

FORK

- long drive shaft, left

1шт.

13

89653C1

U-JOINT SPIDER

JOINT - spider

2шт.

14

89652C1

JOINT

- center

1шт.

15

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

1шт.

16

89655C1

FORK

- drive shaft, short

1шт.

17

1502272C1

HUB CARRIER

CARRIER - hub, See Figure 5-200

2шт.

18

3216594R1

OIL SEAL

SEAL - oil

2шт.

19

3216593R1

WASHER

WASHER - special

2шт.

20

3230271R91

TAPERED BEARING

BEARING - inner

2шт.

21

3230280R1

HUB

- wheel

2шт.

22

3230876R1

BOLT,Wheel, Serr, M18 x 1.5 x 61 mm

- wheel

16шт.

23

712824R1

LOCK WASHER,M18.5, Spring

WASHER - lock

16шт.

24

933800R1

NUT

- wheel mounting

16шт.

25

533727R1

BEARING, CUP

BEARING - cup

2шт.

25

533726R91

BEARING

- cone

2шт.

26

3146675R1

RING, SNAP

RING - snap

2шт.

27

3230266R1

RING CARRIER

CARRIER - ring gear, 72 teeth

2шт.

28

3230267R1

GEAR, RING

GEAR - ring, 72 teeth

2шт.

29

3230269R1

NUT

- adjusting

4шт.

30

3230270R1

DISC

RING - locking

2шт.

31

3230265R1

GEAR

- sun, 18 teeth

2шт.

32

933074R1

SNAP RING,M28, Ext

RING - retaining, external, 25.48 mm

2шт.

33

3147209R2

PLUG

PIN - thrust

2шт.

34

3147212R1

WASHER

SHIM - 0.3 mm

1шт.

34

3147211R1

WASHER

SHIM - 0.5 mm

1шт.

34

3147210R1

SHIM

- 1.0 mm

1шт.
