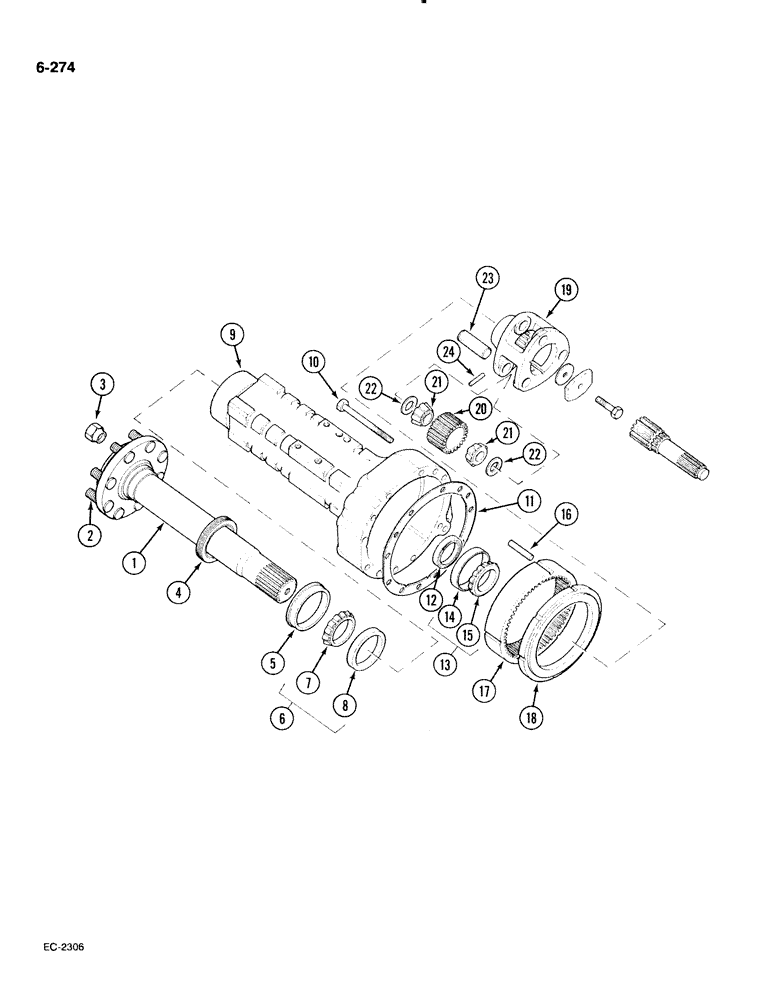

Запчасти Case IH 885 (6-274) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

1

527353R11

AXLE, REAR

AXLE - rear (Bar type, not illustrated)

2шт.

535862R1 Wear Sleeve on Axle 527353R11, bar type, not shown

1шт.

1

404345R13

HALF SHAFT

AXLE rear, flange type, Includes: Ref. 2

2шт.

1

1349237C1

HALF SHAFT

AXLE rear, flange type, Includes: Ref. 2

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT rear wheel, flange type axle

8шт.

2

1349235C1

WHEEL BOLT,Knurled, M16 x 1.5 x 55mm, Cl 10.9, Full Thd

BOLT metric

8шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- rear wheel mounting, 1349236C1 subs to 3047575R3

16шт.

425-2910 will replace the 3047575R3 nut on all future wheel applications for Doncaster tractors. 3047575R3 is for chamfered wheel holes. 425-2910 is for straight cut wheels.

1шт.

4

105471C1

OIL SEAL

SEAL - oil, rear axle, outer, 3.618 ID / 4.795 OD

2шт.

4

105470C1

OIL SEAL

SEAL oil, 3.055 ID / 4.340 OD

2шт.

5

399796R1

SLEEVE

- wear

2шт.

6

ST2130

BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"

BEARING - roller, rear axle outer, Includes: Ref. 7 and 8

2шт.

6

384695R91

BEARING ASSY

- roller (Optional to ST2130), Includes: Ref. 7 and 8

2шт.

6

384734R91

BEARING ASSY,4.7812" ID x 3.0625" OD x 0.9688, 0.6875"

BEARING - roller (Optional to ST2130), Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

CONE - bearing assembly

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - bearing assembly

1шт.

9

93939C1

AXLE CARRIER

CARRIER - rear axle, left (Flange type axle)

1шт.

9

93941C1

AXLE CARRIER

CARRIER - rear axle, left (Bar type axle)

1шт.

9

93940C1

AXLE CARRIER

CARRIER - rear axle, right (Flange type axle)

1шт.

9

93942C1

AXLE CARRIER

CARRIER - rear axle, right (Bar type axle)

1шт.

10

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

- hex, 5/8 NC x 4-1/4 inch, grade 8 (Flange type axle)

22шт.

10

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8 (Bar type axle)

20шт.

10

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

- hex, 5/8 NC x 6-1/4 inch, grade 8 (Bar type axle)

2шт.

11

399762R3

GASKET

- rear axle carrier, Serial Range: -18001

2шт.

11

B501074

LOCTITE

GASKET - liquid, 160 ml, Start Serial: 18001

1шт.

12

399798R91

OIL SEAL

SEAL - oil, rear axle inner

2шт.

13

972467R91

BEARING ASSY

- roller, rear axle inner, Includes: Ref. 14 and 15

2шт.

13

399799R91

BEARING ASSY,2.75" ID x 4.4375" OD x 1, 0.75"

BEARING - roller (Optional to 972467R91), Includes: Ref. 14 and 15

2шт.

13

1500912C91

TAPERED BEARING,3.12" ID x 4.4375" OD x 0.75"

BEARING - roller (Optional to 972467R91), Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

CUP - bearing assembly

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing assembly

1шт.

16

529686R1

DOWEL

PIN - dowel

6шт.

17

535317R1

GEAR, RING

GEAR - ring, 66 teeth

2шт.

18

114620C1

RING,260mm OD

- brake outer disc

2шт.

18

1502369C1

RING

- brake outer disc, Serial Range: (Optional-114620C1)

2шт.

19

114613C1

CARRIER

- planet gear

2шт.

20

66128C2

PINION

GEAR - planet, 25 teeth

6шт.

21

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - cone, planet gear

12шт.

21

1502179C91

ROLLER BEARING

BEARING - cone, Serial Range: (Optional-50212VA)

12шт.

22

65421C1

SHIM KIT

KIT - service, planet gear shims, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.049 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.056 inch

1шт.

23

399812R1

SHAFT

PIN - planet shaft

6шт.

24

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.
