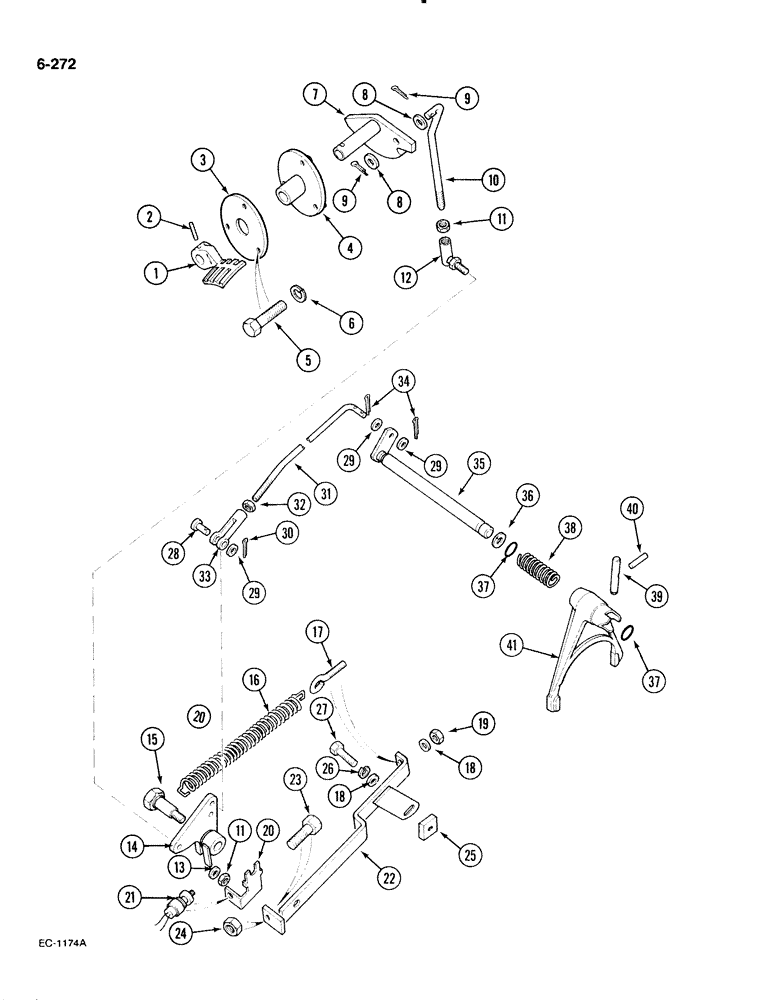

Запчасти Case IH 885 (6-272) - DIFFERENTIAL LOCK, WITH CAB (06) - POWER TRAIN

1

3399270R1

PEDAL

- differential lock

1шт.

2

30797R1

PIN,M6 x 36, Coiled

- coiled spring, 6 x 36 mm

1шт.

3

3399266R1

GASKET

1шт.

4

98030C1

SUPPORT

- differential lock pedal

1шт.

5

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm, class 8.8

3шт.

6

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

3шт.

7

1500056C1

CAM

- differential lock

1шт.

8

933348R1

WASHER,M10 x 20 x 2

- flat, 10.8 x 21 x 2 mm

2шт.

9

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

2шт.

10

1500059C2

ROD

- vertical link, differential lock

1шт.

11

30284R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

2шт.

12

3129345R1

BALL JOINT

JOINT - ball, M10

1шт.

13

933965R1

LOCK WASHER,M10

1шт.

14

1500060C2

LEVER

BELLCRANK - differential lock

1шт.

15

1500071C1

BOLT,Pivot, Hex, 9/16" - 12 x 57.50mm

- Bellcrank pivot

1шт.

16

3121849R2

SPRING

- return, differential lock pedal

1шт.

17

1502164C1

EYEBOLT,3/8" - 16 x 66mm

1шт.

18

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

19

120377

NUT,3/8" - 16, Gr 5

1шт.

20

1500079C1

SUPPORT

BRACKET - switch mounting

1шт.

20

1537124C1

SUPPORT

BRACKET

1шт.

21

3147137R1

SWITCH

SWITCH - differential lock, See Figure 4-116

1шт.

21

1332724C1

SWITCH

1шт.

Use 1332725C1 nut for application.

1шт.

22

1500072C2

BRACKET

differential lock return spring

1шт.

22

1537212C1

SUPPORT

BRACKET

1шт.

23

1500078C1

BOLT,Hex, M6 x 40mm, Cl 8.8

1шт.

24

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

25

1330751C1

SPACER

- differential lock

1шт.

26

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

28

NLS

NO LONGER SERVICED

PIN - clevis, 3/8 x 1-1/16 inch

1шт.

29

Q1597

WASHER

- plain, 0.406 x 0.734 x 0.056 inch

3шт.

30

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

31

1500075C91

ROD ASSY.

ROD - complete, differential lock pedal, Includes: Ref. 32 and 33

1шт.

32

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

33

753984R1

CLEVIS,3/8" - 16

- rod end

1шт.

34

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

35

87927C1

SHAFT

- differential lock

1шт.

36

Q3501

WASHER

- plain, 0.781 x 1.25 x 0.054 inch

1шт.

37

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 x 3/4 inch, class 5

2шт.

38

527878R1

SPRING

- actuating, differential lock fork

1шт.

39

1500388C2

PIN

- differential lock, cam actuating

1шт.

40

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

41

1500386C1

FORK

- differential lock shaft

1шт.
