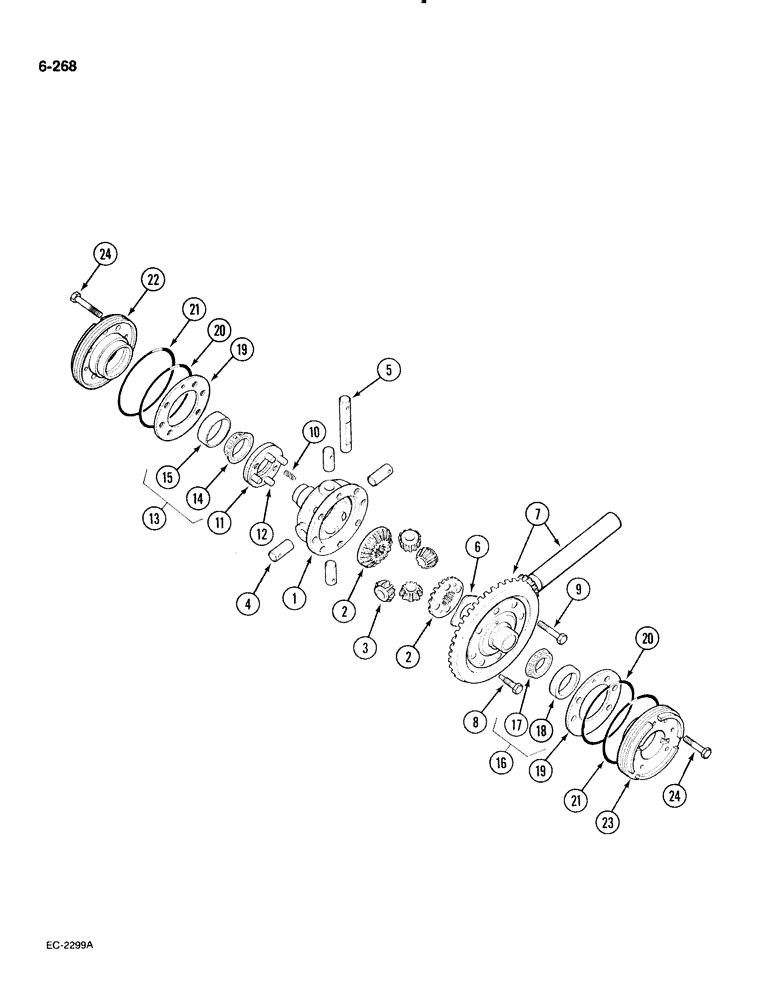

Запчасти Case IH 885 (6-268) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER - differential

1шт.

2

404336R1

PINION

GEAR - bevel, differential, 20 teeth

2шт.

3

399776R1

PINION

GEAR - differential pinion, 10 teeth

4шт.

4

399804R1

PIN

- differential pinion

4шт.

5

(Not used in this application)

1шт.

6

399778R1

THRUST WASHER

- thrust, differential bevel gear

1шт.

7

94252C1

GEAR, BEVEL

SET - bevel gear and shaft, matched, 11/52 teeth, Start Serial: 18001

1шт.

7

1954037C1

GEAR

SET - bevel gear and shaft, matched, 11/52 teeth, Serial Range: -18001

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT - dowel, hex, 1/2 NC x 2-1/8 inch

4шт.

9

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

10

400867R1

SPRING

- differential lock

2шт.

11

399764R11

LOCKING RING

RING - differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

- coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

- roller, differential, right, Includes: Ref. 14 and 15

1шт.

13

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

- roller (Optional to 105504H), Includes: Ref. 14 and 15

1шт.

13

1500909C91

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.1 mm

- roller (Optional to 105504H), Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING - cone

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - cup

1шт.

16

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

- roller, differential, left, Includes: Ref. 17 and 18

1шт.

16

399766R91

ROLLER BEARING

BEARING - roller (Optional to 105502H), Includes: Ref. 17 and 18

1шт.

16

1502182C91

TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm

- roller (Optional to 105502H), Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - cone

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING - cup

1шт.

19

65419C1

BEARING CARRIER

KIT shims, differential bearing carrier, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM 0.003 INCH

3шт.

NSS

NOT SOLD SEPARAT

SHIM 0.007 INCH

3шт.

NSS

NOT SOLD SEPARAT

SHIM 0.012 INCH

3шт.

NSS

NOT SOLD SEPARAT

SHIM 0.030 INCH

3шт.

20

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 x 7-7/8 inch

2шт.

289506R1 O-ring slides over the step on the backside (inside) step of the differential carrier. In some instances this 0-ring has a tendency to roll off when installing the carrier. If this happens there are two methods that will help but, do not do this until you have gone through the shimming procedures & are ready to install the carrier: 1. Apply a small amount of grease to the O-ring to help retain it. or 2. With clean surfaces (free of grease and oil) put a small amount of super glue at the 12 - 3

1шт.

21

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

- 8-1/4 x 8-1/2 inch, class 6

2шт.

22

399770R2

BEARING CARRIER

CARRIER - differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER - differential bearing, left

1шт.

24

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

8шт.
