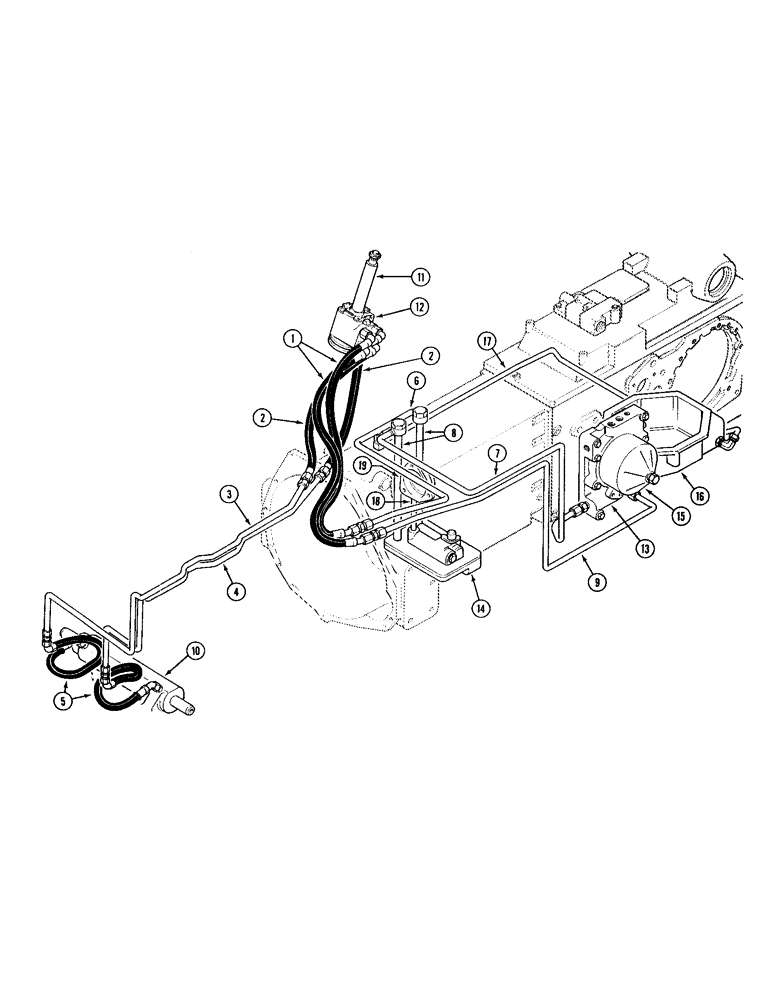

Запчасти Case IH 885 (1-016) - PICTORIAL INDEX, STEERING LINES (00) - PICTORIAL INDEX

1

HOSE - steering, pressure/return (With cab) (P.I.N. 18001 and after), Page 5-163

1шт.

1

TUBE - steering, pressure/return (Without cab) (P.I.N. 18001 and after), Page 5-161

1шт.

1

TUBE - steering, pressure/return (Prior to P.I.N. 18001), Page 5-157

1шт.

2

HOSE - steering, right/left cylinder (P.I.N. 18001 and after), Page 5-159

1шт.

2

TUBE - steering, right/left cylinder (Prior to P.I.N. 18001), Page 5-157

1шт.

3

TUBE - steering, front right (P.I.N. 18001 and after), Page 5-159

1шт.

3

TUBE - steering, front right (Prior to P.I.N. 1881), Page 5-157

1шт.

4

TUBE - steering, front left (P.I.N. 18001 and after), Page 5-159

1шт.

4

TUBE - steering, front left (Prior to P.I.N. 18001), Page 5-157

1шт.

5

HOSE - steering cylinders Pages 5-165, 167

1шт.

6

TUBE - 2 speed power shift, inlet, Page 8-163

1шт.

7

TUBE - 2 speed power shift, outlet, Page 5-163

1шт.

8

TUBE - steering pump pressure (P.I.N. 18001 and after), Pages 8-377, 379

1шт.

8

TUBE - steering pump pressure (Prior to P.I.N. 18001), Page 8-375

1шт.

9

TUBE - power steering pressure (P.I.N. 18001 and after), Pages 5-161, 163

1шт.

9

TUBE - power steering pressure (Prior to P.I.N. 18001), Page 5-157

1шт.

10

CYLINDER - steering, Pages 5-165, 167, 169, 171, 173, 175

1шт.

11

SHAFT - steering (With cab), Page 5-155

1шт.

11

SHAFT - steering (Without cab), Page 5-153

1шт.

12

VALVE - steering (With cab) (P.I.N. 18001 and after), Pages 5-155, 159, 161, 179

1шт.

12

VALVE - steering (Without cab) (P.I.N. 18001 and after), Pages 5-153, 159, 163, 179

1шт.

12

VALVE - steering (Prior to P.I.N. 18001), Pages 5-153, 157, 177

1шт.

13

VALVE - multiple control, Pages 8-367, 371

1шт.

14

VALVE - pressure regulator (2 speed power shift), Pages 8-377, 381

1шт.

14

VALVE - pressure regulator (4 wheel drive), Pages 8-379, 381

1шт.

15

FILTER - oil, hydraulic, Page 8-361

1шт.

16

BOX - transfer gear, Page 6-305

1шт.

17

TUBE - transfer gear box, Pages 5-161, 163

1шт.

18

TUBE - oil inlet (P.I.N. 18001 and after), Pages 8-377, 379

1шт.

18

TUBE - oil inlet (Prior to P.I.N. 18001), Page 8-375

1шт.

19

CAGE - IPTO and clutch retainer, Page 6-241

1шт.
