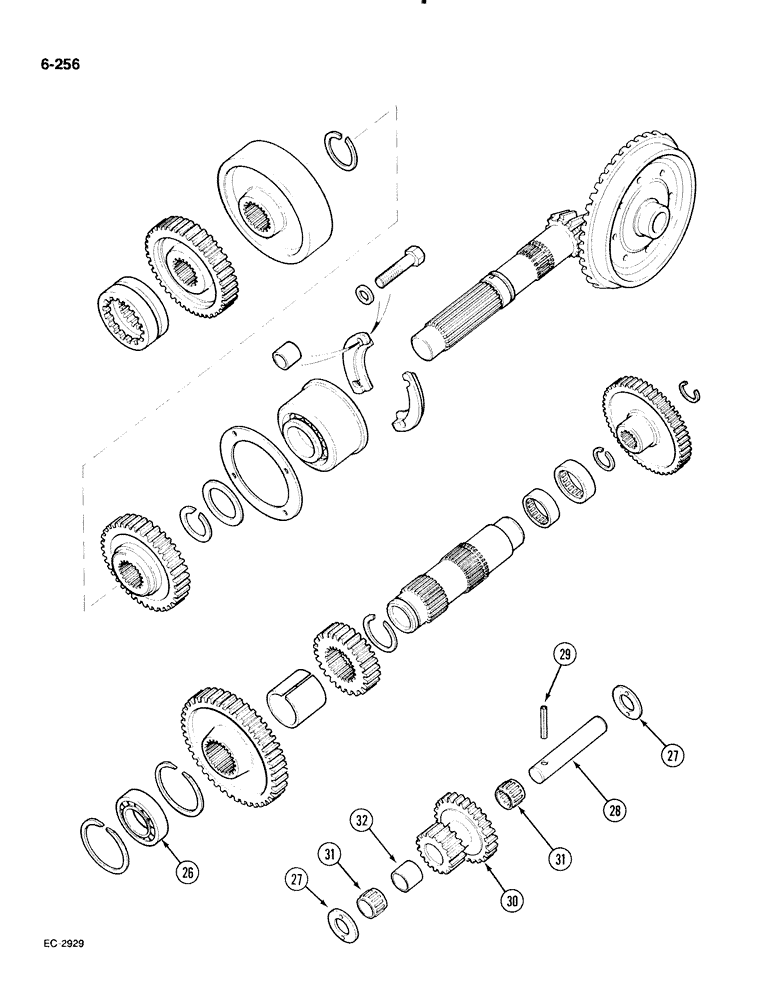

Запчасти Case IH 885 (6-256) - RANGE TRANSMISSION, IN REAR FRAME (CONTD) (06) - POWER TRAIN

26

3125123R91

BEARING, ROLLER,49.994 mm ID x 80.0285 mm OD x 15.94 mm

BEARING - roller, transmission countershaft

1шт.

26

1201744C91

ROLLER BEARING

BEARING - roller, Serial Range: (Optional-3125123R91)

1шт.

27

3112846R1

THRUST WASHER

WASHER - thrust, idler bearing

2шт.

28

399838R3

SHAFT

- reverse idler

1шт.

29

366281R1

PIN,3/8" x 2", Coiled

1шт.

30

70298C1

PINION

GEAR - reverse idler, 20/24 teeth

1шт.

For gear 70298C1, use bearings 3113041R91.

1шт.

30

1975490C1

GEAR

- reverse idler, 20/24 teeth, Replaces: 70298C1

1шт.

For gear 1975490C1, use bearings 3069773R91.

1шт.

31

3113041R91

ROLLER CAGE BEARING

- needle, 1.25 inch OD, reverse idler gear

2шт.

For gear 70298C1, use bearings 3113041R91.

1шт.

31

3112844R91

BEARING, NEEDLE

BEARING - needle, 1.25 inch OD, Serial Range: (Optional-3113041R91)

2шт.

31

3069773R91

NEEDLE BEARING

BEARING - needle, 1.313 inch OD, reverse idler gear

2шт.

For gear 1975490C1, use bearings 3069773R91.

1шт.

31

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle, 1.313 inch OD (Optional to 3069773R91)

2шт.

32

3112845R1

SPACER

- idler bearing

1шт.
