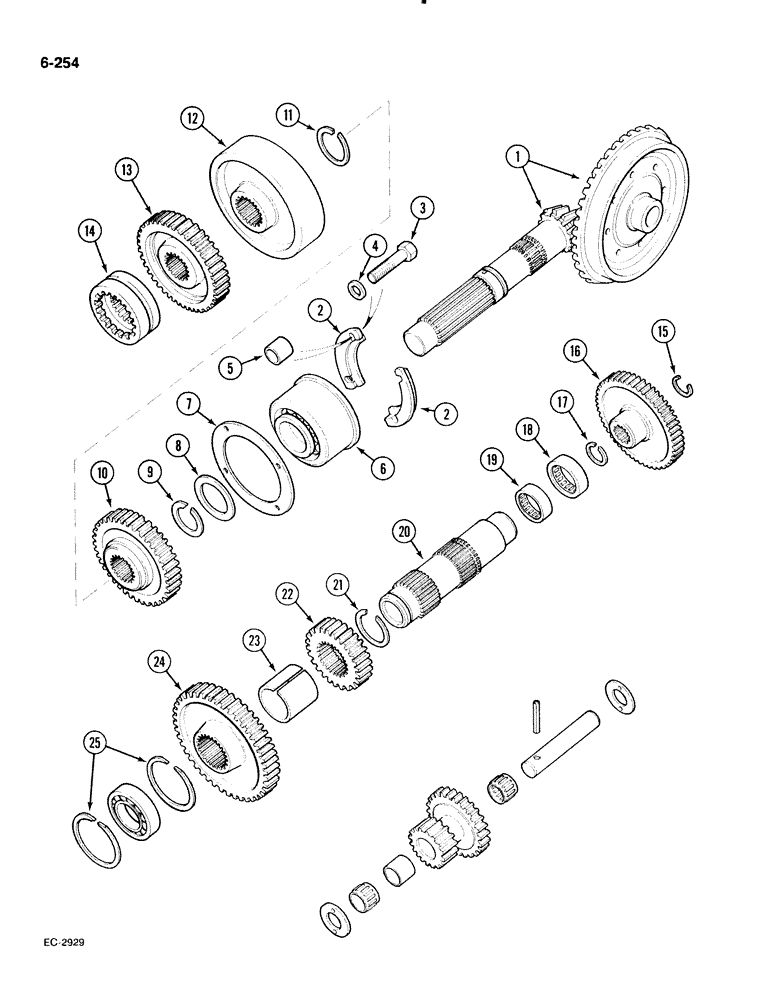

Запчасти Case IH 885 (6-254) - RANGE TRANSMISSION, IN REAR FRAME (06) - POWER TRAIN

1

94252C1

GEAR, BEVEL

SET - bevel gear and shaft, matched, 11/52 teeth, Start Serial: 18001

1шт.

1

1954037C1

GEAR

SET - bevel gear and shaft, matched, 11/52 teeth, Serial Range: -18001

1шт.

2

83299C1

RETAINER

- main shaft bearing, 4 wheel drive, Start Serial: 18001

2шт.

2

65784C2

RETAINER

- main shaft bearing

1шт.

3

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

4

65787C1

WASHER

- bearing, retainer bolt

3шт.

5

94323C1

BUSHING

- bearing retainer, 4 wheel drive, Start Serial: 18001

1шт.

6

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

- main shaft, 4 wheel drive, Start Serial: 18001

1шт.

6

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

- main shaft

1шт.

7

65423C1

SHIM KIT

KIT - shim, main shaft bearing cage, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.004 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

5шт.

8

65788C1

WASHER

- thrust, bevel pinion shaft

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, main shaft bearing

1шт.

Refer to the 42 series parts book for snap rings with different thicknesses.

1шт.

10

82354C1

GEAR

- drive, 38 teeth, 4 wheel drive, Start Serial: 18001

1шт.

11

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM - bevel pinion, 0.084 inch, 4 wheel drive, Start Serial: 18001

1шт.

12

66074C1

HUB

- brake drum, 2 wheel drive, See Figure 7-356, Serial Range: -18001

1шт.

12

399828R1

HUB

- brake drum, 4 wheel drive, See Figure 7-356, Serial Range: -18001

1шт.

13

1286470C1

GEAR

- sliding, forward/reverse, 42 teeth

1шт.

14

1277137C1

COLLAR ASSY.

COLLAR - high speed shift

1шт.

15

533266R1

RING, SNAP

RING - retaining, external, 0.98 inch

1шт.

16

94404C1

PINION

GEAR - pump drive, 55 teeth

1шт.

17

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING - needle pump drive gear

1шт.

18

527747R91

BEARING, NEEDLE

BEARING - needle, Serial Range: (Optional-362251R91)

1шт.

19

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

- needle, Start Serial: 18001

1шт.

19

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING - needle, Serial Range: -18001

1шт.

20

94403C1

SHAFT

- counter, range transmission, Start Serial: 18001

1шт.

20

404096R1

SHAFT

- counter, range transmission, Serial Range: -18001

1шт.

21

398264R1

SNAP RING,#215, 2.026", Ext

RING - retaining, external, 2.026 inch

1шт.

22

103150C1

PINION

GEAR - driving, lo range, 24 teeth

1шт.

23

399835R1

BUSHING

- countershaft gears

1шт.

24

404097R1

GEAR

- constant mesh, 46 teeth

1шт.

25

399832R1

RING, SNAP

RING - retaining

1шт.
