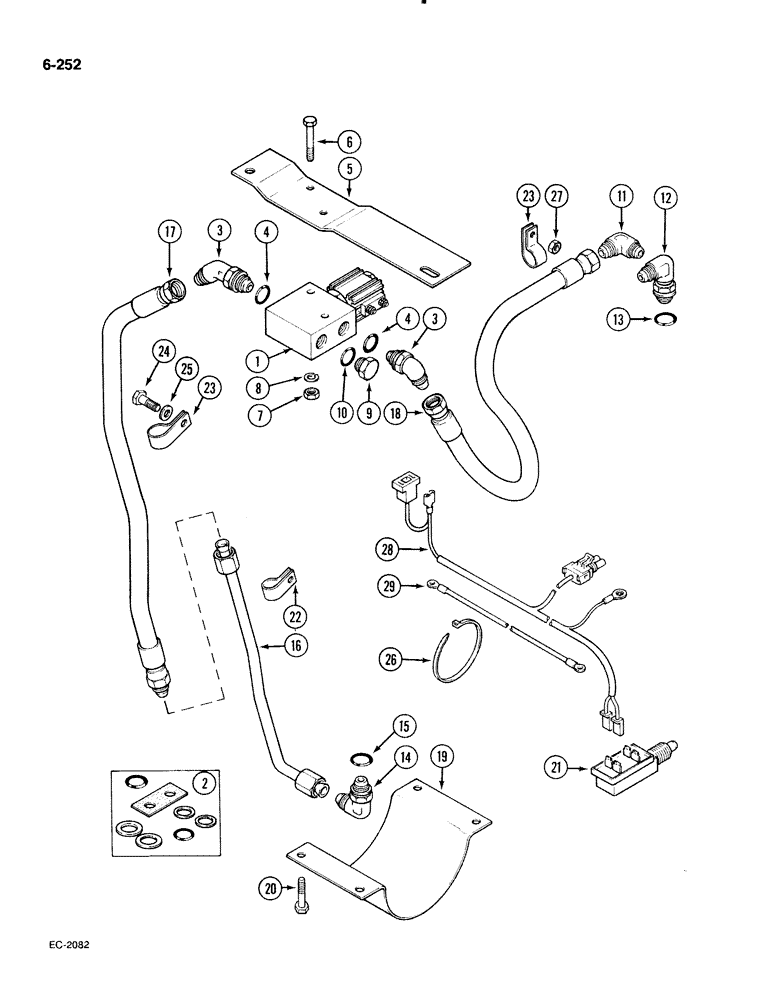

Запчасти Case IH 885 (6-252) - TORQUE AMPLIFIER DUMP VALVE (06) - POWER TRAIN

98808C91

KIT

- service, torque amplifier dump valve, Includes: Ref. 1 - 29

1шт.

1

1272538C91

VALVE

- block and solenoid assembly, Includes: Ref. 2

1шт.

2

1272698C1

PACKAGE

KIT - seals

1шт.

3

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 45 deg, adjustable, 3/8 inch OD tube

2шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

5

1288489C1

BRACKET

SUPPORT - solenoid bracket

1шт.

6

30365R1

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

7

30208R1

NUT,M6, Cl 10

- hex, 6 mm, class 10

2шт.

8

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

9

9410358

PLUG

- O-ring boss, 3/8 inch OD tube

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

11

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 deg, 3/8 inch tube to 1/8 inch pipe

1шт.

12

1288414C1

ELBOW

- dump

1шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

14

3120107R1

ELBOW

1шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

16

98840C1

PIPE

TUBE - solenoid inlet

1шт.

17

98839C1

HOSE,9.65 mm ID x 560.00 mm, SAE 100 R6

Solenoid Inlet 9.65 mm ID x 560.00 mm, SAE 100 R6

1шт.

18

98833C1

HOSE,0.625" ID

1шт.

19

1288413C1

GUARD

SHIELD - TA dump inlet

1шт.

20

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

4шт.

21

91905C1

SWITCH

- plunger (Neutral start)

1шт.

22

299609C1

CLAMP

- 0.375 inch diameter

1шт.

23

299615C1

CLAMP

- 0.625 inch diameter

2шт.

24

NLS

NO LONGER SERVICED

- hex, 3/8 NC x 1 inch, grade 5

1шт.

25

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

2шт.

26

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

6шт.

27

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, grade 5

1шт.

28

91914C1

HARNESS

- torque amplifier

1шт.

29

91970C1

ELECTRICAL WIRE

CABLE - ground

1шт.
