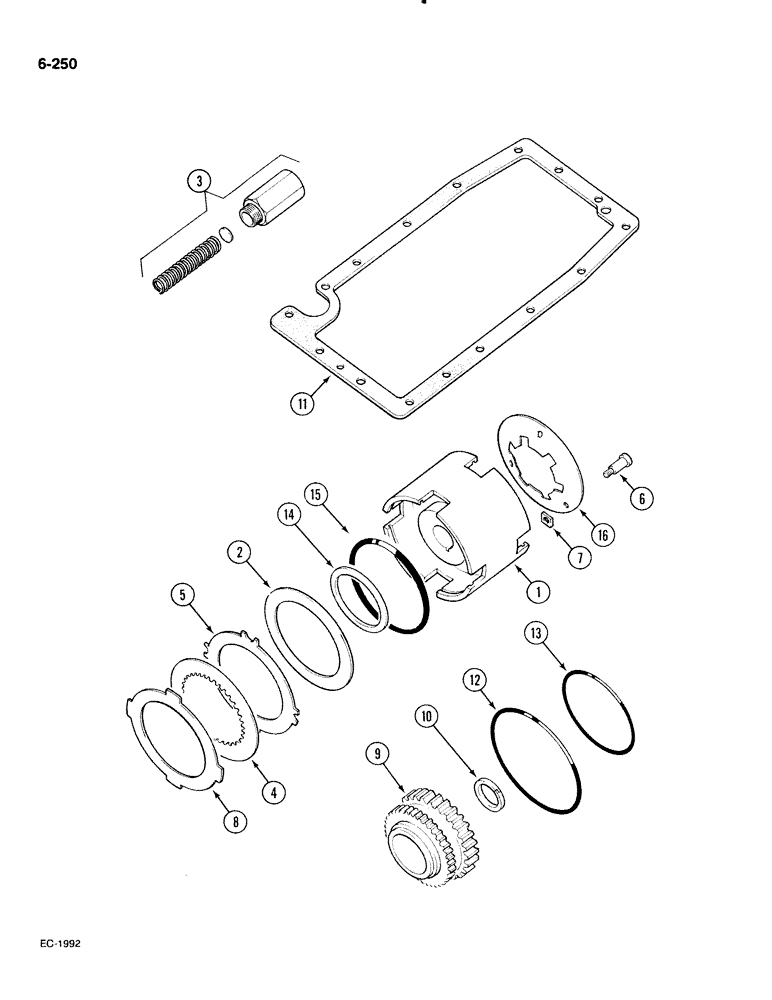

Запчасти Case IH 885 (6-250) - TORQUE AMPLIFIER, HEAVY DUTY UPDATE PACKAGE (06) - POWER TRAIN

1282783C91

PACKAGE

- TA heavy duty update, Includes: Ref. 1 - 16

1шт.

1

1502339C1

HOUSING

CUP - direct drive clutch, See Figure 6-246

1шт.

2

1502338C91

SHIM KIT

KIT - service, shims, See Figure 6-246, includes shims and instructions

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - clutch cup assembly

1шт.

3

1502344C93

PACKAGE

KIT - service, regulator valve, See Figure 8-374, includes plug, spring, shim and instructions

1шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

NSS

NOT SOLD SEPARAT

SHIM

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

4

401716R3

DISC

PLATE - clutch driven, See Figure 6-246

6шт.

5

401717R1

PLATE

- clutch separator, See Figure 6-246

4шт.

6

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT - piston return, See Figure 6-246

3шт.

7

65240C1

SQUARE NUT

- square, 1/4 inch NF, See Figure 6-246

3шт.

8

1502340C1

PLATE

- clutch backing, See Figure 6-246

2шт.

9

402563R2

PINION

GEAR - drive, sprag clutch, See Figure 6-246

1шт.

10

406275R1

RING

- clutch shaft piston, See Figure 6-248

2шт.

11

401621R3

GASKET

- clutch housing top cover, See Figure 6-222

1шт.

12

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

- 5-1/4 x 5-1/2 inch, class 6, See Figure 6-240

1шт.

13

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 x 4 inch, class 5, See Figure 6-240

1шт.

14

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

- piston, inner, See Figure 6-246

1шт.

15

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer, See Figure 6-246

1шт.

16

402574R1

BELLEVILLE WASHER

WASHER, Belleville, See Figure 6-246

3шт.
