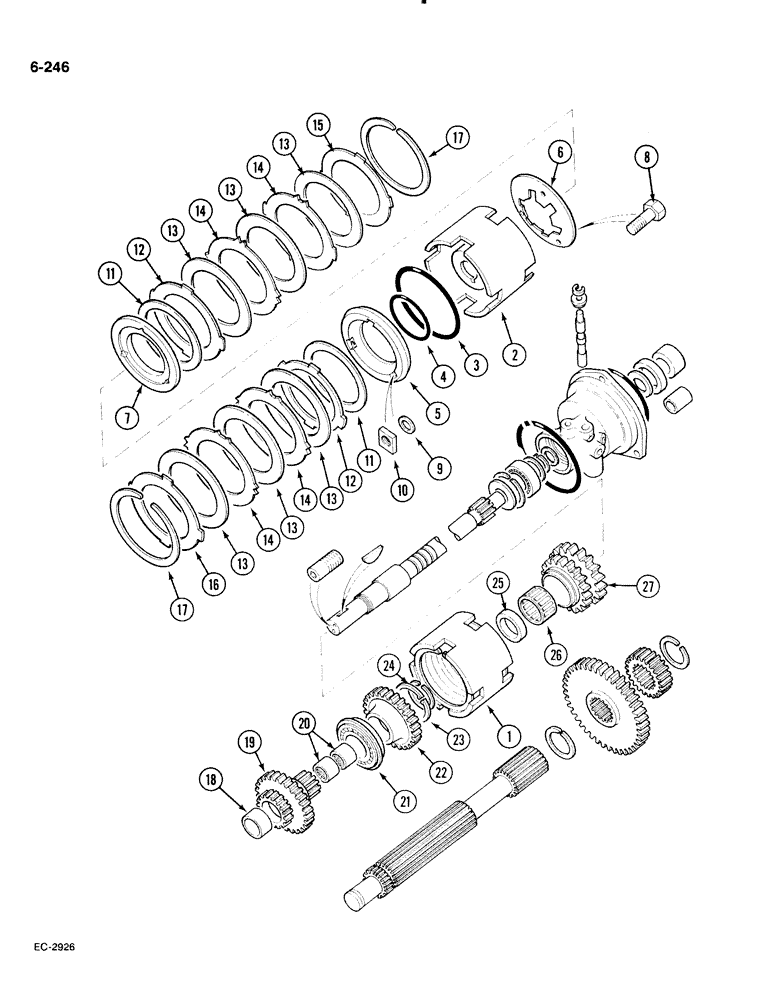

Запчасти Case IH 885 (6-246) - TWO SPEED POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH - direct drive, Includes: Ref. 2 - 17

1шт.

2

1502339C1

HOUSING

CUP - direct drive clutch

1шт.

3

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer

1шт.

4

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

- piston, inner

1шт.

5

402570R1

PISTON

- direct drive clutch

1шт.

6

402574R1

BELLEVILLE WASHER

WASHER, Belleville

3шт.

7

402573R1

PLATE

- pressure, clutch lock-up

1шт.

8

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT - piston return

3шт.

9

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

- piston support

3шт.

10

65240C1

SQUARE NUT

- square, 1/4 inch NF

3шт.

11

1502338C91

SHIM KIT

KIT - service, shims, includes shims and instructions

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - shim installation

1шт.

12

402572R1

PLATE

- piston backing

2шт.

13

401716R3

DISC

PLATE - clutch driven

6шт.

14

401717R1

PLATE

- clutch separator

4шт.

15

1502340C1

PLATE

- clutch backing

1шт.

16

402569R1

PLATE

- clutch backing

1шт.

17

401720R1

CIRCLIP

RING - retaining, backing plate

2шт.

18

3118322R91

BEARING, NEEDLE

BEARING - needle, clutch shaft

1шт.

19

3118321R2

PINION

GEAR - direct drive hub, 28 teeth

1шт.

20

550839R91

BEARING, NEEDLE

BEARING - needle, clutch shaft

2шт.

20

531436R91

NEEDLE BEARING

BEARING - needle, Serial Range: (Optional-550839R91)

2шт.

21

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, direct drive gear

1шт.

21

42347D

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

398323R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

70126C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

3066862R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

3067617R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

3066860R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

22

404199R3

SPROCKET ASSY.

CARRIER - direct drive clutch disc

1шт.

23

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

1шт.

24

583976R1

SNAP RING,#125, 1.179", Ext

RING - retaining, external, 1.179 inch

1шт.

25

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL - oil, sprag bore

1шт.

26

402566R1

BEARING ASSY

- sprag

1шт.

27

402563R2

PINION

GEAR - drive, sprag clutch

1шт.
