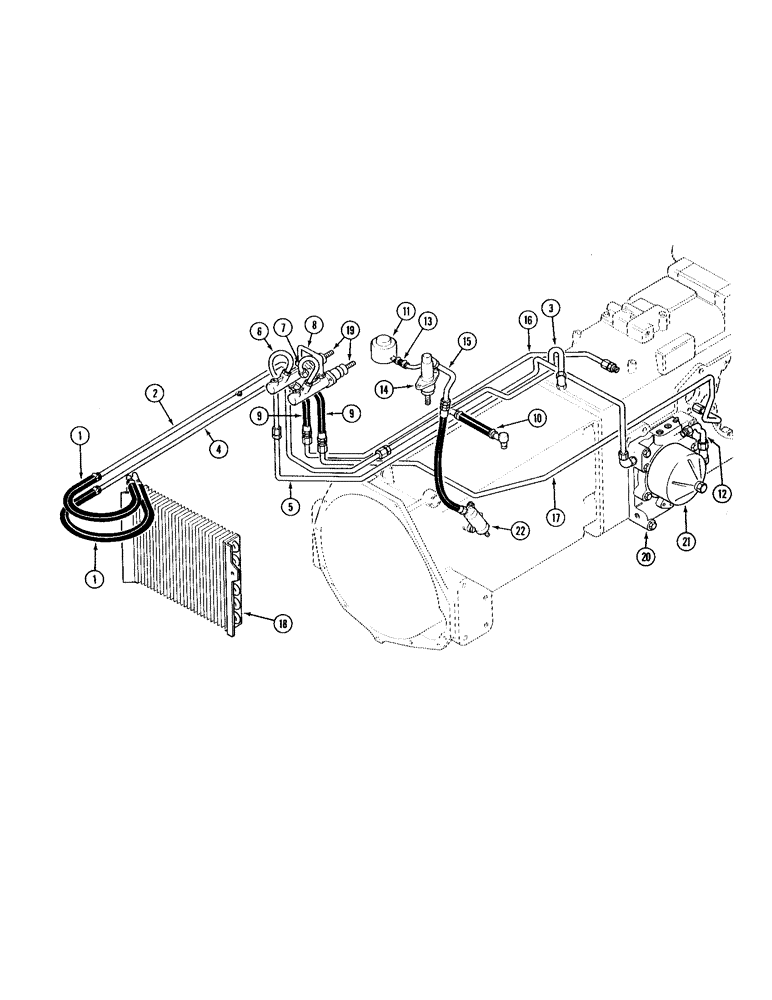

Запчасти Case IH 885 (1-014) - PICTORIAL INDEX, HYDRAULIC AND BRAKE LINES (00) - PICTORIAL INDEX

1

HOSE - oil cooler, inlet/outlet (With cab), Page 8-365

1шт.

1

HOSE - oil cooler, inlet/outlet (Without cab), Page 8-363

1шт.

2

TUBE - oil cooler return, front (With cab), Page 8-365

1шт.

2

TUBE - oil cooler return, front (Without cab), Page 8-363

1шт.

3

TUBE - oil cooler return, rear (With cab), Page 8-365

1шт.

3

TUBE - oil cooler return, rear (Without cab), Page 8-363

1шт.

4

TUBE - oil cooler supply, front (With cab), Page 8-365

1шт.

4

TUBE - oil cooler supply, front (Without cab), Page 8-363

1шт.

5

TUBE - oil cooler supply, rear (With cab), Page 8-365

1шт.

5

TUBE - oil cooler supply, rear (Without cab), Page 8-363

1шт.

6

PIPE - right cylinder outlet (With cab), Page 7-343

1шт.

6

PIPE - right cylinder outlet (Without cab), Page 7-339

1шт.

7

PIPE - left cylinder outlet (With cab), Page 7-343

1шт.

7

PIPE - left cylinder outlet (Without cab), Page 7-339

1шт.

8

PIPE - brake cylinder link (With cab), Page 7-343

1шт.

8

PIPE - brake cylinder link (Without cab), Page 7-339

1шт.

9

HOSE - brake, high pressure (With cab), Page 7-343

1шт.

10

HOSE - lubrication, Page 8-365

1шт.

11

RESERVOIR - clutch, with cap (With cab), Page 6-215

1шт.

12

TUBE - multiple control by-pass, Page 8-369

1шт.

13

PIPE - reservoir to clutch master cylinder (With cab), Page 6-215

1шт.

14

CYLINDER - clutch master (With cab), Pages 6-215, 219

1шт.

15

HOSE - clutch master to slave cylinder (With cab), Page 6-215

1шт.

16

TUBE - brake cylinder supply, right (With cab), Page 7-343

1шт.

16

TUBE - brake cylinder supply, right (Without cab), Page 7-339

1шт.

17

TUBE - brake cylinder supply, left (With cab), Page 7-343

1шт.

17

TUBE - brake cylinder supply, left (Without cab), Page 7-339

1шт.

18

COOLER - oil (With cab), Page 8-365

1шт.

18

COOLER - oil (Without cab), Page 8-363

1шт.

19

CYLINDER - brake master (With cab), Pages 7-341, 343, 345

1шт.

19

CYLINDER - brake master (Without cab), Pages 7-337, 339, 345

1шт.

20

VALVE - multiple control, Pages 8-367, 371

1шт.

21

FILTER - oil, hydraulic, Page 8-361

1шт.

22

CYLINDER - clutch slave (With cab), Pages 6-217, 219

1шт.
