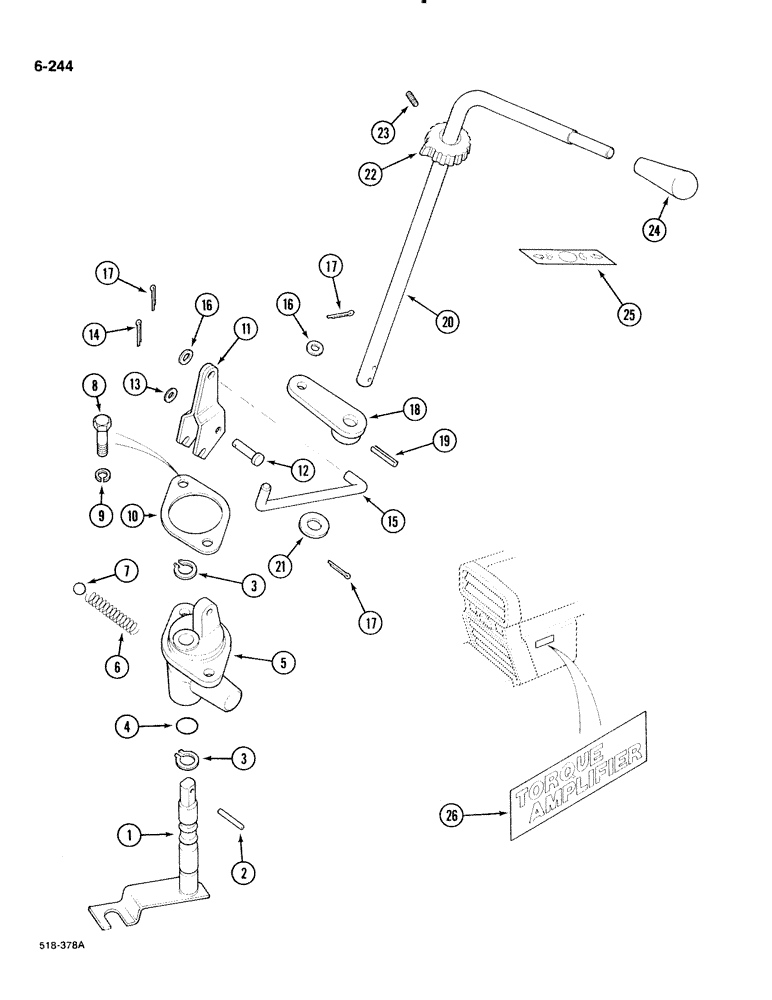

Запчасти Case IH 885 (6-244) - TORQUE AMPLIFIER CONTROL, PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

LEVER - lockout control

1шт.

2

20702R1

DOWEL,3/16" x 3/4"

PIN - dowel, 3/16 x 3/4 inch

1шт.

3

309032R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

4

370920R1

O-RING,1/2" ID

- 1/2 x 5/8 inch, class 5

1шт.

5

402595R2

SUPPORT

- control shaft

1шт.

6

402596R1

SPRING

- control

1шт.

7

17014R1

BALL

- 7/16 inch diameter, grade 25 metal

1шт.

8

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

9

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

401623R1

GASKET

- control shaft support

1шт.

11

402589R1

LEVER ASSY.

LEVER - TA control

1шт.

12

22731D

SPLIT PIN/SAFETY PIN

PIN - clevis, 1/4 x 29/32 inch

1шт.

13

16558R1

WASHER

- plain, 0.266 x 0.625 x 0.036 inch

1шт.

14

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

15

98803C1

ROD

- control

1шт.

16

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

1шт.

17

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

18

98858C1

ARM ASSY.

ARM - control

1шт.

19

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

20

3121402R2

ROD

- control handle, Replaces: 3121402R1

1шт.

21

Q5035

WASHER

- plain, 0.531 x 1.00 x 0.054 inch

1шт.

22

528290R1

GUIDE RING

COLLAR - control handle

1шт.

23

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW - set, hex socket, No. 8 x 3/8 inch

1шт.

24

402584R1

BUTTON

KNOB - control handle

1шт.

25

533594R2

DECAL

- torque amplifier control

1шт.

26

1135299R2

DECAL

- torque amplifier

2шт.
