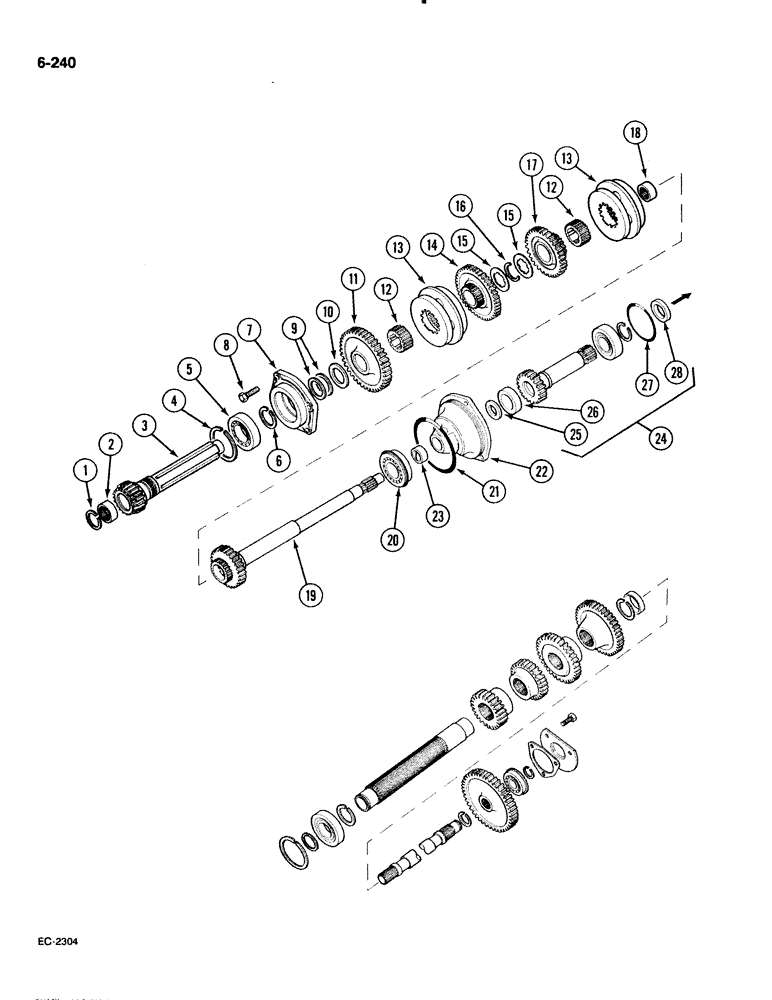

Запчасти Case IH 885 (6-240) - SPEED TRANSMISSION, IN CLUTCH HOUSING (06) - POWER TRAIN

1

66014C1

SNAP RING

RING - internal snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

- needle

1шт.

3

65258C1

SHAFT

- main, speed transmission, w/o TA

1шт.

3

3118323R1

SHAFT

with TA

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - internal snap

1шт.

5

67322C91

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING - ball, main shaft

1шт.

5

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING - ball (Optional to 67322C91)

1шт.

5

10690V

BEARING, BALL

BEARING - ball, Serial Range: (Optional-67322C91)

1шт.

5

140639R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-67322C91)

1шт.

5

67651C91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-67322C91)

1шт.

5

67652C91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-67322C91)

1шт.

5

67656C91

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING - ball (Optional to 67322C91)

1шт.

5

272566R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-67322C91)

1шт.

5

302175R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-67322C91)

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining

1шт.

7

534411R1

BEARING ASSY

CAGE - main shaft bearing

1шт.

8

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch, grade 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

- sealing

2шт.

10

398332R1

WASHER

- mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

- speed shift

2шт.

13

65793C2

SYNCHRONIZER

- with cups

2шт.

14

398330R3

PINION

GEAR - 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

WASHER - thrust, main shaft

2шт.

16

398329R1

CIRCLIP

RING - snap, synchronizer locating

1шт.

17

398327R3

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle

1шт.

19

92717C1

SHAFT

- clutch, w/o TA

1шт.

With TA, See figure 6-249 ref. #28

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, clutch shaft

1шт.

20

70126C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

42347D

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

398323R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3066860R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3066862R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3067617R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

- 5-1/4 x 5-1/2 inch, class 6

1шт.

22

398318R41

CAGE ASSY.

CAGE - IPTO and clutch shaft, Includes: Ref. 23

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

- clutch shaft

1шт.

24

1277488C2

SEAL KIT

KIT - service, seals, Includes: Ref. 25 thru 28

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 x 4 inch, class 5

1шт.

28

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve

1шт.
