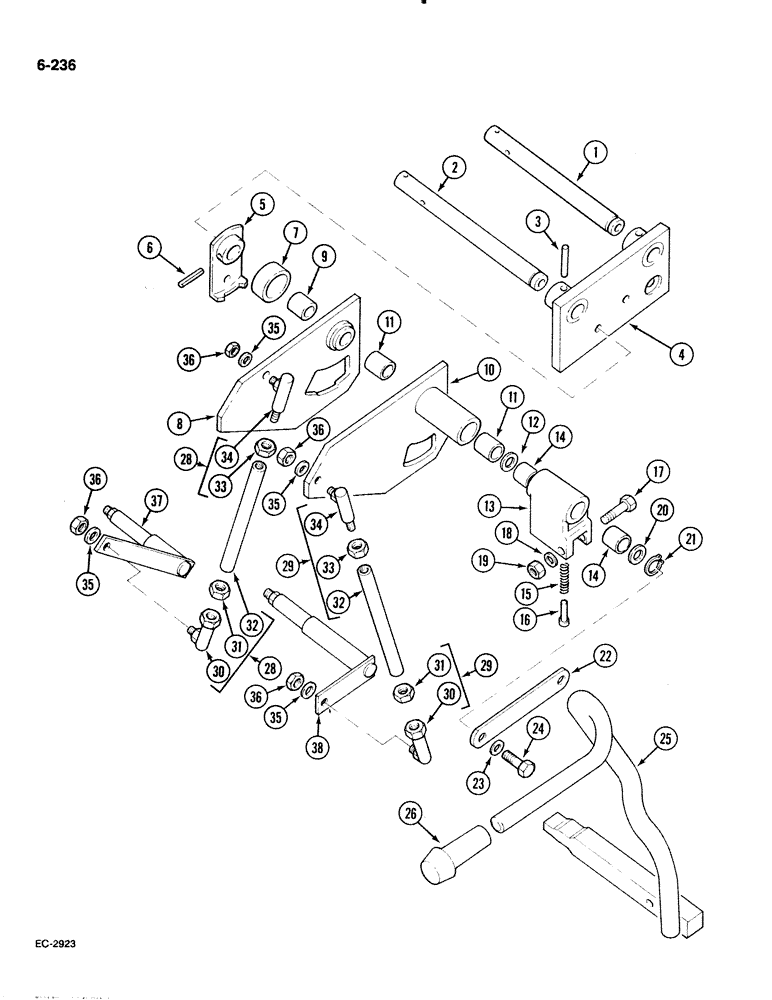

Запчасти Case IH 885 (6-236) - TRANSMISSION RANGE SHIFT CONTROLS, WITH CAB (06) - POWER TRAIN

1

1281602C1

SHAFT

- pivot, speed shift lever, See Figure 6-230

1шт.

2

1283218C1

SHAFT

- pivot, range shift lever

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE - shift pivot, See Figure 6-230

1шт.

5

98615C1

LEVER

GATE - range shift

1шт.

6

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

7

86000C1

SPACER

- pin, retaining

1шт.

8

1283427C91

LEVER ASSY.

LEVER - range shift, H/N, Includes: Ref. 9

1шт.

9

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

10

1283425C92

LEVER

- range shift, L/R, Includes: Ref. 11

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

2шт.

12

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

1шт.

13

3129214R92

HOUSING ASSY.

HOUSING - selector arm, Includes: Ref. 14

1шт.

14

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

15

71486C1

SPRING

- compression

1шт.

16

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

17

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

18

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

20

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

1шт.

21

454331R1

SNAP RING,#87, Ext

1шт.

22

1283477C1

LEVER

- pivot shaft, if fitted, See also Figure 6-230

1шт.

23

933965R1

LOCK WASHER,M10

1шт.

24

905260R1

HEX SOC SCREW,M10 x 20mm, Cl 12.9

- cap, hex socket, M10 x 20 mm

1шт.

25

1283429C2

LEVER ASSY.

LEVER - range shift

1шт.

26

3129412R2

HANDLE

KNOB - range lever

1шт.

28

1281620C91

ROD ASSY.

ROD - complete, H/N range control, Includes: Ref. 30 thru 34

1шт.

29

1281618C91

ROD ASSY.

ROD - complete, L/R range control, Includes: Ref. 30 thru 34

1шт.

30

1282947C1

BALL JOINT

JOINT - ball, M10, LH thread

1шт.

31

30860R1

NUT,M10, Cl 8, LH

- hex, M10, LH thread, class 8.8

1шт.

32

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

33

30168R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

1шт.

34

3129345R1

BALL JOINT

JOINT - ball, M10

1шт.

35

933348R1

WASHER,M10 x 20 x 2

- flat, 10.8 x 21 x 2 mm

4шт.

36

905262R1

NUT,M10 x 1.5, Cl 10

NUT - hex, 10 mm locking, grade 10

4шт.

37

1289944C2

ARM ASSY.

ARM - range shift actuating, H/N

1шт.

38

1281622C2

ARM ASSY.

ARM - range shift actuating, L/R

1шт.
