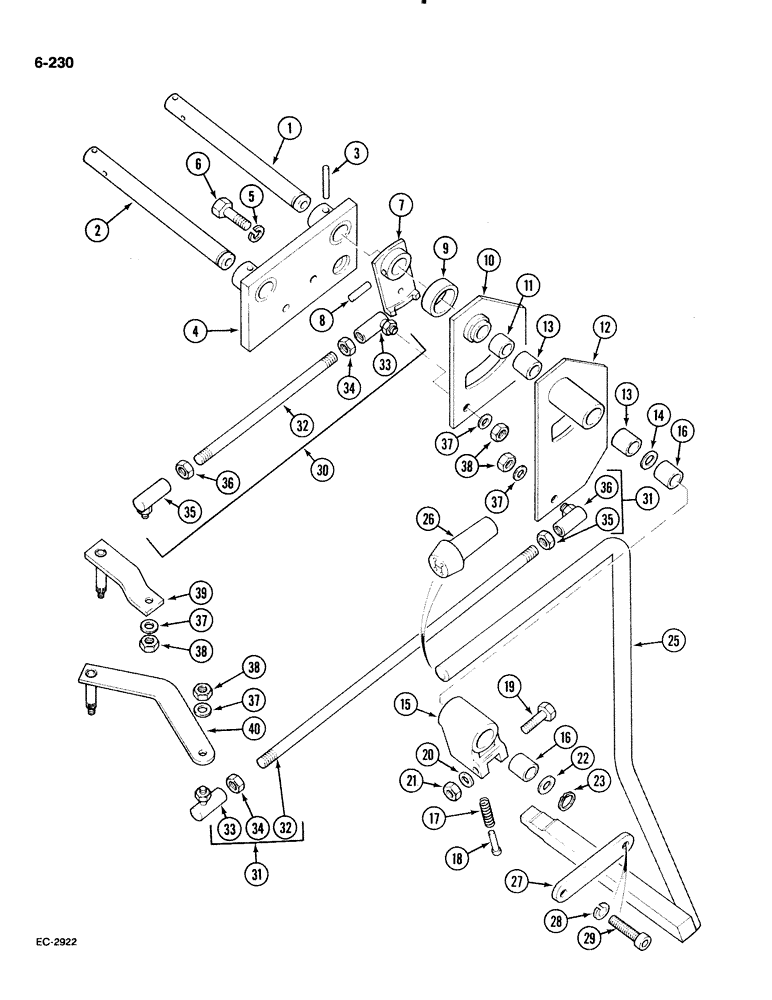

Запчасти Case IH 885 (6-230) - TRANSMISSION SPEED SHIFT CONTROL, WITH CAB (06) - POWER TRAIN

1

1281602C1

SHAFT

- pivot, speed shift lever

1шт.

2

1283218C1

SHAFT

- pivot, range shift lever, See Figure 6-236

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE - shift pivot

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

3шт.

7

3129218R2

PLATE

GATE - shift

1шт.

8

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

9

86000C1

SPACER

- pin, retaining

1шт.

10

1281608C91

LEVER ASSY.

LEVER - speed shift, 1st and 2nd, Includes: Ref. 11

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

12

1281609C92

LEVER ASSY.

LEVER - speed shift, 3rd and 4th, Includes: Ref. 13

1шт.

13

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

2шт.

14

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

1шт.

15

3129214R92

HOUSING ASSY.

HOUSING - selector arm, Includes: Ref. 16

1шт.

16

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

17

71486C1

SPRING

- compression

1шт.

18

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

19

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

20

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

21

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

22

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

1шт.

23

454331R1

SNAP RING,#87, Ext

1шт.

25

1283431C1

LEVER

- speed shift

1шт.

26

3129420R3

BUTTON

KNOB - speed shift lever

1шт.

27

1283477C1

LEVER

- pivot shaft, if fitted, See also Figure 6-236

1шт.

28

933965R1

LOCK WASHER,M10

1шт.

29

905260R1

HEX SOC SCREW,M10 x 20mm, Cl 12.9

- cap, hex socket, M10 x 20 mm

1шт.

30

1281613C91

ROD

- complete 1st and 2nd speed control, Includes: Ref. 32 thru 36

1шт.

31

1281616C91

ROD ASSY.

ROD - complete 3rd and 4th speed control, Includes: Ref. 32 thru 36

1шт.

32

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

33

1282947C1

BALL JOINT

JOINT - ball, M10, LH thread

1шт.

34

30860R1

NUT,M10, Cl 8, LH

- hex, M10, LH thread, class 8.8

1шт.

35

3129345R1

BALL JOINT

JOINT - ball, M10

1шт.

36

30168R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

1шт.

37

933348R1

WASHER,M10 x 20 x 2

- flat, 10.8 x 21 x 2 mm

4шт.

38

905262R1

NUT,M10 x 1.5, Cl 10

NUT - hex, 10 mm locking, grade 10

4шт.

39

3129184R1

ARM ASSY.

ARM - speed shift actuating, 1st/2nd, See Figure 6-234

1шт.

40

3129190R4

ARM

- speed shift actuating, 3rd/4th, See Figure 6-234

1шт.
