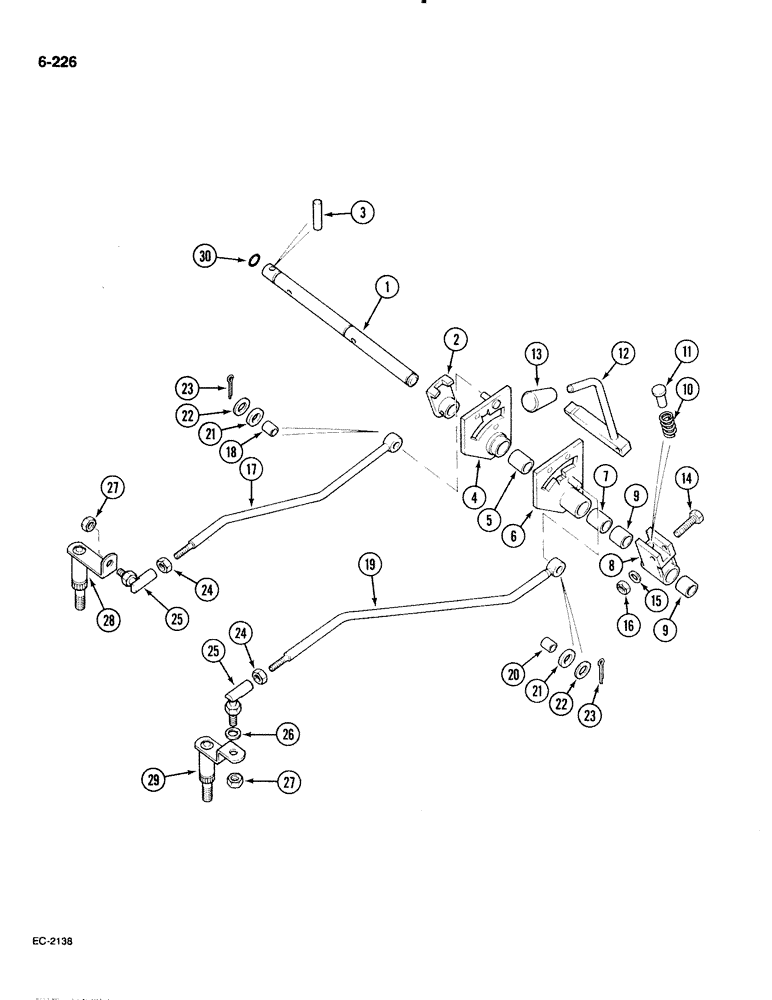

Запчасти Case IH 885 (6-226) - TRANSMISSION SPEED SHIFT CONTROL, WITHOUT CAB (06) - POWER TRAIN

1

3129155R2

SHAFT

- idle, range shift lever

1шт.

2

3129218R2

PLATE

GATE - shift

1шт.

3

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

4

3129211R91

LEVER ASSY.

LEVER - speed shift, 1st/2nd, Includes: Ref. 5

1шт.

5

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

6

3129217R91

LEVER ASSY.

LEVER - speed shift, 3rd/4th, Includes: Ref. 7

1шт.

7

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

8

3129214R92

HOUSING ASSY.

HOUSING - selector arm, Includes: Ref. 9

1шт.

9

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

10

71486C1

SPRING

- compression

1шт.

11

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

12

3129265R2

LEVER

- speed shift

1шт.

13

1265215C1

BALL KNOB

KNOB - speed shift lever

1шт.

14

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

15

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

16

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

17

3129222R91

ROD ASSY.

ROD - speed shift, 1st/2nd, Includes: Ref. 18

1шт.

18

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

19

3129226R91

ROD ASSY.

ROD - speed shift, 3rd/4th, Includes: Ref. 20

1шт.

20

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

21

83723R1

WAVE WASHER

- spring

2шт.

22

Q3641

WASHER

- plain, 0.406 x 0.625 x 0.054 inch

2шт.

23

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

1500536C1

JAM NUT

- hex, jam 7/16 inch NF

2шт.

25

1500497C1

BALL JOINT

JOINT - ball

2шт.

26

25545R1

WASHER

- hardened, 7/16 inch

1шт.

27

231-4617

LOCK NUT,7/16"-20, GB

NUT - hex lock, 7/16 inch NF, grade 5

2шт.

27

702455R1

LOCK NUT

- hex lock, 7/16 inch NF, Serial Range: (Optional-274841)

2шт.

28

3129166R1

ARM ASSY.

ARM - speed shift actuating, 1st/2nd, See Figure 6-232

1шт.

29

3129172R1

ARM ASSY.

ARM - speed shift actuating, 3rd/4th, See Figure 6-232

1шт.

30

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 x 3/32 inch, class 5

1шт.
