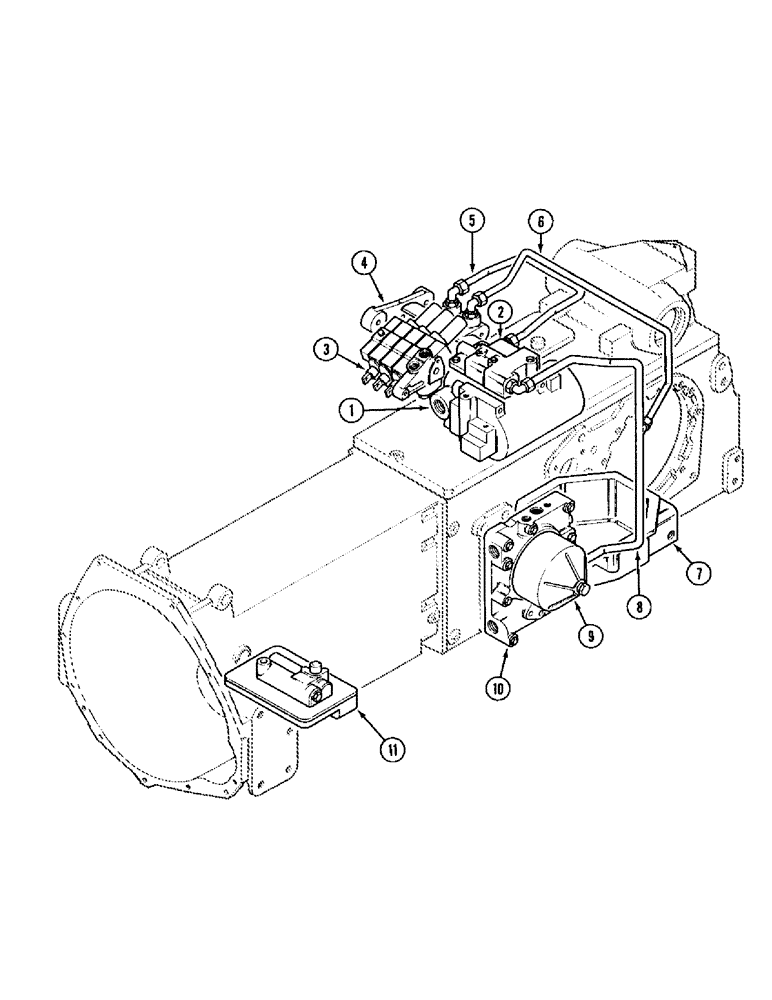

Запчасти Case IH 885 (1-012) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Cylinder - draft control, with valve, Page 8-411

1шт.

2

VALVE - unloading and flow control, Page 8-413

1шт.

3

VALVE - auxiliary (With cab) (P.I.N. 18001 and after), Pages 8-393, 403, 405

1шт.

3

VALVE, auxiliary (Without cab) (P.I.N. 18001 and after), Pages 8-391, 395, 397, 399, 405

1шт.

3

VALVE - auxiliary (Prior to P.I.N. 18001), Pages 8-383, 387, 389

1шт.

4

SUPPORT - hitch control shaft (Without cab), Page 8-415

1шт.

4

SUPPORT - hitch control shaft (With cab), Page 8-419

1шт.

5

TUBE - variable flow, Page 8-407

1шт.

6

TUBE - variable flow control supply, Page 8-407

1шт.

7

BOX - transfer gear, Page 6-305

1шт.

8

TUBE - draft control pressure, Page 8-407

1шт.

9

FILTER - oil, hydraulic, Page 8-361

1шт.

10

VALVE - multiple control, Page 8-371

1шт.

11

VALVE - pressure regulator (2 speed power shift), Pages 8-377, 381

1шт.

11

VALVE - pressure regulator (4 wheel drive), Pages 8-379, 381

1шт.
