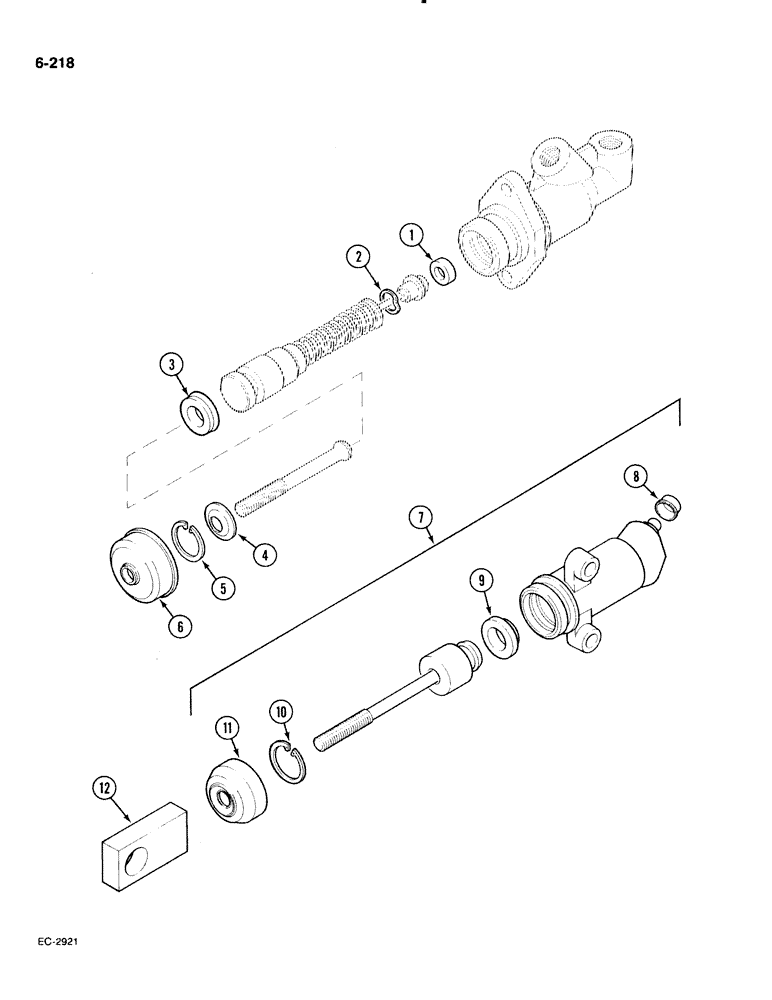

Запчасти Case IH 885 (6-218) - CLUTCH HYDRAULIC CYLINDERS (06) - POWER TRAIN

3129807R91

MASTER CYLINDER

CYLINDER - clutch master, Includes: clutch master cylinder service kit and Ref. 1 thru 6

1шт.

86011371R

REMAN-MASTER CYLINDE

885 CASE IH TRACTOR (NORTH AMERICA), CYLINDER, Clutch master (1/86-12/90), Reman for New PN 3129807R91

1шт.

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

80327C91

KIT

- service, clutch master cylinder, Includes: Ref. 1 thru 6

1шт.

1

80311C1

SEAL

- valve, clutch master cylinder

1шт.

2

80326C1

SPRING WASHER

- spring, clutch master cylinder

1шт.

3

80325C1

SEAL

- gland, clutch master cylinder

1шт.

4

80323C1

WASHER

- retaining, clutch master cylinder

1шт.

5

80315C1

RING

- retaining, clutch master cylinder

1шт.

6

80324C1

COVER

- dust, clutch master cylinder

1шт.

7

3129799R91

MASTER CYLINDER

CYLINDER clutch slave, Includes: Ref. 7A thru 12

1шт.

7a

3129800R91

MASTER CYLINDER

CYLINDER slave, Includes: Ref. 7C thru 11, not shown

1шт.

7c

80318C91

GASKET KIT

KIT - service, slave cylinder, Includes: Ref. 8 thru 11, not shown

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - dust

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - dust

1шт.

12

3129801R1

CLEVIS

EYE - connecting

1шт.
