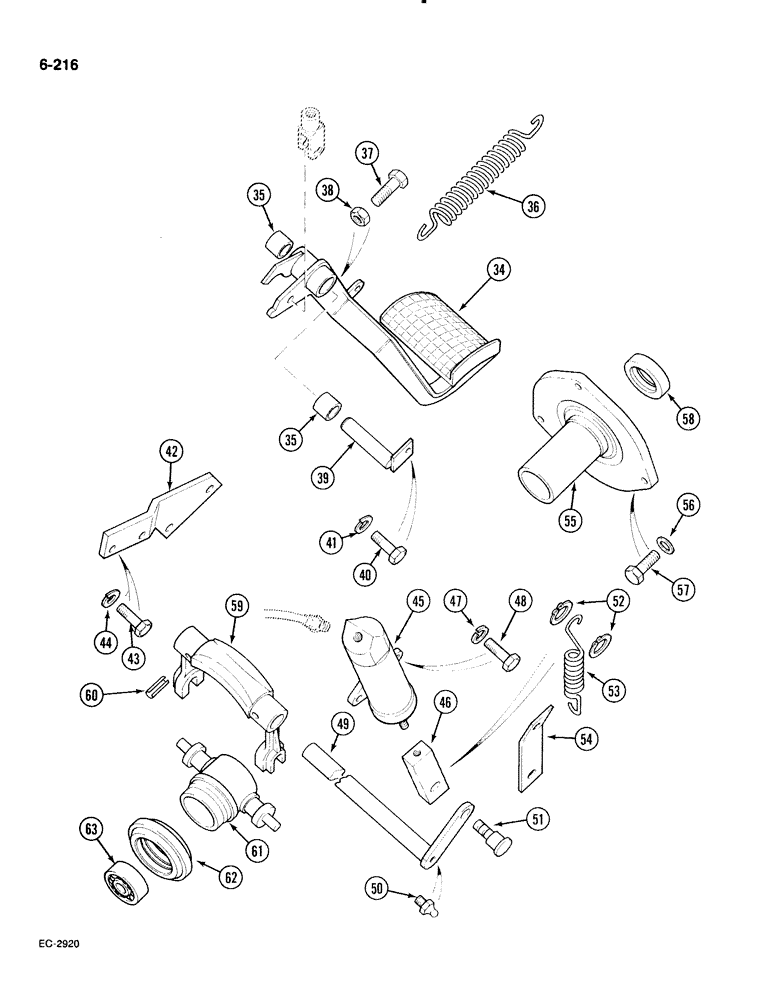

Запчасти Case IH 885 (6-216) - CLUTCH CONTROLS (CONTD) (06) - POWER TRAIN

34

1500215C91

PEDAL ASSY.

PEDAL - clutch, complete with bush and spring, Includes: Ref. 35 and 36

1шт.

35

3226548R1

BUSHING

2шт.

36

3234643R1

SPRING

- tension

1шт.

37

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

(Pedal stop) Hex, M10 x 25, 8.8, Full Thd

1шт.

38

30284R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

1шт.

39

3129796R1

PIN ASSY.

PIN - clutch pedal

1шт.

40

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

41

934309R1

LOCK WASHER,M8

WASHER - lock, M8

1шт.

42

3129810R1

SUPPORT

- slave cylinder

1шт.

43

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

44

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

45

3129799R91

MASTER CYLINDER

CYLINDER - clutch slave, See Figure 6-218, Includes: Ref. 46

1шт.

46

3129801R1

CLEVIS

EYE - connecting

1шт.

47

933965R1

LOCK WASHER,M10

2шт.

48

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

- hex, M10 x 35 mm, class 8.8

2шт.

49

1502227C2

LARGE PIN,22mm OD x 275mm L

SHAFT - clutch release

1шт.

50

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type, 1/4 inch

2шт.

51

80347C1

PIN,25mm OD x 50mm L

- spring anchor

1шт.

52

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

2шт.

53

1500587C1

SPRING

- bearing pre-load

1шт.

54

1500594C1

PLATE

- spring anchor

1шт.

55

71229C2

SLIPPER

CARRIER - clutch release sleeve

1шт.

56

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

3шт.

57

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT - hex, 3/8 NC x 1-3/8 inch, grade 5

3шт.

58

108982C1

OIL SEAL

SEAL - oil, release sleeve carrier

1шт.

58

108735C1

OIL SEAL

- oil, Serial Range: (Optional-108982C1)

1шт.

58

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve, Serial Range: (Optional-108982C1)

1шт.

59

398342R1

FORK

- clutch release

1шт.

60

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

61

85112C1

SLEEVE

- clutch release, 12 inch heavy duty clutch

1шт.

62

85104C91

BEARING, BALL

BEARING - ball, clutch release

1шт.

63

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

- Clutch pilot

1шт.

63

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING - ball (Optional to 537290R91)

1шт.

63

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

BEARING - ball (Optional to 537290R91)

1шт.

63

70127C91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball (Optional to 537290R91)

1шт.

63

70295C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-537290R91)

1шт.
