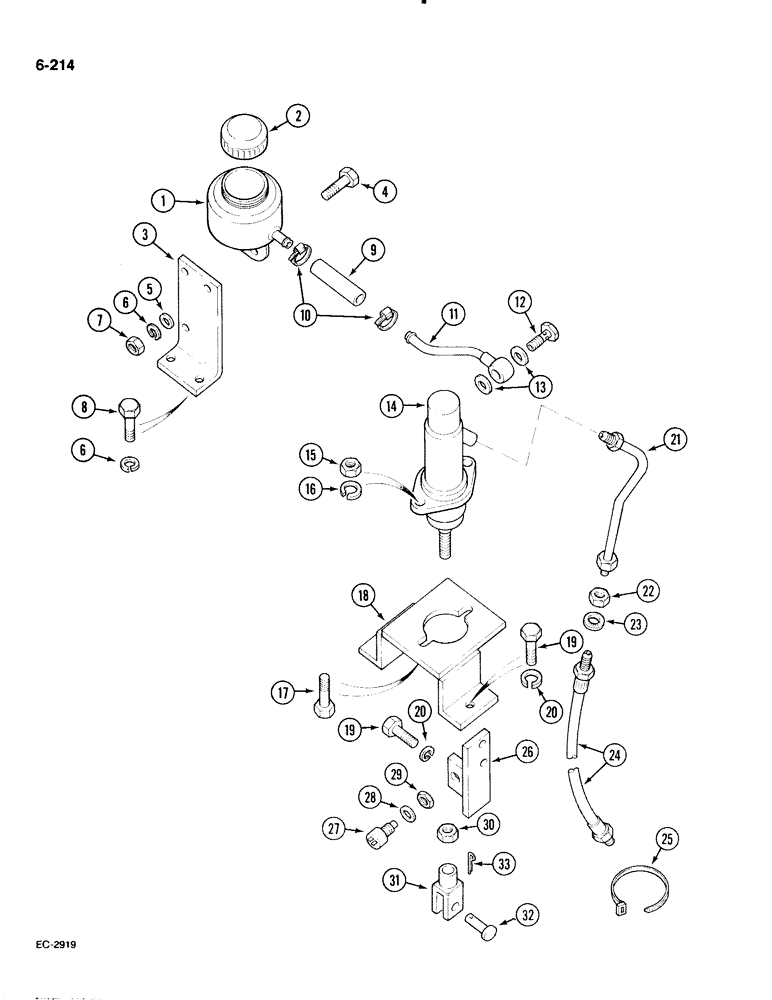

Запчасти Case IH 885 (6-214) - CLUTCH CONTROLS (06) - POWER TRAIN

1

1500732C92

RESERVOIR

- clutch, complete with cap, Includes: Ref. 2

1шт.

2

1500731C2

PLUG

CAP - clutch reservoir

1шт.

3

3129809R1

SUPPORT

BRACKET - reservoir support

1шт.

4

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm, class 8.8

2шт.

5

933346R1

WASHER,M6 x 12 x 1.6

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

6

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

4шт.

7

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

2шт.

8

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm, class 8.8

2шт.

9

3129793R1

HOSE,7.90 mm ID x 45.00 mm, SAE 100R6

- Reservoir to clutch master cylinder 7.90 mm ID x 45.00 mm, SAE 100R6

1шт.

10

3125239R1

COLLAR

CLAMP - hose, worm drive

2шт.

11

3129811R1

PIPE ASSY.

PIPE - reservoir to clutch master cylinder

1шт.

12

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

13

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

14

3129807R91

MASTER CYLINDER

CYLINDER - clutch master, See Figure 6-218

1шт.

14

86011371R

REMAN-MASTER CYLINDE

885 CASE IH TRACTOR (NORTH AMERICA), CYLINDER, Clutch Master (1/86-12/90), Reman for New PN 3129807R91

1шт.

14

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

15

30284R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

2шт.

16

933965R1

LOCK WASHER,M10

2шт.

17

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm, class 8.8

2шт.

18

3129804R1

SUPPORT ASSY.

SUPPORT - master cylinder

1шт.

19

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, M8 x 20 mm, class 8.8

4шт.

20

934309R1

LOCK WASHER,M8

WASHER - lock, M8

4шт.

21

1502285C1

PIPE ASSY.

PIPE - clutch master, Serial Range: cylinder-bulkhead

1шт.

22

3129654R1

THIN NUT

- hex, M14 x 1.5 mm, thin section

1шт.

23

934492R1

LOCK WASHER,Ext Tooth, M14

WASHER - lock, external tooth, 14 mm

1шт.

24

3129814R91

HOSE,450.00 mm, SAE 100R3

- Bulkhead to slave cylinder 450.00 mm, SAE 100R3

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

1шт.

26

3129802R1

BRACKET

- pedal stop, M16 hole

1шт.

26

1970883C1

BRACKET

- pedal stop, 5/8-32 inch hole

1шт.

27

3114409R92

NEUTRAL START SWITCH

SWITCH - plunger, neutral starting (Without 2SPS) (Use mounting bracket 3129802R1)

1шт.

27

83907C2

SWITCH

- plunger (Coarse thread), 2SPS neutral starting (Use mounting bracket 3129802R1)

1шт.

27

1964885C2

SWITCH

- plunger (Fine thread), 2SPS neutral starting (Use mounting bracket 1970883C1)

1шт.

28

Q3476

WASHER

- flat, 0.594 x 0.938 x 0.21 inch

1шт.

29

3112570R1

NUT

NUT - hex, M16 (For use with plunger switch 3114409R92)

1шт.

30

30168R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

1шт.

31

3222848R1

CLEVIS

1шт.

32

1500530C1

CLEVIS PIN

PIN - clevis

1шт.

33

1500531C1

CLIP, SPRING

CLIP - spring, retaining

1шт.
