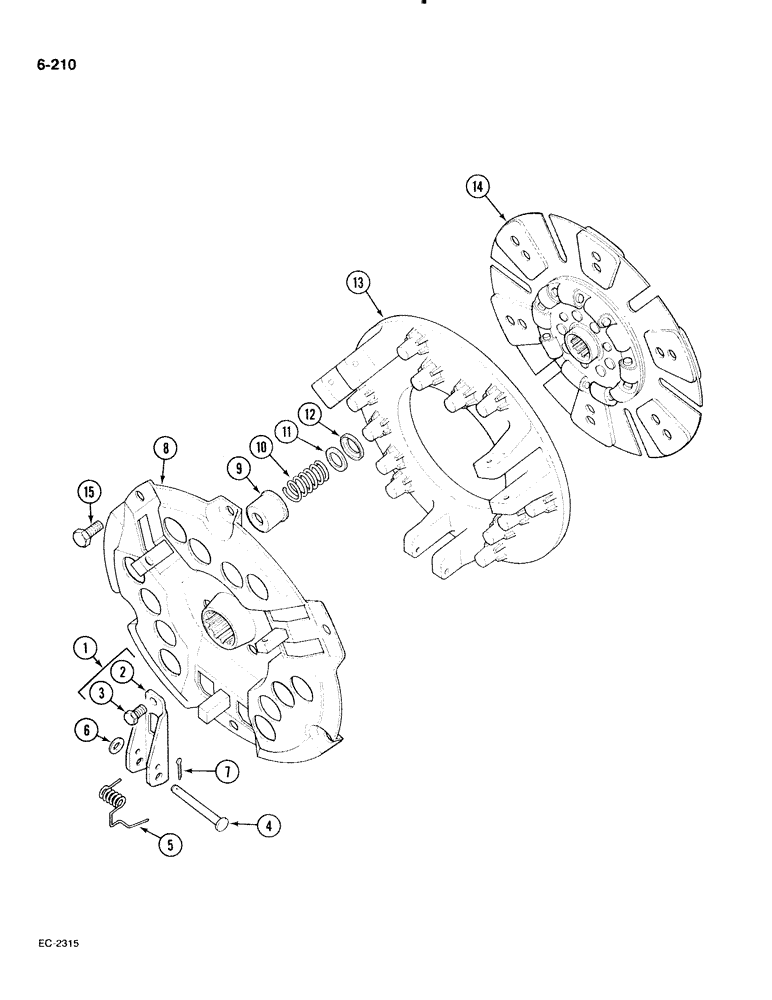

Запчасти Case IH 885 (6-210) - CLUTCH, HEAVY DUTY (06) - POWER TRAIN

85025C1

CLUTCH

PLATE - clutch, complete assembly, Includes: Ref. 1 - 13

1шт.

85025C2R

REMAN-CLUTCH PLATE

885 (1/86-12/90), Reman For New PN 85025C1

1шт.

85025C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1944257C1

COVER ASSY

PLATE - clutch, re-manufactured, Includes: Ref. 1 - 13

1шт.

1

85120C91

PACKAGE

KIT - lever assembly, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - release

3шт.

3

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW - adjusting

3шт.

4

149487R1

PIN

PIN

3шт.

5

375572R1

SPRING

SPRING

3шт.

6

95-11034

WASHER,1/4"

WASHER - plain, 0.344 x 0.688 x 0.051 inch

3шт.

7

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

8

85148C1

PLATE

PLATE - backing

1шт.

9

353316R1

SPRING CUP

CUP - spring

12шт.

10

349934C1

SPRING

SPRING

12шт.

11

311291C1

INSULATING WASHER

WASHER - insulating

12шт.

12

311292C1

WASHER

WASHER - retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE - pressure

1шт.

14

85026C1

CLUTCH DISC

CLUTCH DISK PLATE - clutch driven disc

1шт.

14

1944259C1

DRIVEN PLATE

PLATE - clutch driven disc, re-manufactured

1шт.

14

85026C3R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 10Tooth hub, 1 1/8 in. OD splines, 6 button

1шт.

14

85026C3C

CORE-CLUTCH DISC

Return Part Number

1шт.

15

179881

BOLT,1/2" - 13 x 1", Gr 5

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

15

85118C91

KIT

KIT - service, clutch up-date, Contains Ref. Nos. 1 to, Serial Range: 1-15

1шт.
