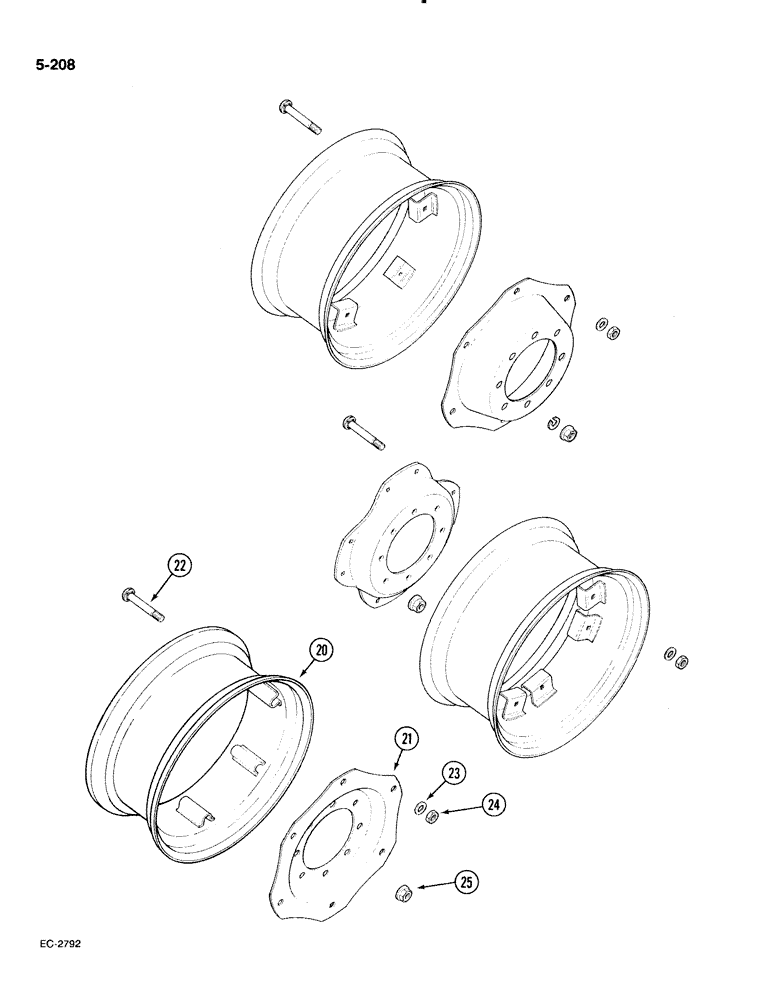

Запчасти Case IH 885 (5-208) - WHEELS, FRONT, 4 WHEEL DRIVE (CONTD) (05) - STEERING

89790C93

WHEEL (STEERING)

WHEEL - complete, W10-28, for 11.2-28 tire, Includes: Ref. 20 - 24, 24 inch wheels, Start Serial: 18001

2шт.

20

89791C1

RIM

- wheel, W10-28, Start Serial: 18001

1шт.

21

89792C1

DISC, WHEEL

DISC - 28 inch wheel, Start Serial: 18001

1шт.

22

89744C2

BOLT

BOLT - carriage, M16 x 122 mm, Start Serial: 18001

6шт.

23

89746C2

WASHER

- flat, 17 x 28 x 4 mm, Start Serial: 18001

6шт.

24

89745C2

NUT

- hex, M16, Start Serial: 18001

6шт.

25

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, M18, wheel mounting, 24 inch wheels, Start Serial: 18001

6шт.
