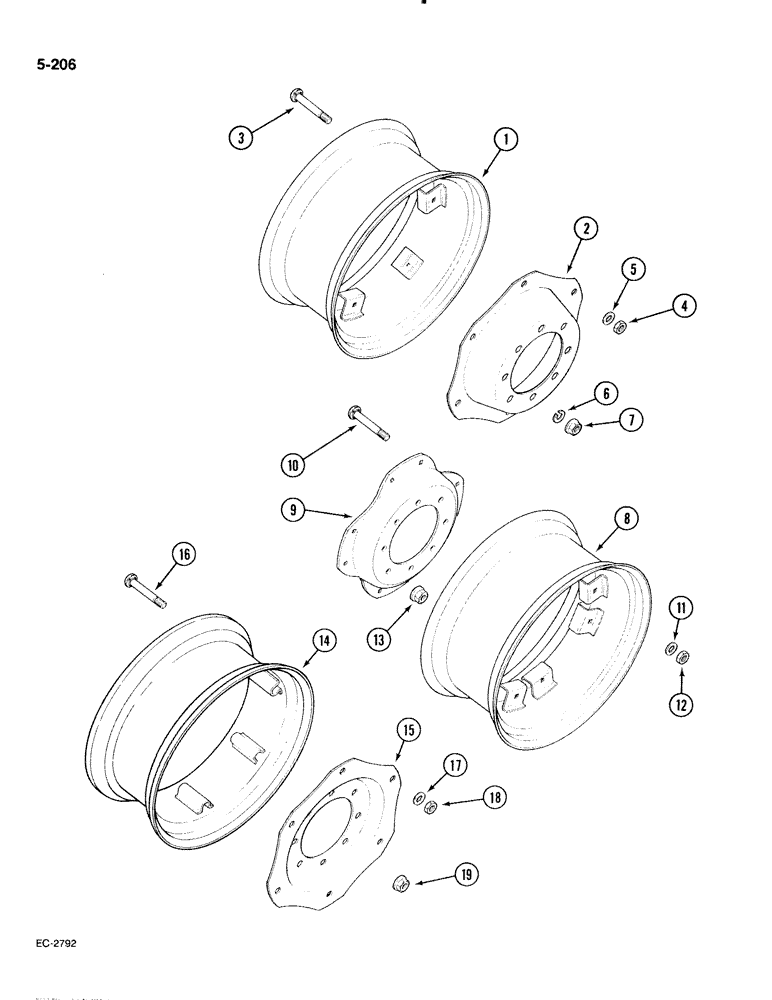

Запчасти Case IH 885 (5-206) - WHEELS, FRONT, 4 WHEEL DRIVE (05) - STEERING

3125942R91

WHEEL ASSY.

WHEEL - complete, W7-24, 24 inch, Includes: Ref. 1 - 5, Serial Range: -18001

2шт.

1500774C92

WHEEL ASSY.

WHEEL - complete, W8-24, 24 inch, Includes: Ref. 1 - 5, Serial Range: -18001

2шт.

3125943R91

WHEEL ASSY

WHEEL - complete, W8-24, 24 inch, Includes: Ref. 1 - 5, Serial Range: -18001

2шт.

3125944R92

WHEEL

- complete, W9-24, 24 inch, Includes: Ref. 1 - 5, Serial Range: -18001

2шт.

1502033C91

WHEEL

- complete, W10-24, 24 inch, Includes: Ref. 1 - 5, Serial Range: -18001

2шт.

1

1500205C1

RIM

- W7-24, 24 inch wheels, Serial Range: -18001

1шт.

1

1500206C1

RIM

- W8-24, 24 inch wheels, Serial Range: -18001

1шт.

1

1500207C1

RIM

- W9-24, 24 inch wheels, Serial Range: -18001

1шт.

1

1502035C1

RIM

- W10-24, 24 inch wheels, Serial Range: -18001

1шт.

2

1500208C1

DISC

- 24 inch wheel, for W7-24, W8-24 and W9-24, Serial Range: -18001

1шт.

2

1502034C1

DISC, WHEEL

DISC - 24 inch wheel, for W10-24, Serial Range: -18001

1шт.

3

1500209C2

BOLT

- front wheel, 24 inch, Serial Range: -18001

6шт.

4

1500210C2

NUT

- front wheel, 24 inch, Serial Range: -18001

6шт.

5

1500211C2

WASHER

- front wheel, for W7-24, W8-24 and W9-24 wheels, Serial Range: -18001

6шт.

5

1502036C2

WASHER

- front wheel, for W10-24 wheel, Serial Range: -18001

6шт.

6

712824R1

LOCK WASHER,M18.5, Spring

WASHER - lock, 24 inch wheels, Serial Range: -18001

16шт.

7

933800R1

NUT

- wheel mounting, 24 inch wheels, Serial Range: -18001

16шт.

8

99980C1

RIM

- wheel, W7-24, for 8.3-24 tire, 24 inch wheels, Start Serial: 18001

2шт.

8

99978C1

RIM

- wheel, W8-24, for 9.5-24 tire, 24 inch wheels, Start Serial: 18001

2шт.

8

99975C1

RIM

- wheel, W10-24, for 11.2-24 and 12.4-24 tires, 24 inch wheels, Start Serial: 18001

2шт.

9

99976C1

DISC, WHEEL

DISC - 24 inch wheel, Start Serial: 18001

2шт.

10

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm x 74 mm, class 8.8, 24" wheels, Start Serial: 18001

16шт.

11

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, 24 inch wheels, Start Serial: 18001

16шт.

12

1335134C1

NUT

- hex, 16 mm, 24 inch wheels, Start Serial: 18001

16шт.

13

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, M18, wheel mounting, 24 inch wheels, Start Serial: 18001

16шт.

14

89782C1

RIM

- wheel, W12-24, for 13.6-24 tire, 24 inch wheels, Start Serial: 18001

2шт.

15

89743C1

DISC, WHEEL

DISC - 24 inch wheels, Start Serial: 18001

2шт.

16

89744C2

BOLT

BOLT - carriage, M16 x 122 mm, 24 inch wheels, Start Serial: 18001

12шт.

17

89746C2

WASHER

- flat, 17 x 28 x 4 mm, 24 inch wheels, Start Serial: 18001

12шт.

18

89745C2

NUT

- hex, M16, 24 inch wheels, Start Serial: 18001

12шт.

19

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, M18, wheel mounting , 28 inch wheel, 24 inch wheels, Start Serial: 18001

16шт.

1972801C1

WHEEL

- 16 x WH8L, MFD Only

2шт.
