Запчасти Case IH 885 (5-204) - WHEELS AND WHEEL WEIGHTS, FRONT, 2 WHEEL DRIVE (05) - STEERING

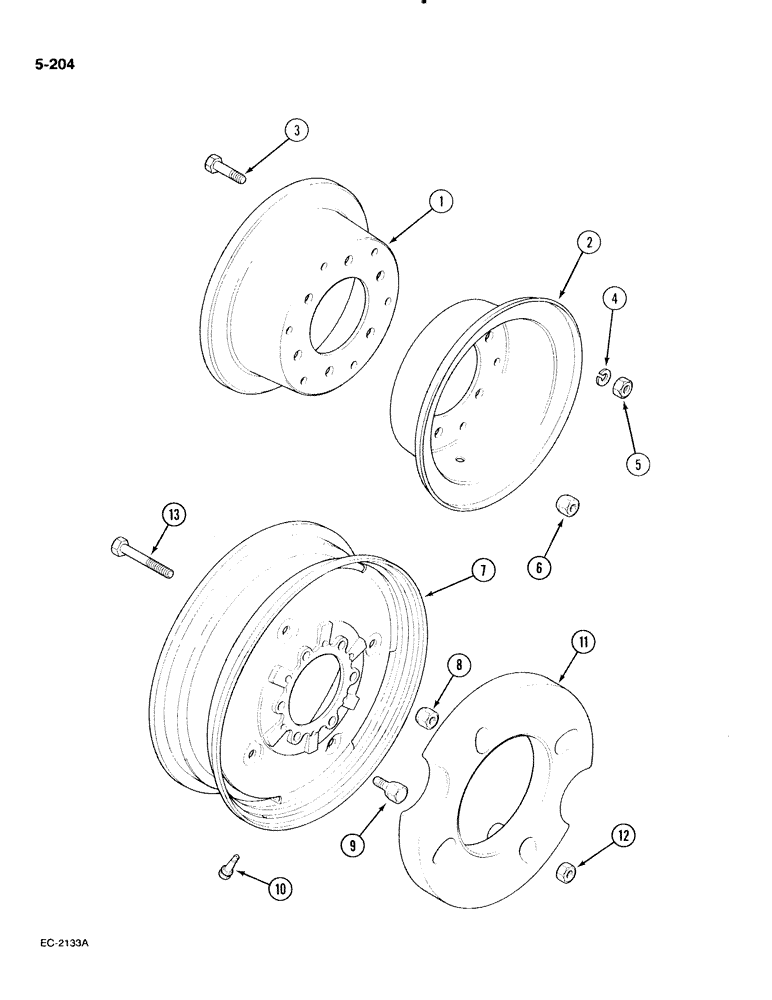

Схема запчастей Case IH 885 - (5-204) - WHEELS AND WHEEL WEIGHTS, FRONT, 2 WHEEL DRIVE (05) - STEERING
10
11
13
1
8
3
6
4
7
5
12
2
9

Артикул

Название

Примечание

Количество

1

386081R1

WHEEL

- front, inner half, 9.00-10, for 9.00-10 tire, 10 inch split

2шт.

2

386082R1

WHEEL

- front, outer half, 9.00-10, 10 inch split

2шт.

3

86837293

SHAFT

BOLT - hex, 1/2 NF x 1 inch, grade 5, 10 inch split wheel

12шт.

4

120384

WASHER,1/2"

LOCK, , 10 inch split wheel 1/2"

12шт.

5

120371

NUT,1/2"-20, G5

10 inch split wheel 1/2"-20, G5

12шт.

6

483879R2

SPECIAL NUT

- wheel retaining, 10 inch split

12шт.

7

1287905C1

WHEEL

- front, complete, 12-10.50, for 26 x 12.00-12 tire, 12 inch

2шт.

7

364343R92

WHEEL

- front, complete, W5.50-16, for 6.50-16, 9.00-16 and 7.50-16 tires, 16 inch

2шт.

7

400573R1

WHEEL

- front, complete, 5.50-18, for 7.50-18 tire, 18 inch

2шт.

8

483879R2

SPECIAL NUT

- wheel retaining, mounting hardware for 12, 16, and 18 inch wheels

12шт.

9

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - wheel mounting, 16 inch on cast front axle, mounting hardware for 12, 16 and 18 inch wheels

12шт.

10

387897R91

VALVE STEM

VALVE, TR 415, mounting hardware for 12, 16 and 18 inch wheels

1шт.

10

1970979C1

VALVE

new, mounting hardware for 12, 16 and 18 inch wheels

1шт.

11

370685R1

WEIGHT

- front wheel, 50 lbs. approx.

1шт.

12

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Wheel weights 1/2"-13, G5

1шт.

13

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch, grade 5, ZND, 1st position set, wheel weights

4шт.

13

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, grade 5, ZND, 2nd position set, wheel weights

4шт.

Выбрано товаров: 17
