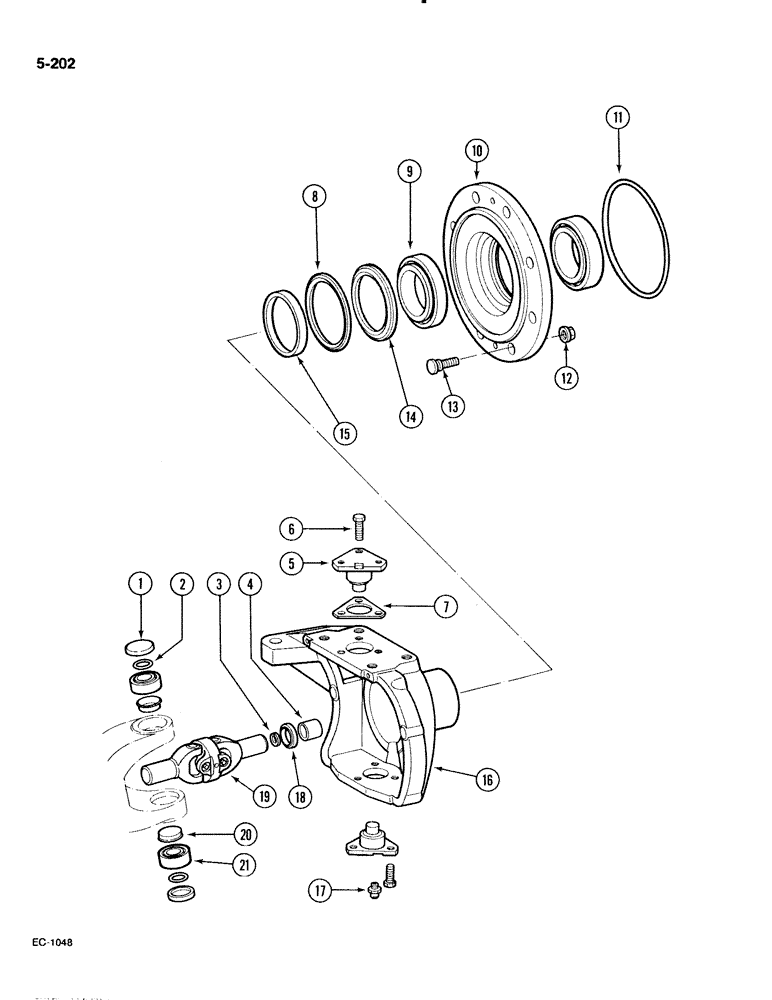

Запчасти Case IH 885 (5-202) - STEERING KNUCKLE, 4 WHEEL DRIVE, APL-330 FRONT AXLE (05) - STEERING
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
KNUCKLE - steering, Includes: Ref. 1 - 21
2шт.
1
81418C1
CAP
- sealing
4шт.
2
81419C1
O-RING,2.5mm Thk x 34mm ID, 70 Duro
- 34 x 3 mm
2шт.
3
81409C1
RING, SNAP
RING - retaining
2шт.
4
81429C2
BUSHING
SLEEVE
2шт.
5
81428C1
KNUCKLE
PIN - king
4шт.
6
931590R1
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, M12 x 30 mm, class 10.9
12шт.
7
1975401C1
SHIM
- 0.2 mm
1шт.
7
1975400C1
SHIM
- 0.3 mm
1шт.
7
81426C1
SHIM
- 0.4 mm
2шт.
7
81420C1
SHIM
- 0.6 mm
2шт.
7
81427C1
SHIM
- 0.8 mm
2шт.
7
81421C1
SHIM
- 1.0 mm
2шт.
7
81422C1
SHIM
- 1.4 mm
2шт.
7
81423C1
SHIM
- 1.6 mm
2шт.
7
81424C1
SHIM
- 1.8 mm
2шт.
7
81425C1
SHIM
- 2.0 mm
2шт.
8
81311C1
SCRAPER RING
RING - scraper
2шт.
9
81312C1
ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm
BEARING - roller
4шт.
10
81308C1
HUB
- wheel
2шт.
11
81313C1
O-RING,200mm ID
- 200 x 3 mm
2шт.
12
905667R1
WHEEL NUT,Wheel, Flg, M18 x 1.5
- wheel
16шт.
13
81317C1
STUD
- wheel mounting
16шт.
14
81310C1
SEALING RING
shaft
2шт.
14
1964235C1
SEAL
shaft
2шт.
15
81309C1
SLEEVE
2шт.
16
81413C1
HOUSING
- steering knuckle, left
1шт.
16
81414C1
STEERING KNUCKLE
HOUSING - steering knuckle, right
1шт.
17
A52371
FITTING
- grease
4шт.
18
81411C1
SEAL ASSY.
SEAL - shaft
2шт.
19
81430C1
JOINT ASSY.
JOINT - double, comprised of center, lubricator, yoke and spider
2шт.
Axle S/N BSN 11957
1шт.
19
1968450C1
JOINT ASSY.
JOINT - double, comprised of center, lubricator, yoke and spider
2шт.
Axle S/N ASN 11957
1шт.
1342701C1
CENTER JOINT
CENTER
1шт.
1342702C1
SHORT SHAFT FORK
YOKE
1шт.
1342703C1
U-JOINT SPIDER
SPIDER
1шт.
20
81415C1
CAP
- end
4шт.
21
1342525C1
BEARING, ROLLER,22.616 mm ID x 47.026 mm OD x 15.07 mm
BEARING - outer race, one part design, Replaces: 81416C1
4шт.
21
1342525C1
BEARING, ROLLER,22.616 mm ID x 47.026 mm OD x 15.07 mm
BEARING - inner race, one part design, Replaces: 81417C1
4шт.
Выбрано товаров: 41
