(5-198) - FRONT AXLE, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER

Запчасти Case IH 885 (5-198) - FRONT AXLE, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING

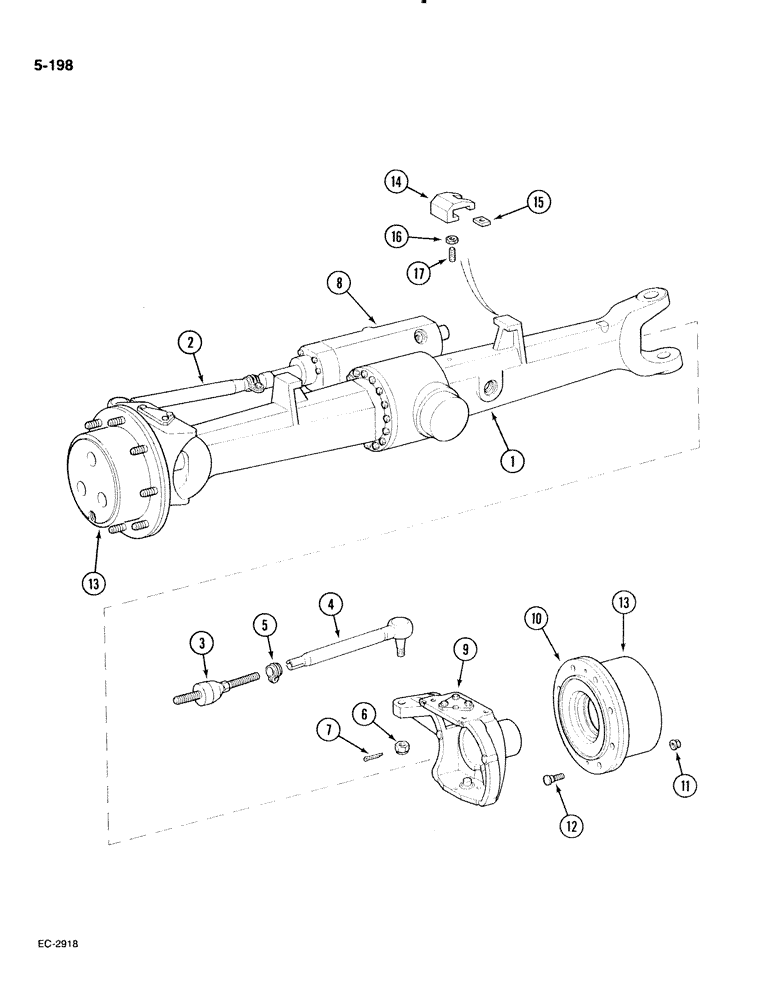

Схема запчастей Case IH 885 - (5-198) - FRONT AXLE, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING
1
17
13
6
5
12
7
16
10
9
3
14
8
11
15
2
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

AXLE - front, APL-330 with self-locking differential, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle assembly, See Figure 6-280, Includes: Ref. 2 - 7

1шт.

2

81289C1

DRAG LINK

ROD - tie, Includes: Ref. 3 - 7

2шт.

3

1968463C1

BALL JOINT

JOINT - axial

1шт.

4

1968464C1

TIE-ROD

BALL - joint

1шт.

5

1968467C1

HOSE CLAMP

CLAMP - tie rod

1шт.

6

1968465C1

NUT

- hex slotted

1шт.

7

1968466C1

PIN, SPLIT (COTTER)

PIN - cotter

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER - steering, See Figure 5-174

1шт.

9

NSS

NOT SOLD SEPARAT

KNUCKLE - steering, See Figure 5-202

2шт.

10

81308C1

HUB

- wheel, See Figure 5-202

2шт.

11

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, M18, wheel mounting

16шт.

12

81317C1

STUD

- wheel mounting

16шт.

13

NSS

NOT SOLD SEPARAT

DRIVE - planetary

2шт.

14

99775C1

STOP

- axle oscillation

2шт.

15

99779C1

SQUARE NUT

- square, 1/4 inch NC

2шт.

16

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

17

102436

SET SCREW,Sq Hd, 1/4"-20 x 1 1/2"

SCREW - square head, 1/4 NC x 1-1/4 inch

2шт.
