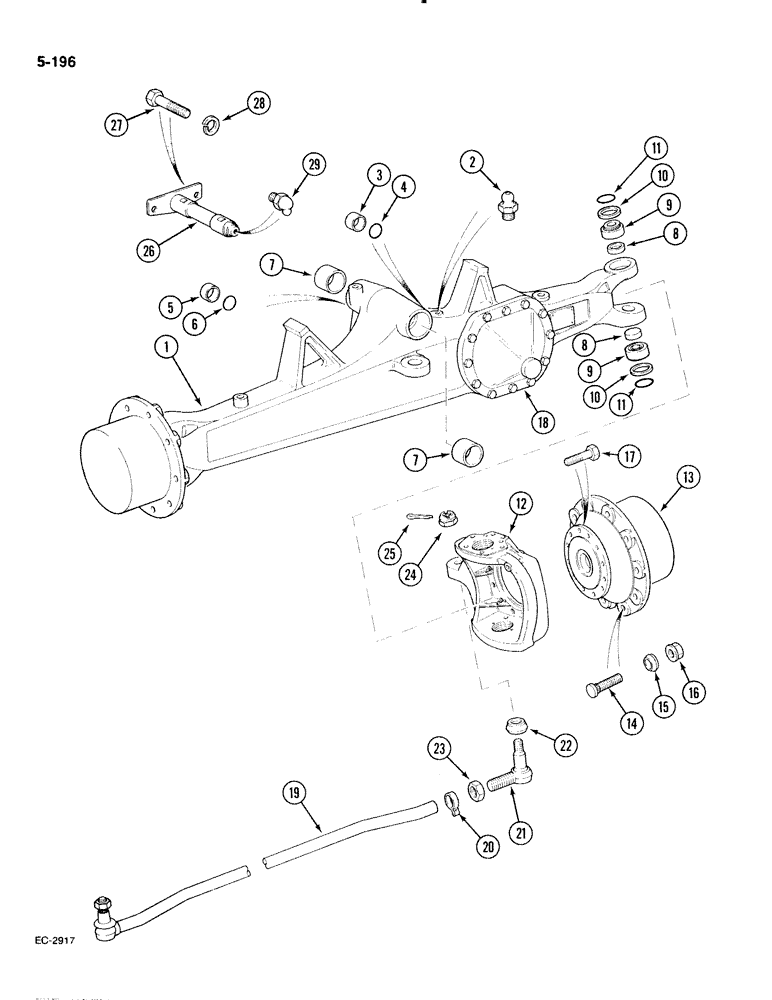

Запчасти Case IH 885 (5-196) - FRONT AXLE, 4 WHEEL DRIVE (05) - STEERING

1500229C92

4WD AXLE ASSY

AXLE - front, complete, with single universal joint drive shaft, Includes: Ref. 1 thru 25

1шт.

82240C91

AXLE

- front, complete, with double universal joint drive shaft, Includes: Ref. 1 thru 25

1шт.

1

1502262C1

HOUSING

- axle

1шт.

2

898138H1

BREATHER

VALVE - breather

1шт.

3

933799R1

PLUG,Hex Soc, M24 x 1.5

1шт.

4

933709R1

PACKING RING

RING - sealing, 24 x 29 mm

1шт.

5

3216584R1

PLUG

- filler, M18

1шт.

6

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

7

1502263C1

BUSHING

2шт.

8

3147245R1

PLUG

COVER

4шт.

9

3147241R1

BEARING, CUP

4шт.

9

3147242R91

ROLLER BEARING

BEARING - cone

4шт.

10

3147243R1

CUP WASHER

4шт.

11

3147244R1

O-RING

4шт.

12

NSS

NOT SOLD SEPARAT

KNUCKLE - steering, complete assembly, See Figure 5-200

2шт.

13

NSS

NOT SOLD SEPARAT

HUB - wheel, with drive assembly, See Figure 6-282

2шт.

14

3230876R1

BOLT,Wheel, Serr, M18 x 1.5 x 61 mm

- wheel

16шт.

15

712824R1

LOCK WASHER,M18.5, Spring

WASHER - lock

16шт.

16

933800R1

NUT

- wheel mounting

16шт.

17

934654R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, M12 x 25 mm, class 10.9

24шт.

18

NSS

NOT SOLD SEPARAT

DIFFERENTIAL - complete, See Figure 6-290

1шт.

19

1502268C1

TIE-ROD

ROD tie, with no ball joint ends, order Ref. 21 for the ends, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

CLIP - tie rod

1шт.

21

1502269C1

BALL JOINT

JOINT - ball, Includes: Ref. 22

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL - ball joint

2шт.

23

1502270C1

NUT

- lock

2шт.

24

934683R1

NUT,M18 x 1.5

NUT - castellated, 18 mm

2шт.

25

932956R1

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

2шт.

26

539128R1

SHAFT ASSY.

SHAFT - front axle pivot

1шт.

27

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

28

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

29

273352

SCREW

FITTING - grease, 90 degree, 1/8 inch PTF

1шт.
