Запчасти Case IH 885 (5-194) - TIE ROD, ADJUSTABLE FRONT AXLES (05) - STEERING

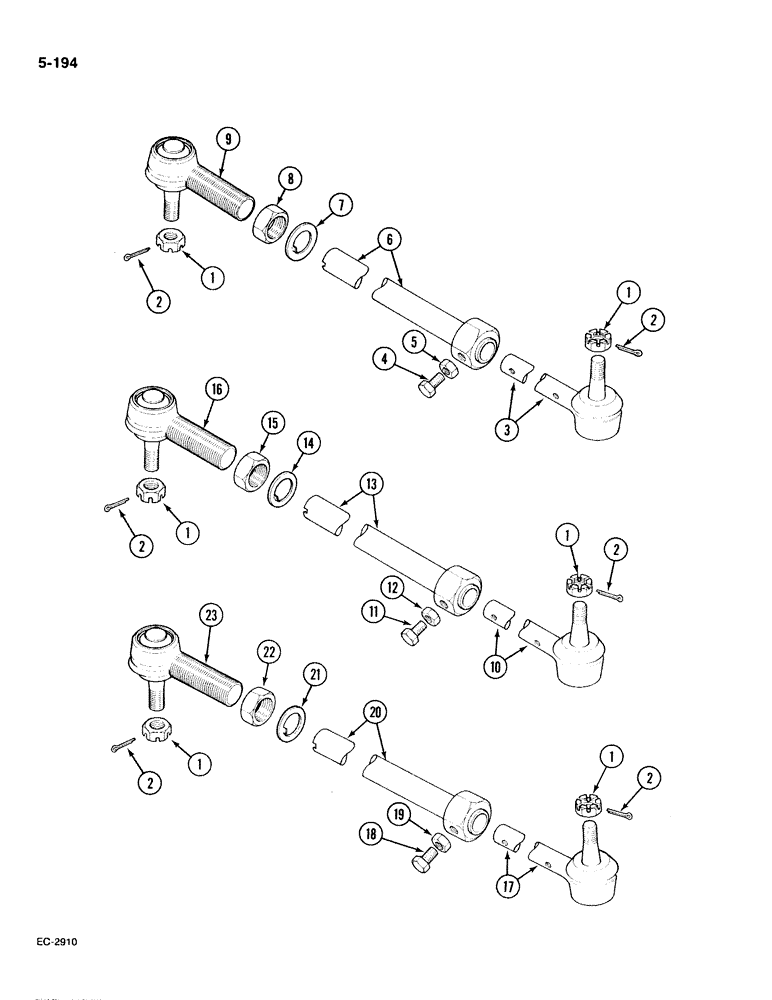

Схема запчастей Case IH 885 - (5-194) - TIE ROD, ADJUSTABLE FRONT AXLES (05) - STEERING
1
6
23
1
14
12
2
4
10
15
7
1
2
22
13
16
8
2
20
19
1
17
2
11
9
5
3
2
1
21
1
2
18

Артикул

Название

Примечание

Количество

1

102648

SLOTTED NUT,9/16"-18, G5

2шт.

2

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

NSS

NOT SOLD SEPARAT

ROD - tie, adjustable, Includes: Ref. 3 - 9, straight axle with high spindle, 52 - 82" track

2шт.

3

3116406R3

BALL JOINT

SOCKET - outer, AP, straight axle with high spindle, 52 - 82" track

1шт.

3

1332805C1

BALL JOINT

SOCKET - outer, OMG, optional to 3116406R3, straight axle with high spindle, 52 - 82" track

1шт.

4

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set, straight axle with high spindle, 52 - 82" track

1шт.

5

3116410R1

LOCK NUT

NUT - lock, straight axle with high spindle, 52 - 82" track

1шт.

6

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

- center, straight axle with high spindle, 52 - 82" track

1шт.

7

3116411R1

LOCK WASHER

- tab, straight axle with high spindle, 52 - 82" track

1шт.

8

3116412R1

LOCK NUT

NUT - lock, straight axle with high spindle, 52 - 82" track

1шт.

9

3116407R3

BALL JOINT

SOCKET - inner, straight axle with high spindle, 52 - 82" track

1шт.

NSS

NOT SOLD SEPARAT

ROD - tie, adjustable, Includes: Ref. 10 - 16

2шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

10

3125171R2

BALL JOINT

SOCKET - outer, AP

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

10

1332805C1

BALL JOINT

SOCKET - outer, OMG, Serial Range: optional-3125171R2

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

11

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

12

3116410R1

LOCK NUT

NUT - lock

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

13

3125172R1

TUBE,20.75 mm ID, 28 mm OD, 382 mm Length

- center, Replaces: 3125172R2

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

14

3116411R1

LOCK WASHER

- tab

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

15

3116412R1

LOCK NUT

NUT - lock

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

16

3116407R3

BALL JOINT

SOCKET - inner

1шт.

Straight axle with low spindle, 52 - 82" track and straight axle with high or low spindle, 52 - 77" track

1шт.

NSS

NOT SOLD SEPARAT

ROD - tie, adjustable, swept back axle, Includes: Ref. 17 - 23

2шт.

17

3129380R2

BALL JOINT

SOCKET - outer, swept back adjustable axle

1шт.

18

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set, swept back adjustable axle

1шт.

19

3116410R1

LOCK NUT

NUT - lock, swept back adjustable axle

1шт.

20

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

- center, swept back adjustable axle

1шт.

21

3116411R1

LOCK WASHER

- tab, swept back adjustable axle

1шт.

22

3116412R1

LOCK NUT

NUT - lock, swept back adjustable axle

1шт.

23

3116407R3

BALL JOINT

SOCKET - inner, swept back adjustable axle

1шт.

Выбрано товаров: 37
