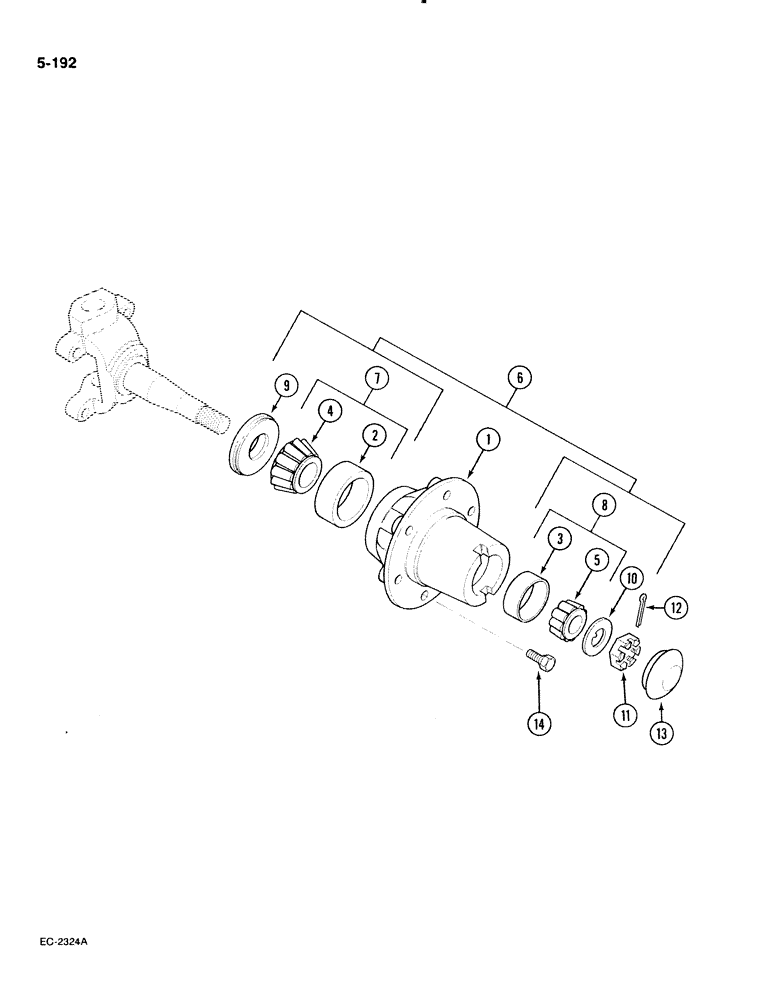

Запчасти Case IH 885 (5-192) - WHEEL HUB AND CAP, SWEPT BACK CAST FRONT AXLE (05) - STEERING

1

378401R21

HUB

- front wheel, Includes: Ref. 2 - 3

2шт.

2

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

BEARING - cup, inner

1шт.

2

455672R1

BEARING

- cup, inner, Serial Range: optional-ST954

1шт.

2

168422R1

BEARING CONE,1.625" ID x 3.4375" OD x 1.1875"

BEARING - cup, inner, optional to ST954

1шт.

2

PO14039

BEARING

- cup, inner, Serial Range: optional-ST954

1шт.

3

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

BEARING - cup, outer

1шт.

3

118301R1

BEARING, CUP

BEARING - cup, outer, Serial Range: optional-20646DA

1шт.

3

10101V

BEARING CUP

BEARING - cup, outer, Serial Range: optional-20646DA

1шт.

4

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

BEARING - cone, inner

2шт.

4

455671R91

BEARING CONE

BEARING - cone, inner, Serial Range: optional-ST2005A

2шт.

4

168421R91

ROLLER BEARING,1.75" ID x 3.4375" OD x 1.1875"

- cone, inner, optional to ST2005A

2шт.

4

M93599

BEARING CONE

BEARING - cone, inner, Serial Range: optional-ST2005A

2шт.

5

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

BEARING - cone, outer

2шт.

5

118032R91

ROLLER BEARING

- cone, outer, Serial Range: optional-ST2034

2шт.

5

M73211

BEARING ASSY

BEARING - cone, outer, Serial Range: optional-ST2034

2шт.

6

65990C91

PACKAGE

KIT - service, front wheel bearings, Includes: Ref. 7 - 9

1шт.

7

ST2004A

TAPERED BEARING

BEARING - complete, front wheel inner

1шт.

7

455670R91

BEARING ASSY,1.75" ID x 3.4375" OD x 1.675"

- complete, optional to ST2004A

1шт.

7

168420R91

BEARING - complete, Serial Range: optional-ST2004A

1шт.

7

14969L

TAPERED BEARING

BEARING - complete, Serial Range: optional-ST2004A

1шт.

8

ST2033

BEARING

- complete, front wheel outer

1шт.

8

118033R91

TAPERED BEARING

BEARING - complete, Serial Range: optional-ST2033

1шт.

8

114692R91

BEARING

- complete, Serial Range: optional-ST2033

1шт.

9

378402R11

RETAINER

- felt, hub

2шт.

9

97739HX

RING

RETAINER - felt, Serial Range: optional-378402R11

2шт.

10

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

- adjusting nut

2шт.

11

25-1316

NUT,1"-14, G5

NUT, SLOTTED, , Bearing Adj. 1"-14, G5

2шт.

12

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

13

378814R1

CAP

- hub front wheel

2шт.

14

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - wheel mounting

2шт.
