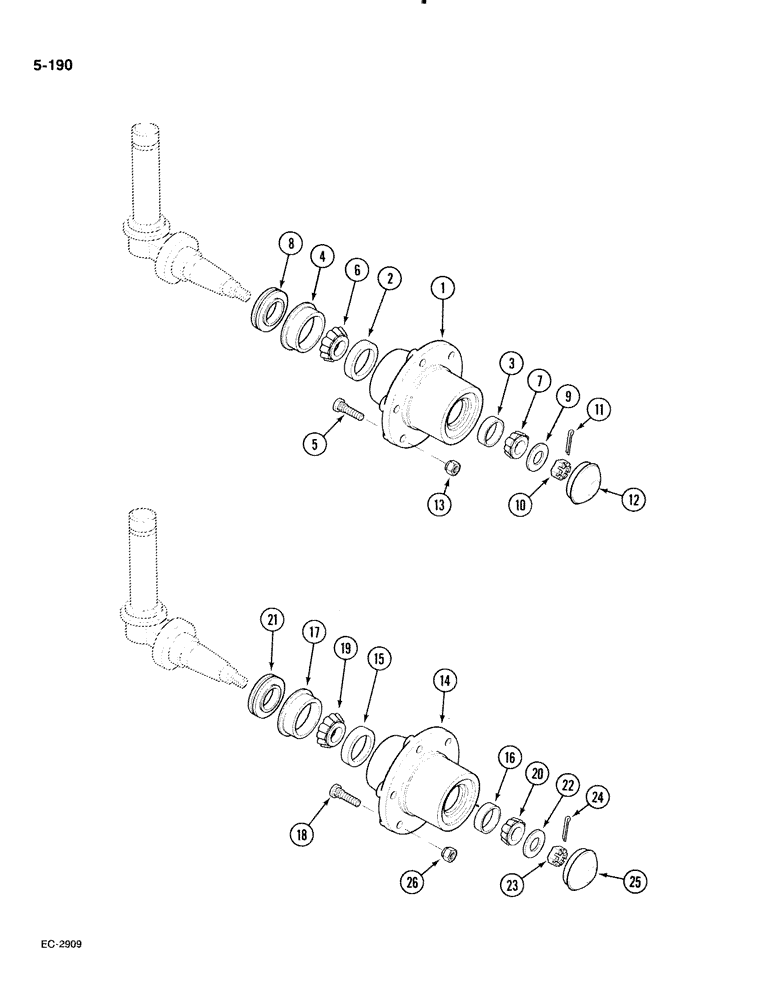

Запчасти Case IH 885 (5-190) - WHEEL HUB AND CAP, ADJUSTABLE FRONT AXLES (05) - STEERING

1

67527C92

HUB

- front wheel, straight front axles, Includes: Ref. 2 - 5

2шт.

2

400988C1

BEARING, CUP

Inner, Straight front axles

1шт.

2

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING - cup, inner, optional to 400988C1, straight front axles

1шт.

3

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING - cup, outer, straight front axles

1шт.

3

538491R1

BEARING, CUP

Outer, Optional to 536054R1, Straight front axles

1шт.

4

67328C1

SEALING RING

RING - wear, straight front axles

1шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting, Straight front axles

6шт.

6

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

BEARING - cone, inner, straight front axles

2шт.

6

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - cone, inner, optional to 400987C91, straight front axles

2шт.

7

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING - cone, outer, straight front axles

2шт.

7

538492R91

BEARING CONE

BEARING - cone, outer, optional to 536053R91, straight front axles

2шт.

8

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- dust, front wheel, straight front axles

2шт.

9

105759C1

WASHER

- retaining, outer bearing, straight front axles

2шт.

10

1332751C1

SLOTTED NUT

- hex slotted, 3/4 inch NF, straight front axles

2шт.

11

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Straight front axles 5/32" x 1 3/8"

2шт.

12

612884R1

HUB CAP

CAP - hub, front wheel, straight front axles

2шт.

13

483879R2

SPECIAL NUT

- wheel retaining, straight front axles

12шт.

14

406294R21

HUB ASSY.

HUB - front wheel, swept back axle, Includes: Ref. 15 - 18

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, Swept back axle

1шт.

15

371898R1

BEARING, CUP

Inner, Optional to 618024R1, Swept back axle

1шт.

16

371883R1

BEARING CUP

Outer, Swept back axle

1шт.

16

371908R1

BEARING CUP

Outer, Optional to 371883 R1, Swept back axle

1шт.

17

406295R2

RING

- wear, swept back axle

1шт.

18

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting, Swept back axle

6шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone inner, swept back axle

2шт.

19

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

BEARING - cone, optional to 618023R91, swept back axle

2шт.

20

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer, Swept back axle

2шт.

20

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

- cone, outer, optional to 371882R91, swept back axle

2шт.

21

405835R91

SEAL

- dust, front wheel, swept back axle

2шт.

21

530104R91

SEAL

SEAL - dust, optional to 405835R91, swept back axle

2шт.

22

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- hardened, swept back axle

2шт.

23

427639

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF, grade 5, swept back axle

2шт.

24

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Swept back axle 5/32" x 1 3/8"

2шт.

25

612884R1

HUB CAP

CAP - hub, front wheel, swept back axle

2шт.

26

483879R2

SPECIAL NUT

- wheel retaining, swept back axle

12шт.
