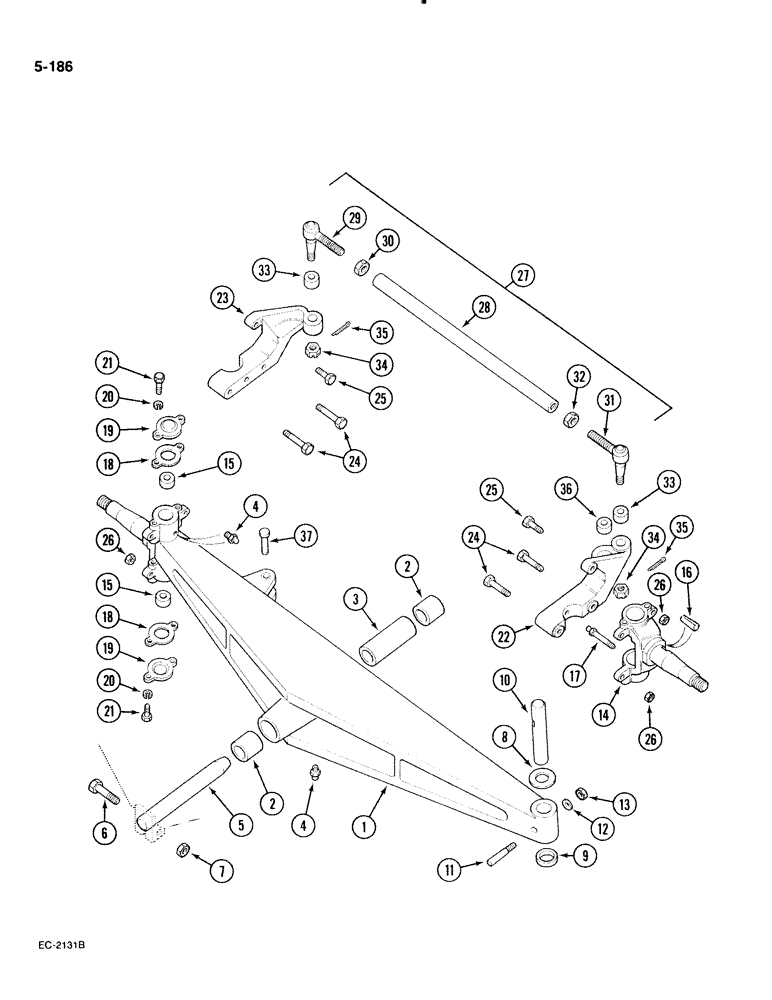

Запчасти Case IH 885 (5-186) - AXLE, FRONT, SWEPT BACK CAST, WITH FABRICATED BOLSTER (05) - STEERING

1

378502R22

AXLE

- front, complete, Includes: Ref. 2 and 3

1шт.

2

378813R1

BUSHING

2шт.

3

530975R2

SPACER

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg

3шт.

5

85999C1

PIN

- front axle pivot

1шт.

6

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch, grade 5, ZND

1шт.

7

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

61554R1

WASHER

SHIM - steering knuckle, light

1шт.

8

70586R1

SHIM

- steering knuckle, medium

1шт.

9

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING - thrust, steering knuckle

2шт.

10

70594R91

KIT

PIN - king, pivot

2шт.

11

62798H

KEY

- king pin

2шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

14

112775R11

STEERING KNUCKLE

KNUCKLE - steering, Includes: Ref. 15

2шт.

14

1213434C91

KNUCKLE

- steering, optional to 112775R11, Includes: Ref. 15

2шт.

15

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

BUSHING - steering knuckle

2шт.

16

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, 3/16" x 1/2", Type A

2шт.

17

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, short, 1/8 inch PTF

2шт.

18

70591R1

GASKET

- steering knuckle cap

4шт.

19

70590R1

CAP

- steering knuckle

4шт.

20

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21

51124V

SCREW

- steering knuckle cap

8шт.

22

378399R1

ARM

- steering knuckle, left

1шт.

23

378400R1

ARM

- steering knuckle, right

1шт.

24

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

- hex, 5/8 NF x 2-3/4 inch, grade 5

4шт.

25

271749

PLATE,Hex, 5/8" - 18 x 2 1/4", Gr 5

- hex, 5/8 NF x 2-1/4 inch, grade 5

2шт.

26

425-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NF, grade 5

6шт.

27

NSS

NOT SOLD SEPARAT

ROD - tie, complete assembly, Includes: Ref. 28 - 32

1шт.

28

70689C1

TUBE,1.188" OD, 37.72" Length

- connecting

1шт.

29

379327R91

END

- right, complete

1шт.

30

379329R1

LOCK NUT

- lock, right

1шт.

31

379326R91

END

- left, complete

1шт.

32

379328R1

LOCK NUT

- lock, left

1шт.

33

1332991C1

SEAL

- tie rod end

2шт.

34

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT - hex slotted, 5/8 inch NF, grade 5, tie rod retaining

2шт.

35

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

36

1970726C1

SEAL

- steering cylinder ball joint

1шт.

37

518505R1

HEADED PIN,3/4" x 3"

PIN - headed, 3/4 x 3 inch, steering cylinder

1шт.
