Запчасти Case IH 885 (5-184) - AXLE, FRONT, SWEPT BACK ADJUSTABLE, HIGH CLEARANCE BOLSTER WITHOUT CAB (05) - STEERING

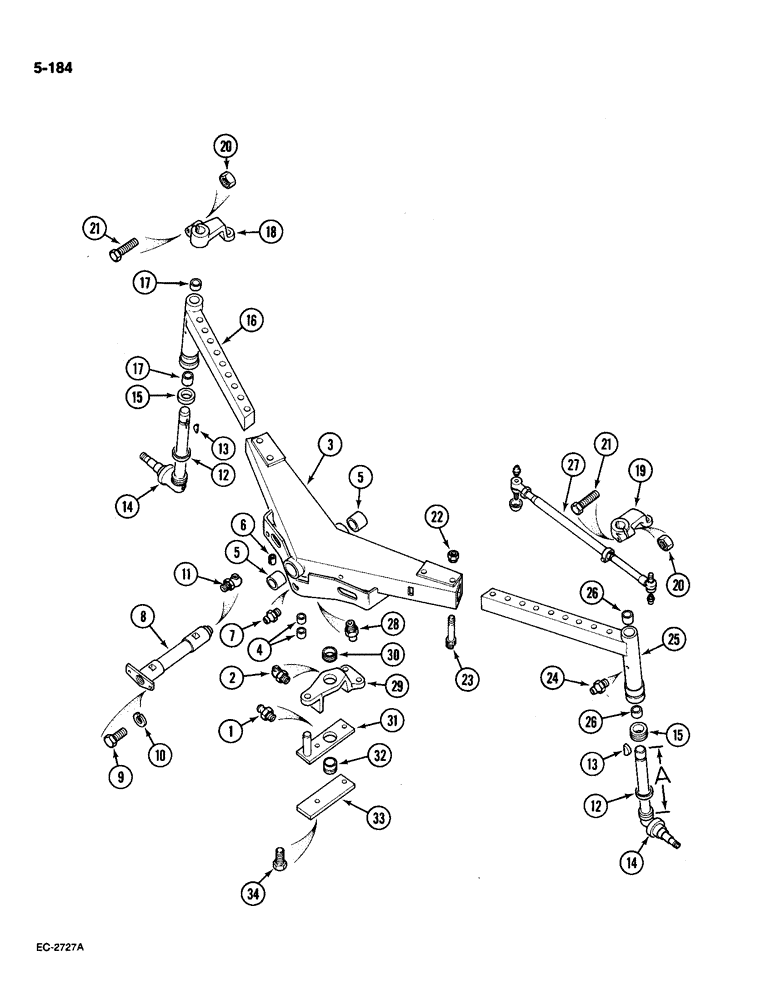

Схема запчастей Case IH 885 - (5-184) - AXLE, FRONT, SWEPT BACK ADJUSTABLE, HIGH CLEARANCE BOLSTER WITHOUT CAB (05) - STEERING
17
31
11
22
26
20
12
15
34
9
33
32
7
32
19
5
21
15
12
13
28
6
4
2
13
5
29
20
30
16
1
18
17
21
27
14
3
14
10
23
24
25
8
26

Артикул

Название

Примечание

Количество

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

539158R93

AXLE

- front center section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket, Replaces 376160R1

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

8

539128R1

SHAFT ASSY.

SHAFT - front axle pivot

1шт.

9

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

10

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 inch PTF

1шт.

12

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

14

405840R12

KNUCKLE

- steering, low spindle, 'A'

1шт.

15

405831R91

BEARING

- thrust, steering knuckle

2шт.

15

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING, Serial Range: optional-405831R91

2шт.

15

369131R91

THRUST BEARING

, Serial Range: optional-405831R91

2шт.

16

66702C91

EXTENSION

- front axle, right, Includes: Ref. 17

1шт.

17

376099R1

BUSHING

- front axle extension

2шт.

18

405837R1

ARM

- steering knuckle, right

1шт.

19

405836R1

ARM

- steering knuckle, left

1шт.

20

102637

NUT,1/2"-13, G5

2шт.

21

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

2шт.

22

405576R1

NUT

- front axle

4шт.

23

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

24

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

2шт.

25

66701C91

EXTENSION

- front axle, left, Includes: Ref. 26

1шт.

26

367099R1

BUSHING

- front axle extension

2шт.

27

NSS

NOT SOLD SEPARAT

ROD - tie, See Figure 5-194

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

29

405585R11

ARM

- center, power steering, Includes: Ref. 30

1шт.

30

379748R1

BUSHING

1шт.

31

405580R11

BAR ASSY.

BAR - power steering cylinder, Includes: Ref. 32

1шт.

32

379748R1

BUSHING

1шт.

33

67976C1

PLATE, LOCKING

STRIP - lock, steering center arm bolt

1шт.

34

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

Выбрано товаров: 36
