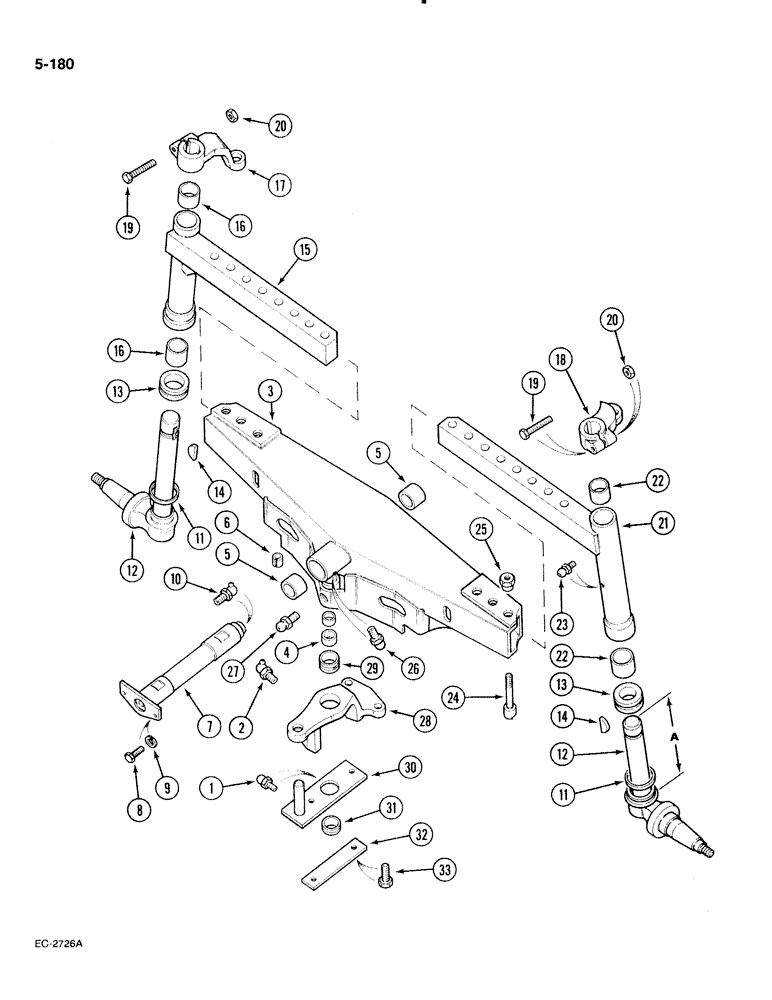

Запчасти Case IH 885 (5-180) - FRONT AXLE, STRAIGHT, HEAVY DUTY, HIGH CLEARANCE BOLSTER WITHOUT CAB (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

3116435R93

AXLE, FRONT

AXLE - front, center section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket, Replaces 405574R1

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

, Serial Range: optional-405574R1

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

539128R1

SHAFT ASSY.

SHAFT - front axle pivot

1шт.

7

99897C1

SHAFT

- front axle pivot

1шт.

Used with front mounted hydraulic pump

1шт.

8

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

9

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 inch PTF

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

1шт.

12

3125872R91

STEERING KNUCKLE

KNUCKLE - steering, low spindle 'A', Includes: Ref. 13- 14

1шт.

12

67526C91

KNUCKLE

- steering, high spindle 'A', Includes: Ref. 13- 14

1шт.

13

405831R91

BEARING

- thrust, steering knuckle

1шт.

13

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING, Serial Range: optional-405831R91

1шт.

13

369131R91

THRUST BEARING

, Serial Range: optional-405831R91

1шт.

14

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

15

3116476R91

EXTENSION ASSY.

EXTENSION - front axle, right, low spindle, Includes: Ref. 16

1шт.

Low profile tractor

1шт.

15

3116437R91

EXTENSION ASSY.

EXTENSION - front axle, right, high spindle, Includes: Ref. 16

1шт.

16

376099R1

BUSHING

- front axle extension

2шт.

17

67525C1

ARM

- steering knuckle, right

1шт.

18

67524C1

ARM

- steering knuckle, left

1шт.

19

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

2шт.

20

102637

NUT,1/2"-13, G5

2шт.

21

3116475R91

EXTENSION ASSY.

EXTENSION - front axle, left, low spindle, Includes: Ref. 22

1шт.

Low profile tractor

1шт.

21

3116436R91

EXTENSION ASSY.

EXTENSION - front axle, left, high spindle, Includes: Ref. 22

2шт.

22

376099R1

BUSHING

- front axle extension

2шт.

23

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

6шт.

25

405576R1

NUT

- front axle

6шт.

26

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

28

67499C91

ARM ASSY.

ARM - center, power steering, Includes: Ref. 29

1шт.

29

379748R1

BUSHING

1шт.

30

405580R11

BAR ASSY.

BAR - power steering cylinder, Includes: Ref. 31

1шт.

31

379748R1

BUSHING

1шт.

32

67976C1

PLATE, LOCKING

STRIP - lock, steering center arm bolt

1шт.

33

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.
