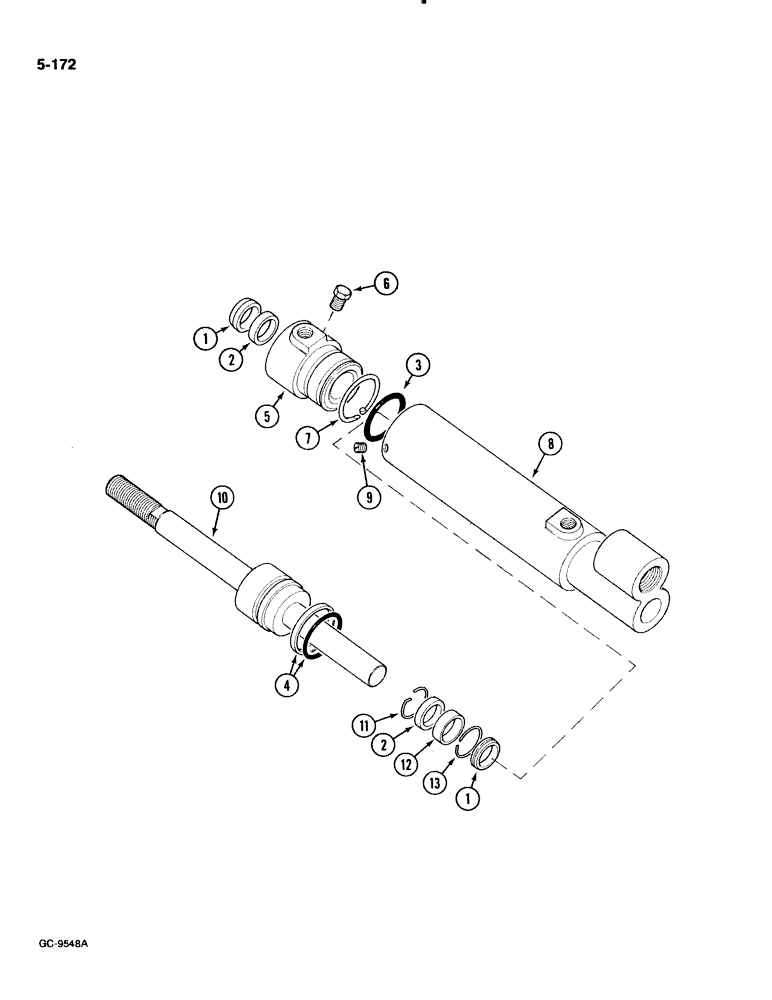

Запчасти Case IH 885 (5-172) - STEERING CYLINDER (05) - STEERING

742967C91

STEERING CYLINDER

CYLINDER - power steering, Includes: O-ring and seal service kit and Ref. 1 thru 13

1шт.

742970C91

GASKET KIT

KIT - service, O-ring and seal, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL

2шт.

2

NSS

NOT SOLD SEPARAT

SEAL

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

3229430R1

END

- guide top

1шт.

6

FOR444613

PLUG

- automotive hex head, 1/8 inch NPTF

1шт.

7

3147624R1

WIRE

WIRE - retaining

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER - tube

1шт.

9

934724R1

SET SCREW,Hex Skt, M5 x 6mm, Dog Pt

1шт.

10

742969C91

ROD ASSY.

ROD - piston

1шт.

11

3217744R1

RING, SNAP

RING - retaining

1шт.

12

3147619R1

THRUST RING

BUSHING

1шт.

13

3147620R1

RING, SNAP

RING - retaining

1шт.
