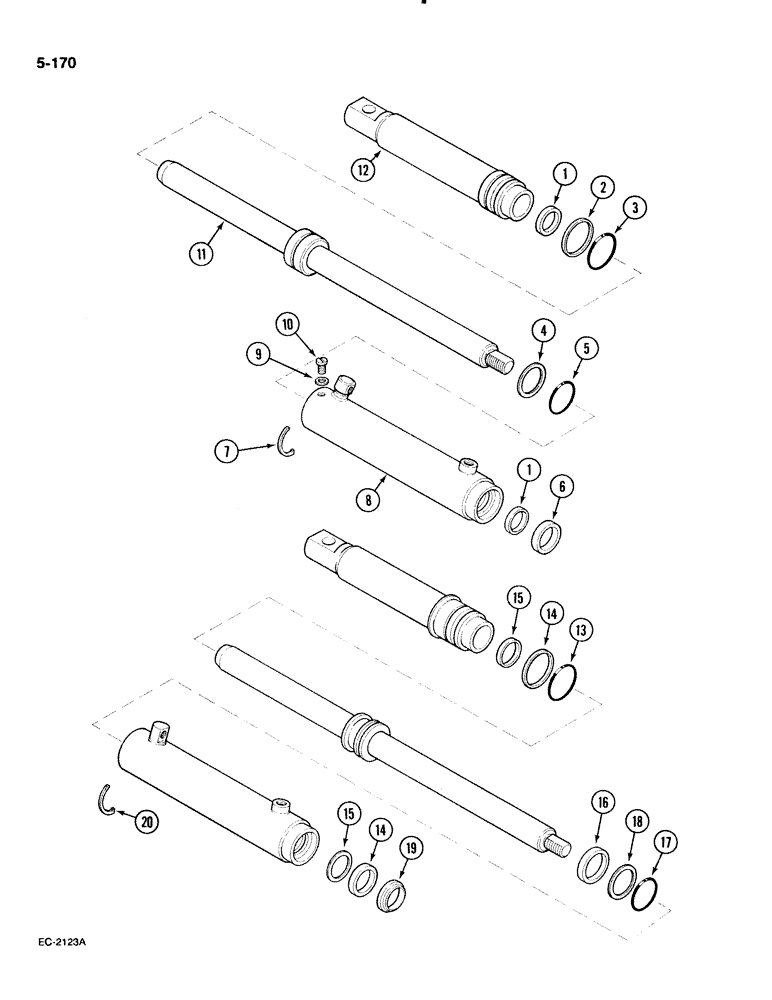

Запчасти Case IH 885 (5-170) - STEERING CYLINDER, SWEPT BACK CAST FRONT AXLE (05) - STEERING

3118502R92

CYLINDER

- power steering, Includes: O-ring and seal service kit and Ref. 1 thru 12

1шт.

536314R92

SERVICE KIT

KIT - service, O-ring and seal, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

2

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 x 2-1/8 inch, class 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1-3/4 x 2 inch, class 5

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

8

3118503R2

HYD TUBE,244.86, 38.10 mm Length

TUBE - steering cylinder

1шт.

9

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

436729

SCREW,Slotted Pan Hd, #10-24 x 5/16"

- pan, slotted, No. 10 x 5/16 inch

1шт.

11

536309R1

PISTON ROD

ROD - power steering

1шт.

12

536301R2

HEAD

- power steering

1шт.

1954043C1

CYLINDER

- power steering, optional to 3118502R93, Includes: cylinder seals service kit and Ref. 13 thru 20

1шт.

1954053C1

SEAL KIT

- service, cylinder seals, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL

2шт.

15

NSS

NOT SOLD SEPARAT

RING - guide

2шт.

16

NSS

NOT SOLD SEPARAT

RING - guide

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

19

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

20

1954141C1

ELECTRICAL WIRE

WIRE - lock

1шт.
