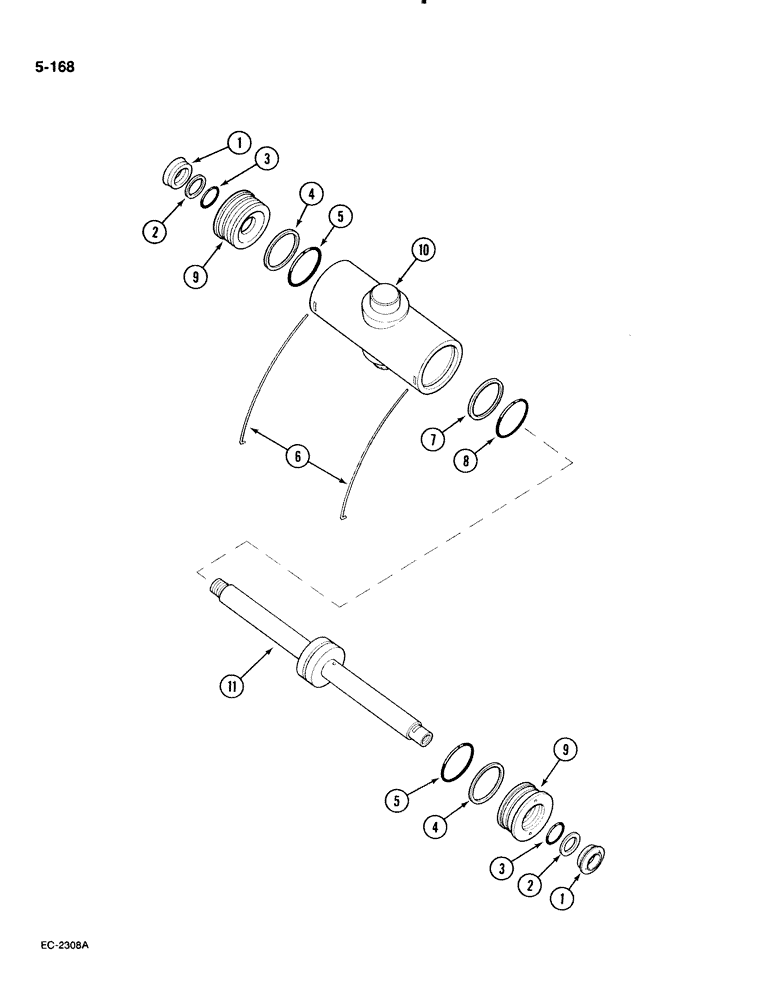

Запчасти Case IH 885 (5-168) - POWER STEERING CYLINDER, 2 WHEEL DRIVE TRACTORS (05) - STEERING

549667R92

STEERING CYLINDER

CYLINDER - power steering, Includes: O-ring and seal service kit and Ref. 1 thru 11

1шт.

84336125R

REMAN-HYD CYLINDER

885 (1/86-12/90), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

55355C91

GASKET KIT

KIT - service, O-ring and seal, Includes: Ref. 1 - 8

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER - piston rod

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

- piston rod back-up

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 inch, class 6, piston rod

2шт.

4

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

- back-up, rear head

2шт.

5

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- 2-1/4 x 2-1/2 inch, class 5, rear head

2шт.

6

385133R1

RETAINING WIRE

WIRE - locking

2шт.

7

379959R1

RING,Square, 3.17mm Thk x 58mm ID

- piston seal

1шт.

8

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

- 2-1/16 x 2-1/4 inch, class 6, piston seal

1шт.

9

400591R1

HEAD

- rear

2шт.

10

400587R1

HYD CYL SLEEVE

BODY - hydraulic cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

885 (1/86-12/90), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

11

549668R2

PISTON ROD

ROD - piston

1шт.
