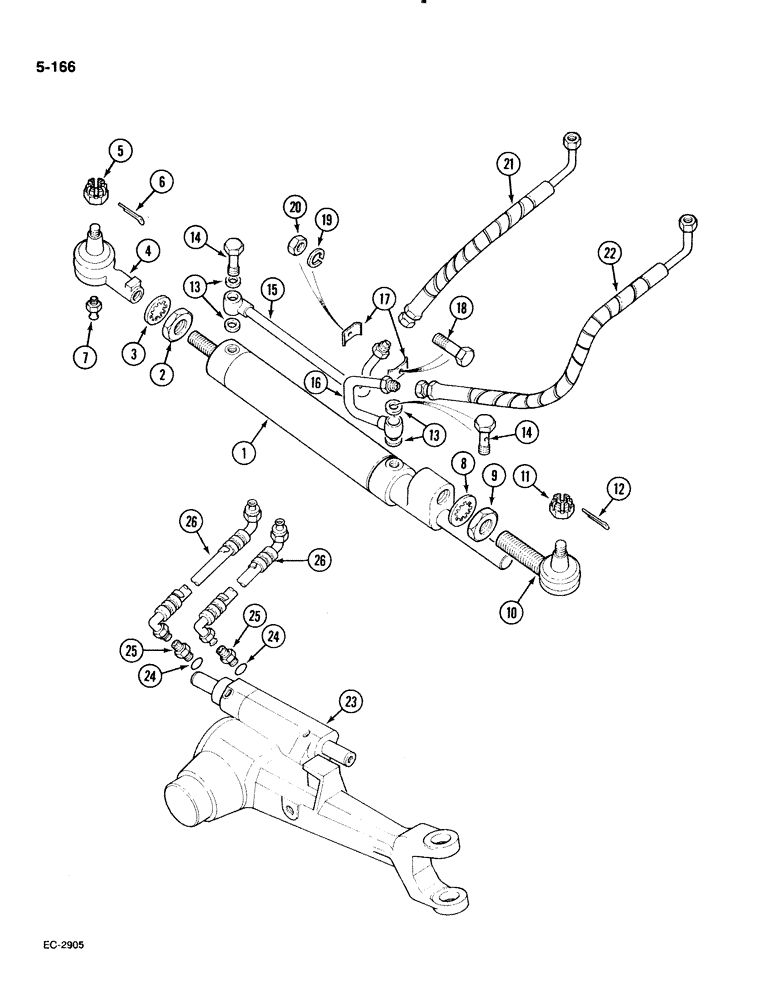

Запчасти Case IH 885 (5-166) - STEERING CYLINDERS AND CONNECTIONS, 4 WHEEL DRIVE (05) - STEERING

1

742967C91

STEERING CYLINDER

CYLINDER - power steering, See Figure 5-172, Serial Range: -18001

1шт.

1

1282141C91

CYLINDER

- power steering, optional to 742967C91, Serial Range: -18001

1шт.

2

934262R1

THIN NUT,Thin, M24 x 1.5

- hex jam, M24, Serial Range: -18001

1шт.

3

934846R1

LOCK WASHER,Serr, M25

WASHER - lock, internal tooth, 25 mm, Serial Range: -18001

1шт.

4

742968C91

BALL JOINT

JOINT - ball, Includes: Ref. 5 - 7, Serial Range: -18001

1шт.

5

934165R1

NUT,M20 x 1.5

NUT - hex slotted, M20, Serial Range: -18001

1шт.

6

932956R1

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm, Serial Range: -18001

1шт.

7

712992R91

LUBE NIPPLE

LUBRICATOR - grease, straight, Serial Range: -18001

1шт.

8

934072R1

LOCK WASHER,Serr, M31

WASHER - lock, internal tooth, 31 mm, Serial Range: -18001

1шт.

9

934070R1

THIN NUT,Thin, M30 x 1.5

- hex jam, M30, Serial Range: -18001

1шт.

10

3141529R91

BALL JOINT

JOINT - ball, Includes: Ref. 11 - 13, Serial Range: -18001

1шт.

11

934165R1

NUT,M20 x 1.5

NUT - hex slotted, M20, Serial Range: -18001

1шт.

12

932956R1

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm, Serial Range: -18001

1шт.

13

933155R1

SEALING RING,M16 x 20 x 1.5

, Serial Range: -18001

4шт.

14

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW - hollow, M16, Serial Range: -18001

2шт.

15

3129981R1

TUBE ASSY.

TUBE - steering cylinder, left, Serial Range: -18001

1шт.

16

3129982R1

TUBE ASSY.

TUBE - steering cylinder, right, Serial Range: -18001

1шт.

17

3129983R1

CLAMP

- tube, Serial Range: -18001

2шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

- hex, M6 x 25 mm, class 8.8, Serial Range: -18001

1шт.

19

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm, Serial Range: -18001

1шт.

20

30281R1

NUT,M6, Cl 10

- hex, M6, class 10, Serial Range: -18001

1шт.

21

3129984R1

HOSE ASSY.

HOSE - hydraulic, steering cylinder, left, Serial Range: -18001

1шт.

22

3129985R1

HOSE ASSY.

HOSE - hydraulic, steering cylinder, right, Serial Range: -18001

1шт.

23

NSS

NOT SOLD SEPARAT

CYLINDER - steering, APL-330 axle, See Figure 5-174, Start Serial: 18001

1шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, Start Serial: 18001

2шт.

25

83357C1

FITTING

UNION - straight connector, Start Serial: 18001

2шт.

26

87884C1

HOSE,9.53mm ID x 711mm L, SAE 100R1

- steering cylinder, Start Serial: 18001

2шт.
