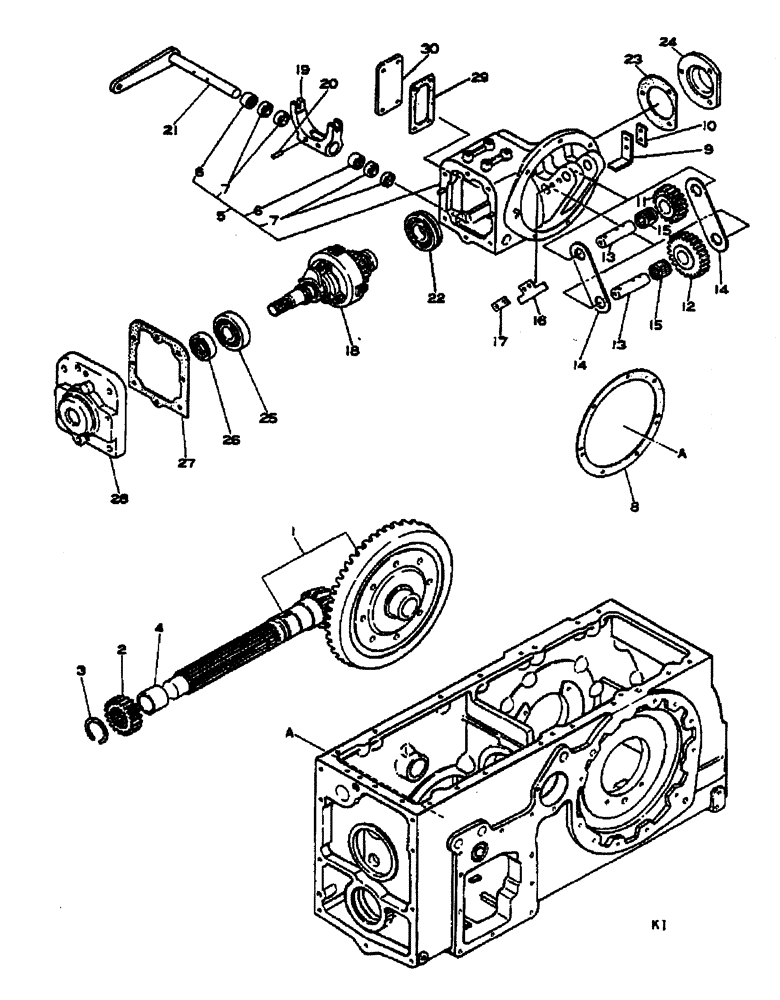

Запчасти Case IH 884 (07-078) - FRONT DRIVE P T O - 4 WHEEL DRIVE (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
984505C2
SHAFT
SET, BEVEL GEAR, BEVEL DRIVE -53T, MAIN -12T
1шт.
2
1002589C3
GEAR
20T
1шт.
3
1014674C1
RING, SNAP
RING SNAP
1шт.
4
1002604C1
SPACER
MAIN SHAFT
1шт.
5
1004387C91
HOUSING ASSY.
P T O, INCLUDES: SCREWS AND PINS
1шт.
101896R1
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8, Full Thd
5шт.
24840R1
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
19879R1
SPLIT PIN/SAFETY PIN
4шт.
6
1004328C1
OIL SEAL
OIL
1шт.
7
1002602C1
NEEDLE BEARING,22mm ID x 28mm OD x 12mm
NEEDLE
2шт.
8
984791C1
GASKET
0 016 -0 4 MM
1шт.
8
984106C1
GASKET
0 032 -0 8 MM
1шт.
8
1004391C1
GASKET
1 0
1шт.
9
1002610C1
STOP
INCLUDES: SCREWS
1шт.
25228R1
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
5/16-18 X 3/4
2шт.
10
984169C1
SUPPORT
SCREW LOCK
1шт.
11
1002611C3
GEAR
19T
1шт.
12
1002984C2
GEAR
27T
1шт.
13
1014837C11
PIN ASSY.
IDLER GEAR
2шт.
14
1002633C1
WASHER
THRUST
2шт.
15
1002618C1
NEEDLE BEARING,28mm ID x 40mm OD x 30mm
NEEDLE
2шт.
16
1002634C1
STOP
IDLER GEAR, INCLUDES: SCREWS
1шт.
25955R1
BOLT,Hex, 5/16" - 18 x 5/8", Gr 8
5/16-18 X 5/8
2шт.
17
984169C1
SUPPORT
SCREW LOCK
1шт.
18
1002619C96
CLUTCH ASSEMBLY
FOR COMPONENTS SEE LISTS OF PARTS UNDER DETAILS OF P T O CLUTCH
1шт.
19
1002597C2
FORK
CLUTCH RELEASE
1шт.
20
617938R1
PIN,5/16" x 1 3/8", Coiled
2шт.
21
1004319C2
SHAFT ASSY.
1шт.
22
ST292
BALL BEARING,35 mm ID x 80 mm OD x 21 mm
BALL
1шт.
23
1002620C1
GASKET
1шт.
24
1002892C1
COVER
REAR, INCLUDES: SCREWS
1шт.
140483H
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd
3шт.
25
ST291
BEARING, BALL,35mm ID x 80mm OD x 21mm W
1шт.
26
984154C1
SEAL
OIL
1шт.
27
1002622C1
GASKET
1шт.
28
1002615C2
COVER
FRONT, INCLUDES: SCREWS
1шт.
24840R1
BOLT,Hex, 3/8" - 16 x 1", Gr 8
6шт.
29
3129025R1
GASKET
1шт.
30
1002613C1
COVER
SIDE, INCLUDES: SCREWS
1шт.
24839R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
4шт.
31
1004930C1
SPARE PART PLUG
1шт.
1004930C1
SPARE PART SNAP, NOT ILLUSTRATED
1шт.
Выбрано товаров: 42
