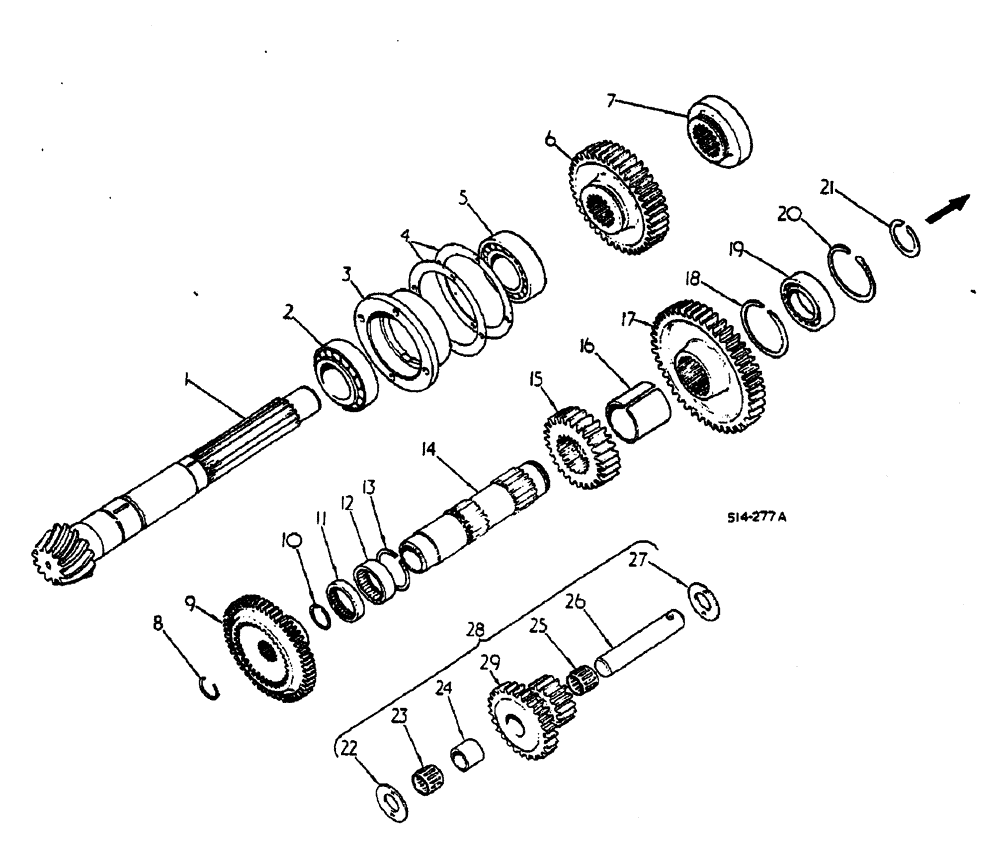

Запчасти Case IH 884 (07-076) - RANGE TRANSMISSION - IN REAR FRAME - 4 WHEEL DRIVE (04) - Drive Train

NSS

NOT SOLD SEPARAT

SET, BEVEL GEARS MATCHED 12/53T, CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

NSS

NOT SOLD SEPARAT

GEAR SEE FRONT DRIVE PTO

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, MAIN SHAFT REAR

1шт.

2

399824R91

ROLLER BEARING

ASSY, MAIN SHAFT REAR, OPTIONAL

1шт.

3

399825R1

BEARING CUP

CAGE, MAIN SHAFT BRG, INCLUDES: SCREWS

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

PACKAGE, MAIN SHAFT BRG CAGE, SERVICE, CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

SHIM

2шт.

NSS

NOT SOLD SEPARAT

SHIM

5шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, MAIN SHAFT FRONT

1шт.

5

399822R91

ROLLER BEARING

ASSY, MAIN SHAFT FRONT, OPTIONAL

1шт.

6

399461R1

GEAR

FWD REVERSE SLIDING -40T, SYNCHROMESH DRIVE TRACTORS, SLOW SPEED DRIVE TRAIN TYPE A -

1шт.

6

399462R1

GEAR

FWD REVERSE SLIDING -42T, SYNCHROMESH DRIVE TRACTORS, FAST SPEED DRIVE TRAIN TYPE B

1шт.

7

399830R2

COLLAR

HI-SPEED SHIFT, SYNCHROMESH DRIVE TRAIN

1шт.

8

533266R1

RING, SNAP

RING SNAP IPTO FRONT DRIVEN SHAFT RET

1шт.

9

404218R1

GEAR

PUMP DRIVE -55T, TRACTORS W/DUAL SPEED

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

PUMP DRIVE GEAR RET

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR

1шт.

11

527747R91

BEARING, NEEDLE

PUMP DRIVE GEAR, OPTIONAL

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT

1шт.

12

527746R91

BEARING, NEEDLE

COUNTERSHAFT, OPTIONAL

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

LO-RANGE DRIVING GEAR RET

1шт.

14

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

15

404100R1

PINION

GEAR, LO-RANGE DRIVING -27T, SYNCHROMESH DRIVE TRACTORS, SLOW SPEED DRIVE TRAIN TYPE A

1шт.

15

103150C1

PINION

GEAR, LO-RANGE DRIVING -24T, SYNCHROMESH DRIVE TRACTORS, FAST SPEED DRIVE TRAIN TYPE B

1шт.

16

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

17

404097R1

GEAR

CONSTANT MESH -46T

1шт.

18

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

19

3125123R91

BEARING, ROLLER,49.994 mm ID x 80.0285 mm OD x 15.94 mm

COUNTERSHAFT CYLINDRICAL

1шт.

19

1201744C91

ROLLER BEARING

COUNTERSHAFT CYLINDRICAL ROLLER, OPTIONAL

1шт.

20

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

21

327068R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG EXT

1шт.

22

3112846R1

THRUST WASHER

IDLER

1шт.

23

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS

1шт.

23

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE, SYNCHROMESH DRIVE TRACTORS, OPTIONAL

1шт.

24

3112845R1

SPACER

IDLER BEARING

1шт.

25

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS

1шт.

25

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS, OPTIONAL

1шт.

26

399838R3

SHAFT

REVERSE IDLER, SYNCHROMESH DRIVE TRACTORS, INCLUDES: PIN

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

3112846R1

THRUST WASHER

IDLER

1шт.

28

NOT APPLICABLE

1шт.

29

70298C1

PINION

GEAR, REVERSE IDLER 2/ AND -24T, FAST SPEED DRIVE TRAIN TYPE B

1шт.

29

3112843R1

GEAR

REVERSE IDLER 18 AND -27T, SLOW SPEED DRIVE TRAIN TYPE A

1шт.
