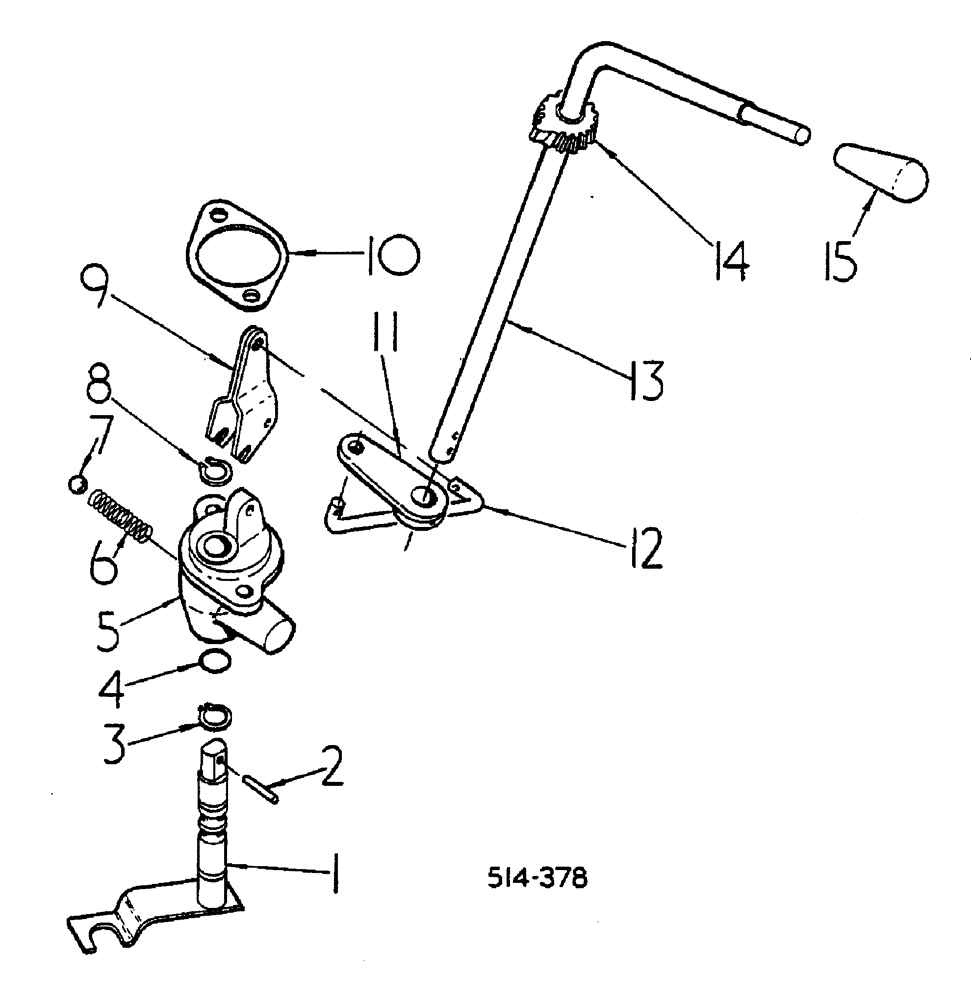

Запчасти Case IH 884 (07-074) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train

1

531553R1

LEVER ASSY.

TA CONTROL

1шт.

2

20702R1

DOWEL,3/16" x 3/4"

PIN, 3/16 X 3/4

1шт.

3

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

1шт.

5

402595R2

SUPPORT

TA CONTROL SHAFT, INCLUDES: SCREWS AND WASHERS

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

6

402596R1

SPRING

TA CONTROL

1шт.

7

17014R1

BALL

7/16 CR STL

1шт.

8

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

1шт.

9

402589R1

LEVER ASSY.

TA CONTROL, INCLUDES: PINS AND WASHER

1шт.

22731D

SPLIT PIN/SAFETY PIN

1/4 X 29/32 ROD END

1шт.

16558R1

WASHER

17/64 X 5/8 X 036

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

10

401623R1

GASKET

TA CONTROL SHAFT SUPPORT

1шт.

11

402585R1

ARM

TA CONTROL, INCLUDES: PIN

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

12

402588R1

ROD

TA CONTROL, INCLUDES: WASHERS AND PINS

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X 051

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

13

1500441C1

ARM

T A CAB NO 183150 UP, SUPER DE-LUXE CAB ONLY

1шт.

13

3121402R1

ROD

TA CONTROL HANDLE, INCLUDES: CLUTCH, SHAFT AND BUSHING

1шт.

3125534R1

CLUTCH ASSEMBLY

PIECE T A

1шт.

3125535R1

SHAFT HOUSING

1шт.

3125536R1

BUSHING

UP TO CAB NO 183149, STILL REQ'ED FOR M/C'S WITHOUT DE-LUXE CAB

1шт.

14

528290R1

GUIDE RING

COLLAR, TA CONTROL HANDLE, INCLUDES: SCREWS

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX HD SOC F/PT

1шт.

15

3129518R1

KNOB

T A CONTROL HANDLE ROD, CAB NO 183150 UP

1шт.

15

402584R1

BUTTON

TA CONTROL HANDLE ROD, UP TO CAB NO 183149, STILL REQ'D FOR M/C'S WITHOUT SUPER DE-LUXE CAB, INCLUDES: WASHER AND PIN

1шт.

Q5035

WASHER

1/2 X 1 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1/8 X 1

1шт.

533594R1

DECAL

PRODUCT-GRAPHIC, T A CONTROL, NOT ILLUSTRATED

1шт.

1093324R1

PRODUCT GRAPHIC

DECELERATION WARNING, NOT ILLUSTRATED

1шт.
