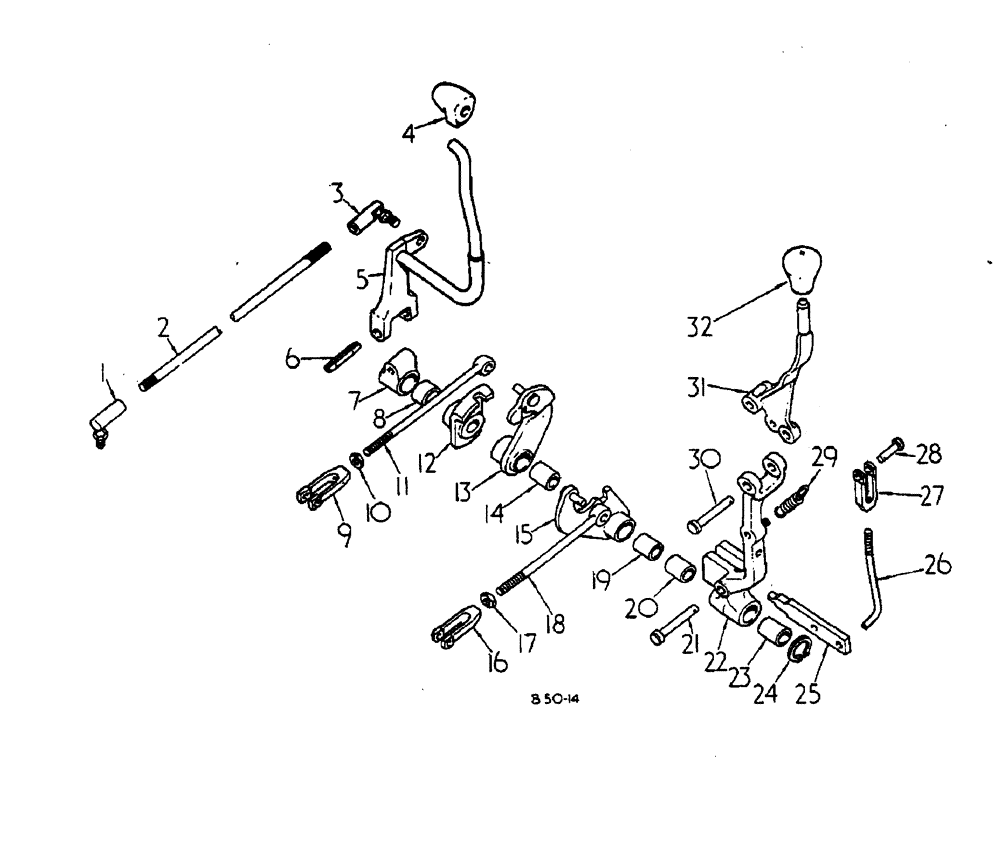

Запчасти Case IH 884 (07-062) - TRANSMISSION CONTROLS-SYNCHROMESH DRIVE- 884 (04) - Drive Train

1

3123927R1

JOINT

3/8 UNF BALL, INCLUDES: NUT

1шт.

3048059R91

LOCK NUT

3/8 UNF NYLON INSERT

1шт.

2

3123926R1

ROD

SPEED SHIFT LEVER

1шт.

3

3123928R1

JOINT

3/8 UNF L H BALL, INCLUDES: NUTS

1шт.

3048059R91

LOCK NUT

3/8 UNF NYLON INSERT

1шт.

4

379022R2

KNOB

SPEED SHIFT LEVER

1шт.

5

530532R2

LEVER ASSY.

SPEED SHIFT

1шт.

6

366281R1

PIN,3/8" x 2", Coiled

1шт.

7

530932R1

HUB ASSY.

TRANSMISSION SHIFT HAND LEVER, INCLUDES: WASHER

1шт.

615192R1

WASHER

29/32 X 1-1/4 X 0299

1шт.

8

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

9

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/4 ROD END

1шт.

9

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 X 2-1/4 SHORT ADJ ROD

1шт.

9

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 SHORT ADJ ROD END, OPTIONAL, INCLUDES: PINS AND WASHER

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 ROD END

1шт.

Q3641

WASHER

13/32 X 3/4 X 024

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

10

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

528141R1

ROD ASSY.

RANGE SHIFT REAR

1шт.

12

528123R1

PIVOT ASSY.

GATE ASSY, RANGE SHIFT, INCLUDES: PIN

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

13

528126R2

LEVER ASSY.

IDLER SHAFT INNER, INCLUDES: WASHER AND PIN

1шт.

Q3641

WASHER

13/32 X 3/4 X 020

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

14

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

15

528129R1

LEVER ASSY.

IDLER SHAFT OUTER, INCLUDES: WASHER AND PIN

1шт.

Q3641

WASHER

13/32 X 3/4 X 020

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

16

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/4 ROD END

1шт.

16

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 X 2-1/4 ROD END

1шт.

16

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 X 2-3/16 SHORT ADJ ROD END, OPTIONAL, INCLUDES: PINS AND WASHER

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 ROD END

1шт.

Q3641

WASHER

13/32 X 13/16 X 051

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

17

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

528139R1

ROD ASSY.

RANGE SHIFT FRONT

1шт.

19

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

20

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

21

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 X 2-1/4 STD HD

1шт.

22

530933R2

LEVER ASSY.

RANGE SHIFT, INCLUDES: WASHERS AND PINS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 051

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

24

454331R1

SNAP RING,#87, Ext

Shift lever

1шт.

25

528134R1

LATCH

RANGE SHIFT LEVER

1шт.

26

528135R1

ROD

RANGE SHIFT LEVER, INCLUDES: WASHER AND PIN

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 051

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

27

104037

CLEVIS

5/16-24 X 2-1/4 ROD END

1шт.

27

161002C1

NO LONGER SERVICED

CLEVIS CLEVIS, 5/16-24 X 2-1/4 ROD END, OPTIONAL

1шт.

28

39374D

CLEVIS PIN,5/16" x 1 1/16"

5/16 X 1-1/16 ROD END

1шт.

29

528136R1

SPRING

LEVER SHIFT RETURN

1шт.

30

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 X 2-1/4 STD HD

1шт.

31

3121199R1

LEVER

RANGE SHIFT UPPER

1шт.

32

3121549R1

KNOB

KNOB, RANGE SHIFT UPPER LEVER

1шт.
