Запчасти Case IH 884 (07-050) - CLUTCH CONTROLS (04) - Drive Train

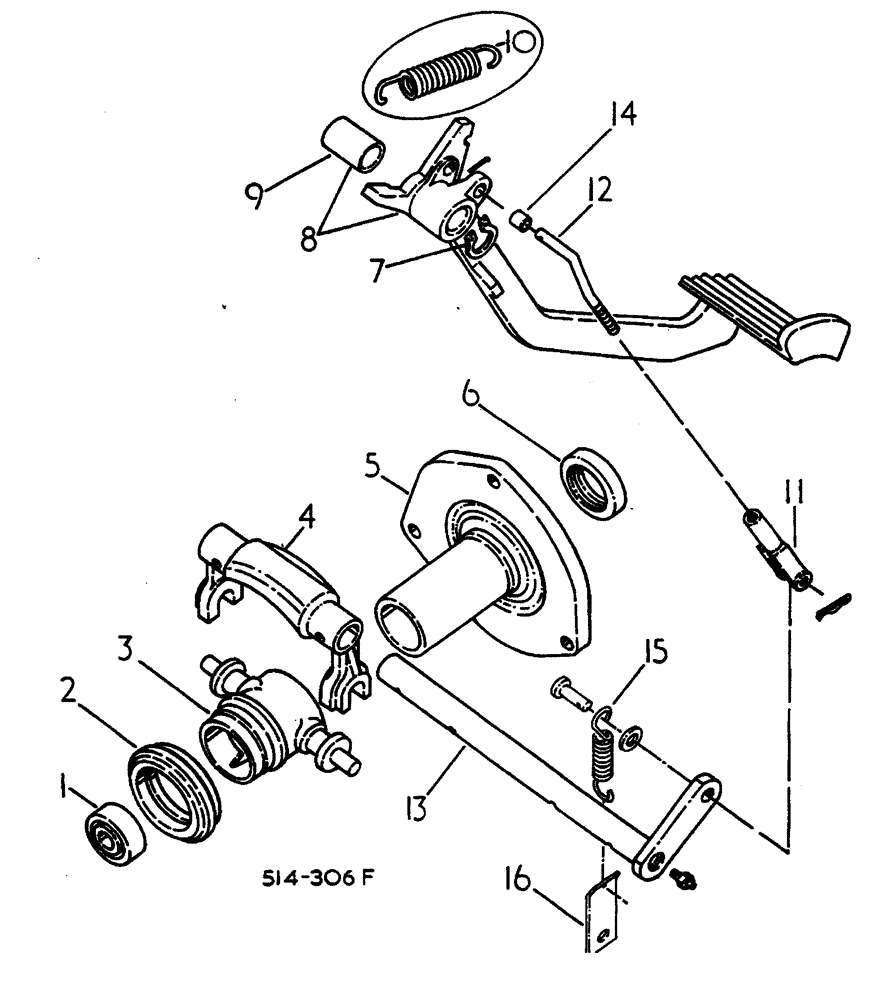

Схема запчастей Case IH 884 - (07-050) - CLUTCH CONTROLS (04) - Drive Train
3
6
13
12
15
7
14
2
9
16
11
4
8
10
1
5

Артикул

Название

Примечание

Количество

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

CLUTCH PILOT

1шт.

1

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

CLUTCH PILOT

1шт.

1

70127C91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

CLUTCH PILOT

1шт.

1

70295C91

BALL BEARING

CLUTCH PILOT, OPTIONAL

1шт.

2

158125C92

BEARING, BALL

CLUTCH RELEASE

1шт.

3

105445C1

BUSHING

SLEEVE, CLUTCH RELEASE

1шт.

4

398342R1

FORK

CLUTCH RELEASE, INCLUDES: PINS

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

71229C1

SLIPPER

CARRIER, CLUTCH RELEASE SLEEVE, INCLUDES: SCREWS AND WASHERS

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 X 1-3/8 HEX HD PLAIN

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 065)

3шт.

6

108982C1

OIL SEAL

RELEASE SLEEVE CARRIER

1шт.

6

108735C1

OIL SEAL

RELEASE SLEEVE CARRIER OIL OPTIONAL

1шт.

7

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

8

1500212C92

PEDAL ASSY.

CLUTCH W/BUSHING, INCLUDES: WASHER

1шт.

23183R1

WASHER

29/32 X 1-3/8 X 054

1шт.

9

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

1шт.

10

399743R1

SPRING

CLUTCH PEDAL RETURN, INCLUDES: SCREW AND NUT

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HEX HD DV PT SET

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

Up to 885/2000

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/2 LIGHT ADJ ROD END, INCLUDES: NUT AND PINS

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

3114469R1

SPLIT PIN/SAFETY PIN

ROUND COT

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END, UP TO 885/2000

1шт.

12

71086C1

ROD ASSY.

CLUTCH OPERATING, INCLUDES: PIN

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

13

398237R3

SHAFT ASSY.

CLUTCH RELEASE, INCLUDES: FITTING

1шт.

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 DRIVE TYPE 45 DEG LUB

2шт.

14

1212847C1

BUSHING

CLUTCH OPERATING ROD, UP TO 885/2000

1шт.

15

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

CLUTCH OPERATING ROD, 885/2001 UP

1шт.

16

1500587C1

SPRING

BEARING PRE-LOAD, INCLUDES: PIN AND WASHER

1шт.

74158H

CLEVIS PIN,3/8" x 1.344"

3/8 X 1 344 ROD END

1шт.

120394

WASHER,3/8", SAE

406 X 812 X 051, 885/2001 UP

1шт.

17

1500594C1

PLATE

SPRING ANCHOR, INCLUDES: SCREW AND WASHER

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

885/2001 up

1шт.

Выбрано товаров: 37
