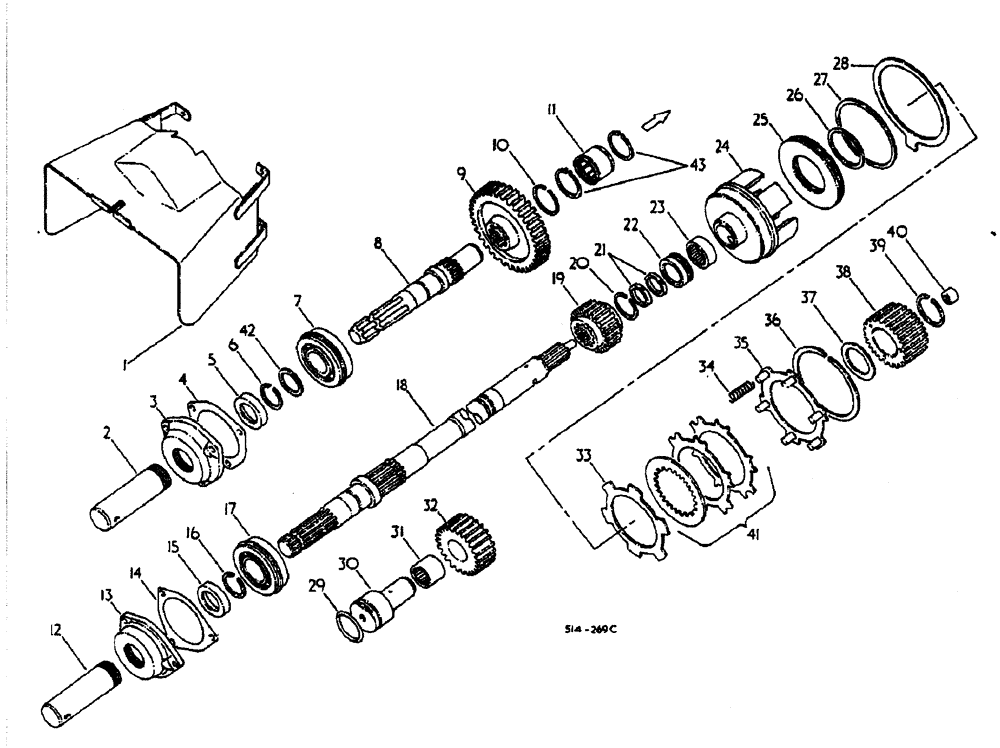

Запчасти Case IH 884 (07-040) - INDEPENDENT POWER TAKE OFF - DUAL SPEED (04) - Drive Train

NSS

NOT SOLD SEPARAT

INDEPENDENT POWER TAKE OFF, 6 SPLINE TOP, AND 6 SPLINE BOTTOM SHAFT

1шт.

NSS

NOT SOLD SEPARAT

INDEPENDENT POWER TAKE OFF, 6 SPLINE TOP, AND 21 SPLINE BOTTOM SHAFT

1шт.

1

401734R1

GUARD ASSY.

SHIELD, IPTO SAFETY, INCLUDES: SCREW

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

2

406808R1

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

3

401725R2

FLANGED BEARING

IPTO SHAFT BRG, UP TO 1425

1шт.

3

1500086C1

FLANGED BEARING

IPTO SHAFT BRG, 1426 UP, INCLUDES: SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67648C91

BEARING

SHAFT BALL

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT, UP TO 1425

1шт.

8

1500087C1

SHAFT

UPPER OUTPUT, 1426 UP

1шт.

9

66192C1

GEAR

UPPER DRIVEN -36T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

SHAFT, OPTIONAL, UP TO 1425

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

SHAFT, CAGED, 1426 UP

1шт.

12

406808R1

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

13

401725R2

FLANGED BEARING

IPTO SHAFT BRG, UP TO 1425

1шт.

13

1500086C1

FLANGED BEARING

IPTO SHAFT BRG, 1426 UP, INCLUDES: SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg

1шт.

17

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

17

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

17

67648C91

BEARING

SHAFT BALL

1шт.

18

66485C1

SHAFT ASSY.

1000 RPM 6 SPLINE

1шт.

18

66180C2

SHAFT ASSY.

1000 RPM - 21 SPLINE

1шт.

19

404232R1

GEAR

LOWER SHAFT DRIVE -21T

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

LOWER SHAFT

1шт.

24

66068C1

GEAR

CLUTCH CUP -44T, W/SIDE DRIVE P T O

1шт.

24

3125149R1

CUP

CLUTCH, W/OUTSIDE DRIVE P T O, INCLUDES: PIN

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

31

528105R91

BEARING, NEEDLE

IDLER SHAFT, OPTIONAL

1шт.

32

401727R1

PINION

GEAR, IDLER -24T

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

34

66182C1

SPRING

PISTON RETURN

6шт.

35

66186C1

PLATE

ASSY, CLUTCH BACKING, INCLUDES: PINS

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

40

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT, OPTIONAL

1шт.

41

3125257R91

PACKAGE

CLUTCH PLATE, SERVICE, CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

DISC

6шт.

NSS

NOT SOLD SEPARAT

PLATE

5шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

42

1500085C1

WASHER

1шт.

43

202307R1

SNAP RING,#206, Ext

2шт.

1093098R1

PRODUCT GRAPHIC

SPEED CHART, NOT ILLUSTRATED

1шт.
