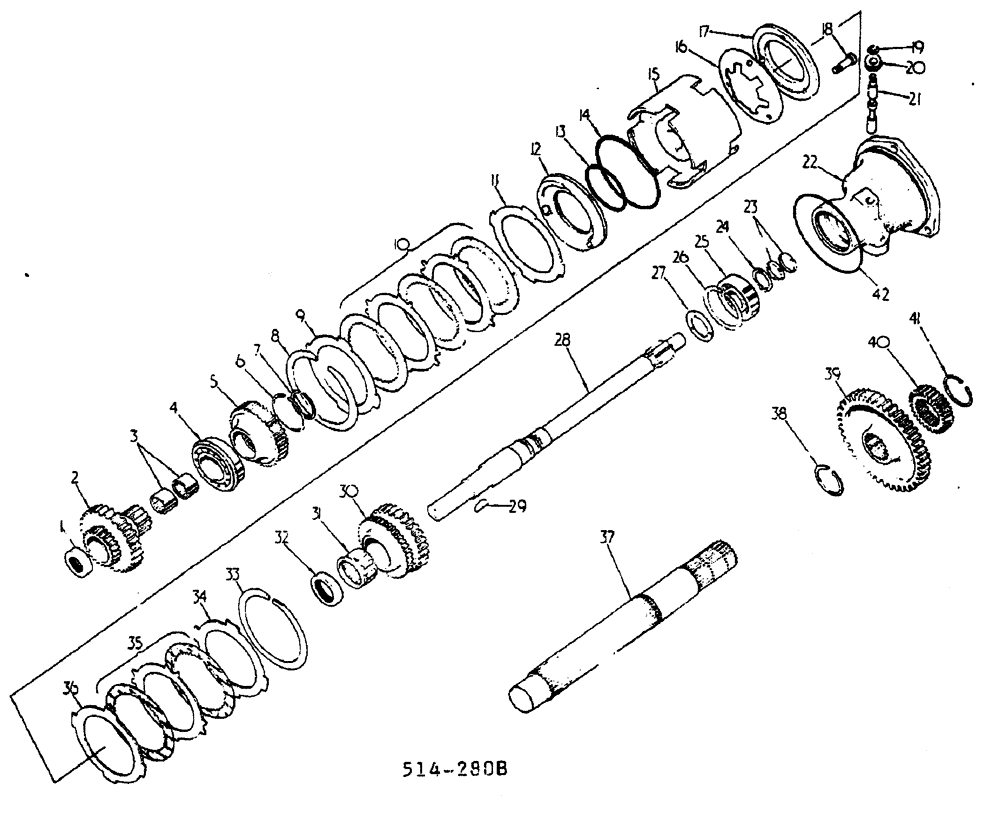

Запчасти Case IH 884 (07-034) - TORQUE AMPLIFIER - SYNCHROMESH DRIVE (04) - Drive Train

1

3118322R91

BEARING, NEEDLE

1шт.

2

3118321R2

PINION

GEAR, DIRECT DRIVE HUB -28T

1шт.

3

550839R91

BEARING, NEEDLE

CLUTCH SHAFT

2шт.

3

531436R91

NEEDLE BEARING

CLUTCH SHAFT NEEDLE, OPTIONAL

2шт.

4

70126C91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

DIRECT DRIVE GEAR

1шт.

4

42347D

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

398323R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

3067617R91

BEARING, BALL

DIRECT DRIVE GEAR

1шт.

4

3066862R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

3066860R91

BALL BEARING

DIRECT DRIVE GEAR, OPTIONAL

1шт.

5

404199R3

SPROCKET ASSY.

CARRIER, DIRECT DRIVE CLUTCH DISC

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

DISC CARRIER RETAINING

1шт.

7

583976R1

SNAP RING,#125, 1.179", Ext

RING, CLUTCH CUP RETAINING SNAP

1шт.

8

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

9

402569R1

PLATE

CLUTCH BACKING

1шт.

10

534936R92

PACKAGE

TA CLUTCH PLATE -SERVICE, CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

PLATE

5шт.

NSS

NOT SOLD SEPARAT

PLATE

3шт.

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

11

402572R1

PLATE

PISTON BACKING

1шт.

12

402570R1

PISTON

DIRECT DRIVE CLUTCH

1шт.

13

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

CLUTCH PISTON INNER SEALING

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON OUTER SEALING

1шт.

15

538989R2

CUP

DIRECT DRIVE CLUTCH

1шт.

16

402574R1

BELLEVILLE WASHER

BELLEVILLE

2шт.

17

402573R1

PLATE

CLUTCH LOCK-UP PRESSURE

1шт.

18

402575R1

BOLT,1/4" - 28 x 1-5/16"

PISTON RETURN, INCLUDES: NUTS AND WASHERS

3шт.

65240C1

SQUARE NUT

1/4-28 SQ MACH SCREW

3шт.

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

3шт.

19

896045R1

SNAP RING,#37, Ext

1шт.

20

531539R1

COLLAR

TA CONTROL

1шт.

21

536975R1

STEM

TA CONTROL

1шт.

22

531540R4

CAGE

ASSY, IPTO AND CLUTCH CUP RETAINER

1шт.

23

406275R1

RING

CLUTCH SHAFT PISTON

2шт.

24

359141R1

RING, SNAP

RING SNAP CLUTCH SHAFT BRG OUTER RETAINING

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

CLUTCH SHAFT

1шт.

25

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

CLUTCH SHAFT

1шт.

25

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT

1шт.

25

71270C91

BEARING, BALL

CLUTCH SHAFT, OPTIONAL

1шт.

26

377911R1

RING, SNAP

RING SNAP CLUTCH SHAFT BRG INNER RETAINING

1шт.

27

402562R1

THRUST WASHER

CLUTCH SHAFT

1шт.

28

1502173C91

SHAFT ASSY.

CLUTCH, INCLUDES: SCREWS

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

1/4-20 X 1/4 HEX SOC HD F PT

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4-20 X 1/4 HEX SOC HD CUP PT SET, OPTIONAL

1шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 X 1 WOODRUFF B CLUTCH CUP, RETAINER

1шт.

30

402563R1

PINION

GEAR ASSY, DRIVE

1шт.

31

402566R1

BEARING ASSY

CLUTCH ASSY, SPRAG

1шт.

32

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SPRAG BORE

1шт.

33

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

34

402569R1

PLATE

CLUTCH BACKING

1шт.

35

NSS

NOT SOLD SEPARAT

- SEE PACKAGE 534936R92

1шт.

36

402572R1

PLATE

PISTON BACKING

1шт.

37

404104R1

SHAFT

TA COUNTER

1шт.

38

381486R1

SNAP RING,#187, 1.759", Ext

TA DRIVEN GEAR AND PUMP GEAR RETAINING

1шт.

39

404105R1

PINION

GEAR, TA DRIVEN -42T

1шт.

40

404106R1

GEAR

PUMP DRIVEN -27T

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

TA DRIVEN GEAR AND PUMP GEAR, RETAINING

1шт.

42

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8

1шт.

1502171C91

FIP KIT

PACKAGE, FIELD IMPROVEMENT AS REQUIRED, CONSISTS OF, NOT ILLUSTRATED

1шт.

531540R4

CAGE

ASSY., NOT ILLUSTRATED

1шт.

1502173C91

SHAFT ASSY.

SHAFT ASSY, CLUTCH, NOT ILLUSTRATED

1шт.

71230C2

SHAFT

SHAFT, IPTO DRIVE, NOT ILLUSTRATED

1шт.
