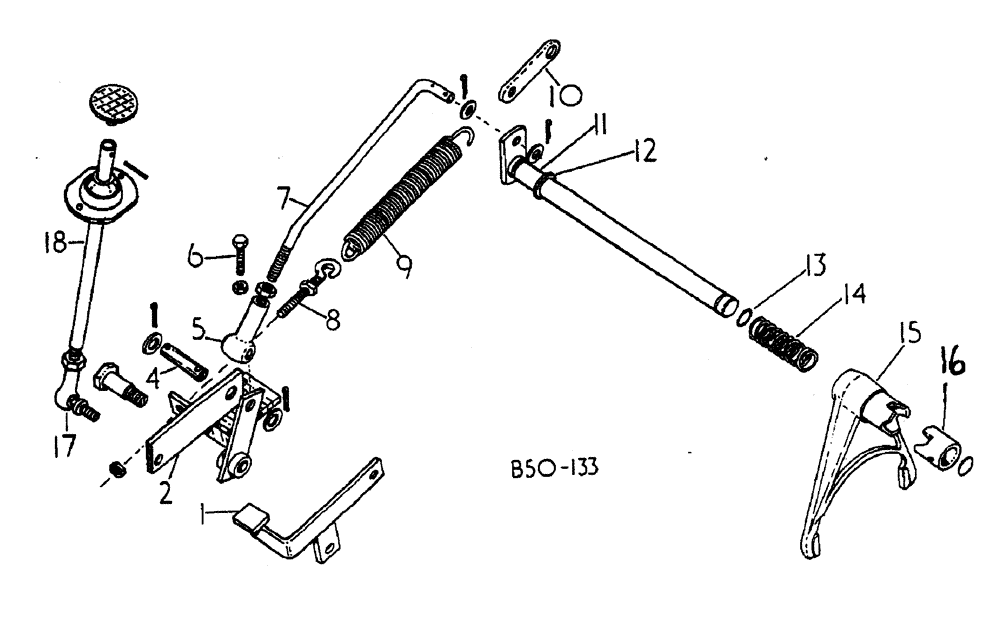

Запчасти Case IH 884 (07-028) - DIFFERENTIAL LOCK - SUPER DE-LUXE CAB (04) - Drive Train

1

3123910R1

STOP

DIFF LOCK PEDAL

1шт.

2

3123907R1

LEVER ASSY.

DIFF LOCK

1шт.

3

527885R1

BOLT

BOLT, DIFF LOCK PEDAL PIVOT

1шт.

4

3123908R1

PIN

DIFF LOCK, INCLUDES: WASHERS AND PINS

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

5

527880R1

END

DIFF LOCK PEDAL RETURN

1шт.

6

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Includes Nut

1шт.

109084

NUT,1/4"-20, G5

1шт.

7

527879R1

ROD

DIFF LOCK PEDAL, INCLUDES: NUT, WASHERS AND PINS

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

8

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE PEDAL RETURN SPRING, INCLUDES: NUTS

1шт.

102635

NUT,3/8"-16, G5

2шт.

9

3121849R1

SPRING

DIFF LOCK PEDAL RETURN

1шт.

10

3123909R1

PLATE

DIFF LOCK SPRING

1шт.

11

527871R1

SHAFT ASSY.

DIFF LOCK UP TO SERIAL NO 2155 AND H85/3028

1шт.

11

1500384C1

SHAFT ASSY.

DIFF LOCK, INCLUDES: PINS AND WASHER

1шт.

1500388C2

PIN

CAM ACTUATING

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

25/32 X 1-1/4 166A FLAT SERIAL NO 2156 AND H85/3029 UP

1шт.

12

551658R1

WASHER

25/32 X 1-1/4 X 22 GA

1шт.

12

Q3501

WASHER

23/32 X 1-1/4 X 16 GA AS REQUIRED

1шт.

13

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

14

527828R1

SPRING, DIFF LOCK FORK ACTUATING

1шт.

15

527874R3

FORK

ASSY, DIFF LOCK SHAFT UP TO SERIAL NO 2155 AND H85/3028

1шт.

15

1500386C1

FORK

ASSY, DIFF LOCK SHAFT SERIAL NO 2156 AND H85/3029 UP

1шт.

16

527877R1

CAM

DIFF LOCK SHAFT, INCLUDES: PIN

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

Up to serial no 2155 and H85/3028

1шт.

17

3125538R1

JOINT

BALL

1шт.

18

3125537R1

PEDAL

SPARE PART DIFF LOCK

1шт.
