Запчасти Case IH 884 (07-020) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

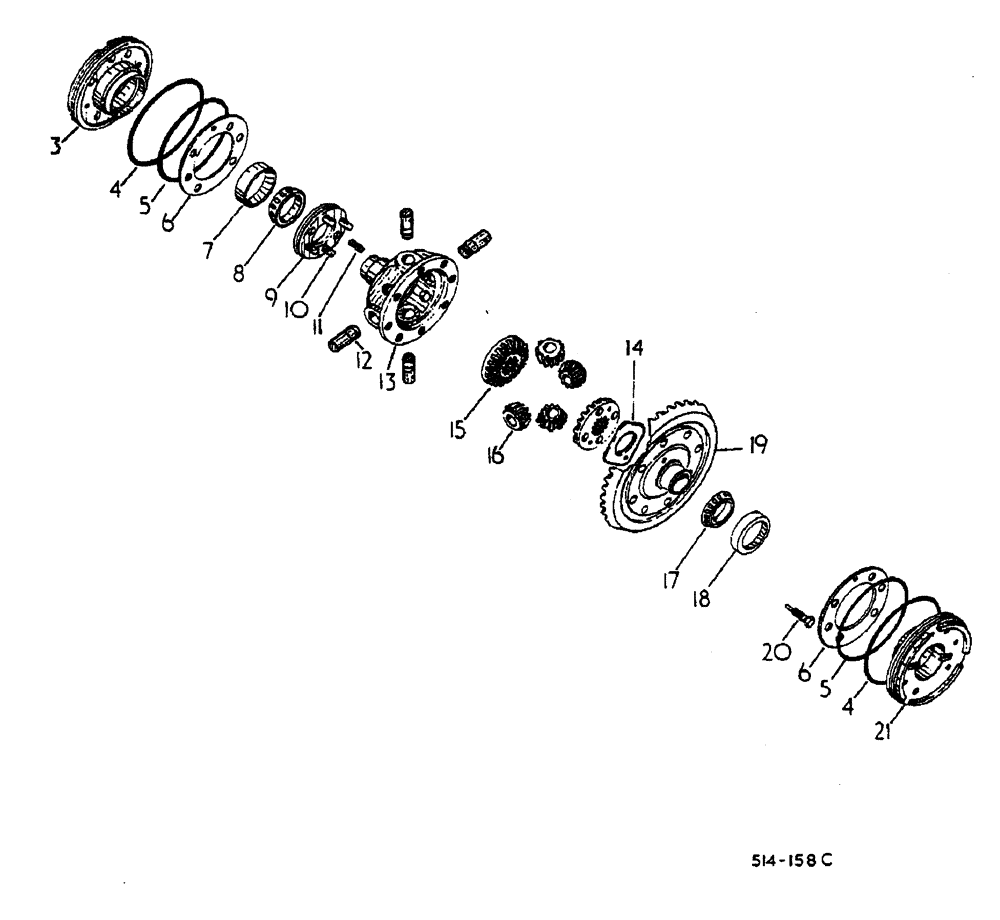

Схема запчастей Case IH 884 - (07-020) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train
5
11
7
14
19
8
18
4
15
9
10
4
20
12
3
6
17
6
21
5
13
16

Артикул

Название

Примечание

Количество

1

NOT APPLICABLE

1шт.

2

NOT APPLICABLE

1шт.

3

399770R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG R H, INCLUDES: SCREWS

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 X 1-1/2 HEX HD CAP

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 X 8-1/2 X 1/8 DIFFERENTIAL BRG CARRIER

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 X 7-7/8 X 3/16 DIFFERENTIAL BRG CARRIER SEAL

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM, DIFFERENTIAL BRG CARRIER 003

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM, DIFFERENTIAL BRG CARRIER 007

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM, DIFFERENTIAL BRG CARRIER 012

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM, DIFFERENTIAL BRG CARRIER 0299 ORDER PACKAGE 65419C1

2шт.

7

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

DIFFERENTIAL -R H

1шт.

7

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

DIFFERENTIAL R H OPTIONAL

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING ASSY, DIFFERENTIAL CONE R H ORDER BEARING 105504H OR 402353R91

1шт.

9

399764R11

LOCKING RING

DIFFERENTIAL LOCK

1шт.

10

399765R1

PIN

COUPLING

4шт.

11

400867R1

SPRING

DIFFERENTIAL LOCK

2шт.

12

399804R1

PIN

DIFFERENTIAL PINION

4шт.

13

399763R1

PINION CARRIER

GEAR CARRIER DIFFERENTIAL

1шт.

14

399778R1

THRUST WASHER

DIFFERENTIAL BEVEL GEAR THRUST

1шт.

15

404336R1

PINION

GEAR, DIFFERENTIAL BEVEL 20T

2шт.

16

399776R1

PINION

GEAR, DIFFERENTIAL PINION 10T

4шт.

17

399766R91

ROLLER BEARING

ASSY, DIFFERENTIAL L H

1шт.

17

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

ASSY, DIFFERENTIAL L H OPTIONAL

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING, DIFFERENTIAL CUP L H ORDER BEARING 105502H OR 399766R91

1шт.

19

65779C1

GEAR, BEVEL

BEVEL GEAR SET, MATCHED -11/52 - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

GEAR

1шт.

NSS

NOT SOLD SEPARAT

SHAFT, STANDARD MACHINES

1шт.

19

984505C2

SHAFT

SET, BEVEL GEARS MATCHED 12/53T - 4 WHEEL DRIVE - SEE FRONT DRIVE P T O

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 X 2-1/8 DOWEL, INCLUDES: BOLT 1-1/2 X 1/2 GRADE B

4шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE B

4шт.

21

399769R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG L H, INCLUDES: BOLT

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE B

4шт.

65419C1

BEARING CARRIER

PACKAGE, DIFFERENTIAL BRG CARRIER SHIM SERVICE AS REQUIRED, NOT ILLUSTRATED

2шт.

Выбрано товаров: 33
